Fire-teK BD 917 Insulation

Fire-teK BD 917 Insulation

Verified by manufacturer 1 month ago

Knauf Insulation Ltd

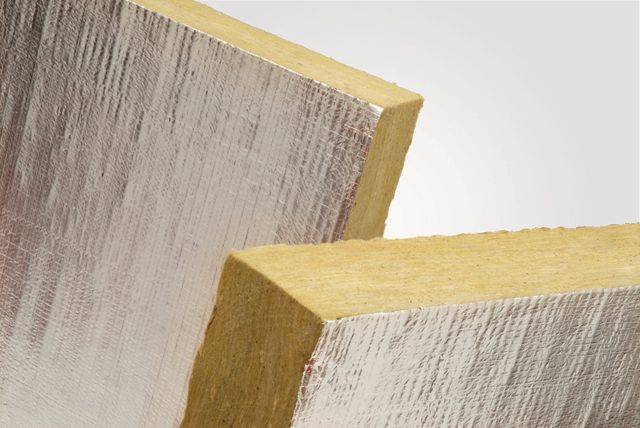

Fire-teK BD 917 is a rigid Rock Mineral Wool slab reinforced with an aluminium foil facing to one side, for use in the fire protection of HVAC steel ductwork for up to 120 minutes.

Jump to:
+44 (0)1744 766 666 www.knaufinsulation.co.uk

Application

Fire-teK BD 917 is a rigid Rock Mineral Wool slab reinforced with an aluminium foil facing to one side, for use in the fire protection of HVAC steel ductwork for up to 120 minutes.

Description

Fire-teK BD 917 is a rigid Rock Mineral Wool slab reinforced with an aluminium foil facing to one side, for use in the fire protection of HVAC steel ductwork for up to 120 minutes.


Features and benefits:


  • Has a melting point in excess of 1000°C providing excellent levels of fire protection.
  • Applied in a single thickness, removing the need for multi-layer applications, and provides assurance of a uniform thickness and allows for easy verification of correct installation on site.
  • Slab is faced with a reinforced aluminium foil, making it suitable for applications above clean rooms, within air plenums or for aesthetic purposes.
  • Fast and simple fixing system of welded pins and square edge butt joints, requiring no special cuts, drilling or sub-frames so the slabs are fast and easy to install.
  • A+ generic BRE Green Guide rating.


Durability

Fire-teK BD 917 is odourless, rot proof, non-hygroscopic, does not sustain vermin and will not encourage the growth of fungi, mould or bacteria.


Application

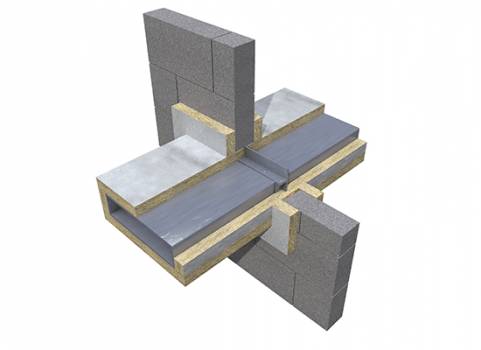

Fire-teK BD 917 is fully tested and certified to provide up to 2 hours fire protection to HVAC steel ductwork and up to 60 minutes for kitchen extract ducts. It can be used in horizontal ducts, vertical ducts, ducts passing through compartment walls and floors and kitchen extracts. Fire-teK BD 917 is suitable for applications above clean rooms, within air plenums or for aesthetic purposes.


Standards

Fire-teK BD 917 is manufactured in accordance with BS EN 13162, EN 50001 Energy Management Systems, OHSAS 18001 Occupational Health and Safety Management Systems, ISO 14001 Environmental Management Systems, and ISO 9001Quality Management Systems, as certified by Bureau Veritas.


Environmental

Fire-teK BD 917 contains no ozone-depleting substances or greenhouse gases. For further environmental information consult the relevant Environmental Product Declaration, available on our website.


Moisture resistance

Fire-teK BD 917 is non-wicking when tested in accordance with BS 2972:1989 Section 12. When exposed to 90% relative humidity and 20°C Fire-teK BD 917 absorbs less than 0.004% of moisture.


Acoustic performance

Fire-teK BD 917 will provide effective noise control and reduce noise breakout from ducts, the actual performance varies with insulation thickness and surface finish.


Handling and storage

Fire-teK BD 917 is easy to handle and install, being lightweight and easily cut to size, where necessary. Fire-teK BD 917 is supplied in polythene packs which are designed for short term protection only. For longer term protection on site, the product should either be stored indoors, or under cover and off the ground. Fire-teK BD 917 should not be left permanently exposed to the elements.

General information

Color

Silver

Brown

Finish

Aluminium

Material

Rock fibre mineral wool

Rock mineral wool.

Shape

Rectangle

Length

1200 mm

Width

600 mm

Uniclass

Pr_80_77_76_54 Mineral wool pipe section insulationPrimary
Pr_25_57_06/310 Insulation products generally
Pr_25_80_81_51 Mineral wool fire-stopping
Pr_25_57_06_56 Mineral wool slab insulation
Pr_25_31_48_34 Granular mineral wool insulation
Pr_25_57_06_53 Mineral wool insulation

CAWS

H42/240 Durability

H42/240 Durability

H92/495 Durability

F42/250 Durability

H13/440 Durability

H11/440 Durability

F42/250 Durability

B91/220 Durability

B15/245 Durability

B14/245 Durability

B13/245 Durability

B11/245 Durability

H90/660 Attaching insulation

P12/66 Installing mineral wool batts

J42/425 Mineral wool (MW) insulation

J41/425 Mineral wool (MW) insulation

K10/505 Installing mineral wool insulation

null Mineral wool insulation boards

null Mineral wool insulation boards

null Mineral wool insulation boards

K10/85 mineral wool insulation

J31/334 Mineral wool insulation

J21/425 Mineral wool insulation

null Mineral wool insulation

H75/206 Fire performance of insulation

H74/206 Fire performance of insulation

H73/206 Fire performance of insulation

H31/208 Fire performance of insulation

H30/184 Fire performance of insulation

K11/54 Fire protection board

K11/885 Fire protection board

P10/440 Fire protection

K45/50 Insulation

K40/55 Insulation

K45/425 Insulation

K40/285 Insulation

J21/230 Insulation

P12/40 Mineral wool rigid batts

P12/360 Mineral wool rigid batts

Specification data - Mineral wool pipe section insulation

Standard

BS 476.

Reaction to fire classification

Non-combustible to BS 476:Part 4:1970 (1984), Class 1 Surface Spread of Flame to BS 476: Part 7:1997

Insulation thickness (minimum)

45mm

Vapour barrier

-

Material

Rock Mineral Wool

Product Reference

Fire-teK BD 917 (formerly RockSilk® Pyroduct Slab)

Thickness

45 mm.

90 mm.

Facing

Aluminium foil facing.

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
