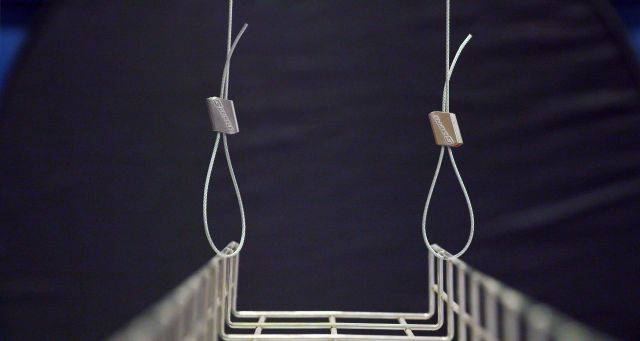

Fire rated stainless steel wire suspension hangers.
Fire rated stainless steel hangers used to suspend a variety of heating, ventilation and air conditioning (HVAC), mechanical and electrical services in fire rated applications.
Features and benefits:
- Fire rated - BRE tested to F120 to the temperatures associated with BS 476-20/ DIN 4102-2 2.
- Stainless steel housing and springs are corrosion and fire-resistant.
- Ceramic rollers provide extra strength and corrosion resistance.
- Aesthetically discreet and lightweight.
- Available in two sizes with ambient load ratings of 45 kg and 90 kg.
- Supplied as a ready-to-use kit.
| Material | Housing: Stainless steel, grade 1.4310 (316L) Roller: Sintox FA Spring: Stainless steel, grade 1.4310 (302) End cap: Polypropylene CP UV-stabilized |
| Uniclass 2015 |
| Product Reference | Fire Rated Hanger |
| Size (l x h x w) | 17.4 x 24.2 x 8 mm45 kg (at 5:1 safety factor) safe working load. 19 x 27.7 x 8 mm90 kg (at 5:1 safety factor) safe working load. |
| End fixings | Insert requirement, many options available, consult manufacturer's literature for information. |
| Wire length | 1 m2 m3 m4 m5 m6 m7 m8 m9 m10 m10 m +Insert requirements. |
| Accessories | Insert requirements, many options available, consult manufacturer's literature for information. |
| Standard product features | Material:
Wire rope thickness: 1.5 mm. Fire rating (to BS 476-20/ DIN 4102-2): BRE tested to F120 (two hours). |
- F120 fire tested to BS 476-20/ DIN 4102-2 (two hours)
- Lloyds: Certified
