FIRETEX® Platinum-30
A solvent and Halogen-free, 100% solids, two pack, modified epoxy based intumescent fire protection coating.

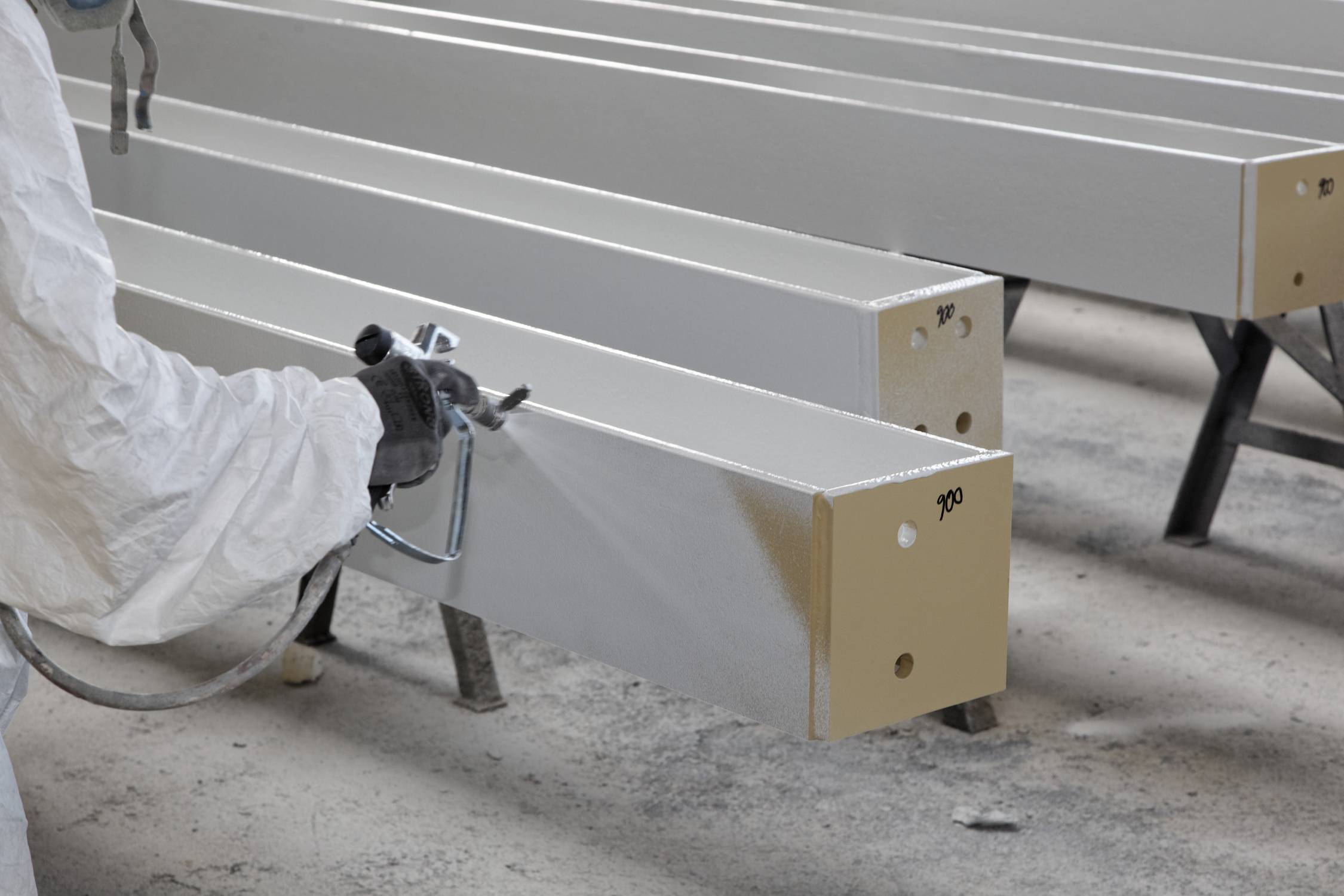

Applied directly on to blast cleaned steel surfaces by airless spray.
A solvent and halogen-free, 100% solids, two pack, modified epoxy based intumescent fire protection coating for internally or externally exposed structural steel, where it provides highest durability and combined corrosion protection (up to ISO 12944, corrosivity category C5) and fire protection (up to R120).
Features and benefits:
Color | Grey |
Finish | Gloss |
Material | Epoxy |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | M61/150 Off-site coating to unprimed steel M61/160 Off-site coating to primed steel M61/170 Off-site coating to galvanized steel G10/640 Shop painting G10/660 Shop plus site painting |
Composition | Epoxy-borne. |
Colour | Light grey. |
Flash point | >101°C (base and hardener). |
Density | 1.3 kg/L. |
Application temperature | 10–40°C. |
Abrasion resistance | To ISO 5470-1, ~65 mg/ 1000 R. |
CompressiveStrength | To ISO 604, ~45 MPa. |
TensileStrength | To ISO 527-2, ~10 MPa. |
Adhesion strength | To EN ISO 4624, ~10 N/mm². |
Coverage | 0.77 m²/kg will cover 1.00 m²/L. Guidance for specification option: This figure makes no allowance for surface profile, uneven application, overspray or losses in containers and equipment. |
Drying time | Eight hours to touch (at 20°C); 24 hours to handle (at 20°C). |
Fire resistance | R30. |
