FINO Urinal
Verified by manufacturer 25 days ago
Black rear inlet - 135710BK
Black rear inlet - 135710BK
Wall-hung individual rimless urinal.
Application
Wall-hung individual rimless urinal suitable for public and commercial washrooms.
Description
Wall-hung individual rimless urinal.
Features and benefits:
- Compatible with all standard frame systems on the market.
- Bacteriostatic 304 stainless steel.
- Stainless steel thickness: 1.2mm.
- Recessed or exposed horizontal waste outlet.
- Concealed trap.
- Quick and easy to install from the front thanks to a stainless steel mounting frame.
- Supplied with a 1½" P trap. Supplied with fixing elements.
- CE marked. Complies with European standard EN 13407 for a 2-litre flush.
- Weight: 3.5kg.
- 30-year warranty.
General information
Color | Black Silver |
Finish | Matt Polished Satin |
Material | Stainless steel |
Length | 280 mm |
Width | 290 mm |
Height | 420 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | N13/316 Urinals and flushing valves N13/315 Urinals and auto-flushing cisterns N13/15 Urinals and cisterns |
SKU Code | 135710BK, 135710, 135110 |
Specification data - Wall-hung urinals
Classification data | |
Standards | To BS EN 13407. |
Form | Bowl. |
Materials | |
Body | Stainless steel. |
Finish and colour | Matte black Teflon® finish. |
Water supply, overflow and waste holes | |
Water supply | Rear water inlet (recessed). |
Waste | Recessed horizontal or exposed waste outlet. |
Sustainability data
Country of product manufacture | Portugal |
Material | Stainless steel |
Recyclability | Recyclable |
Literature

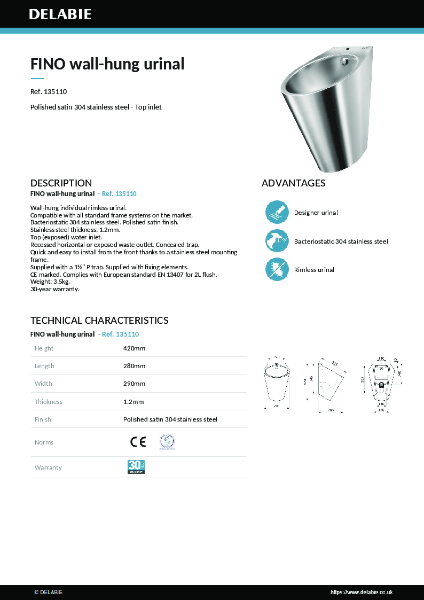

FINO wall-hung urinal 135110 data sheet
FINO wall-hung urinal 135710 data sheet

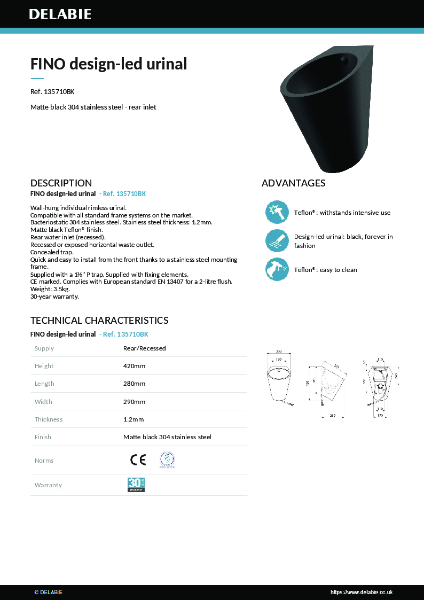

FINO wall-hung black urinal 135710BK data sheet
