Fig. 371 Drain Taps
Verified by manufacturer 14 days ago
DN25
DN25

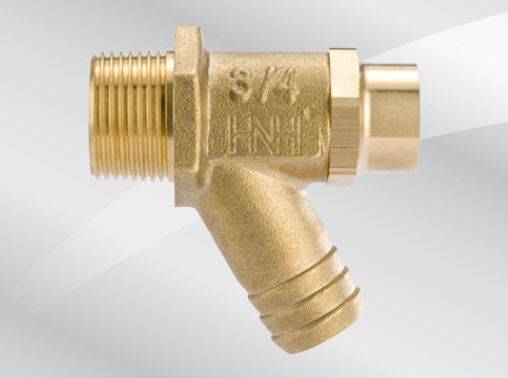

DZR brass draining tap.
Application
- Suitable for use on hot and cold water up to 16 bar, at temperatures up to 110°C.
Description
DZR brass draining tap.
Features and benefits:
- Integrated shroud gives a tamper resistant design.
- DZR Brass draining taps are suitable for use on hot and cold water up to 16 bar, at temperatures up to 110°C.
- Enables system to be drained without removing pipework.
- The inlet is a threaded taper male connection to BS EN 10226-2.
- The outlet is ribbed for hose connection.
- WRAS Approved up to 85°C.
General information
Color | Yellow Guidance for specification option: Body. |
Material | Brass Guidance for specification option: Body, stem, bonnet, disc holder and nut. |
Shape | Manufacturer guidanceY-type pattern ball valve. |
Uniclass | |
CAWS | S90/640 Draining taps S90/640 Draining taps |
Product range |
Specification data - Draining taps
Size | DN25. |
Arrangement | Type 1.Guidance for specification option: Maximum temperature 10°C, PN16. WRAS Approved up to 85°C. |
Material | Body: DZR brass CW602N, Stem, bonnet, disc holder and nut: Brass CW614N, Rubber seat: EPDM EP80, Stem packing: EPDM EP70.Manufacturer guidance
|
Connections | Threaded taper male inlet connection to BS EN 10226-1, ribbed outlet for hose connection. |
Third party certification: | WRAS Approved. |
PressureRange | Temperature: +110°C maximum: 16 bar. |
Dimensions | 74.8 x 7.0 x 9.5 x 11.3 x 82.3 x 73.7 mm. Manufacturer guidanceNominal A x B x C x D x E x F, where E = open and F = closed. |
Weight | 0.59 kg. |

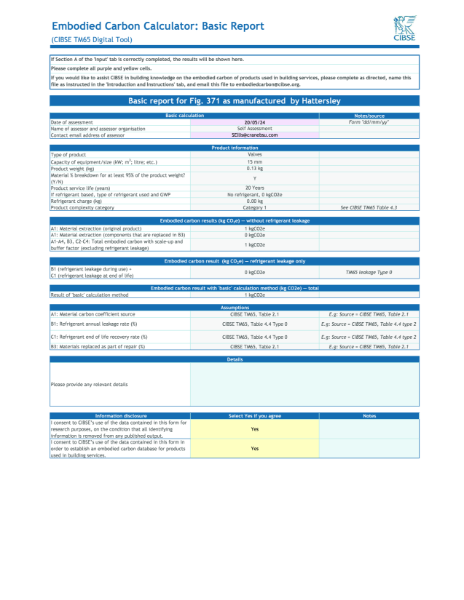

Sustainability data
Material | Brass Guidance for specification option: Body, stem, bonnet, disc holder and nut. |
Recyclability | Recycle locally |
Expected Life | 20 year |
