Description

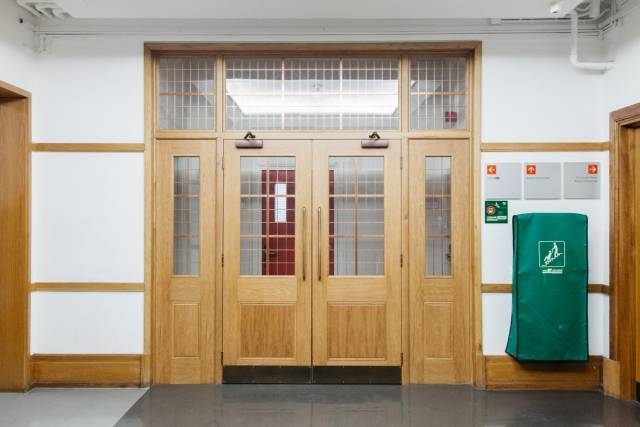

Door leaves constructed from 44 or 54 mm high performance multi-layer particleboard. The density and finish of the product permits the manufacture of door leaves without perimeter framing and additional sub-facing materials. Available as a doorset or door leaf only and can be partnered with Fields Wall Panelling for a fully coordinated design.

Features:

  • Available fire ratings: FD30, FD60 or non-fire rated.
  • Can be supplied with softwood, hardwood, MDF or steel frames depending on fire rating.
  • Cold smoke protection can be accommodated.
  • Certified by the Exova BM Trada Q-Mark Fire Door Manufacture scheme for fire doors if required.
  • Available as fully FSC certified doorset.

General information
Size

Insert requirements.

Finish

Clear lacquer

Factory painted

Final finish

Can be matt or high gloss as required.

Primed for onsite painting

Stain

Tinted lacquer

Features

Available fire ratings: FD30, FD60 or non-fire rated

Can be supplied with softwood, hardwood, MDF or steel frames depending on fire rating

Cold smoke protection can be accommodated

Certified by the Exova BM Trada Q-Mark Fire Door Manufacture scheme for fire doors if required

Available as fully FSC certified doorset

Uniclass 2015
Wood doorsets (Pr_30_59_24_97)Primary
Specification data - Wood doorsets
Product Reference

Fields Panel Doorset FD30

44 mm thickness.

Fields Panel Doorset FD60

54 mm thickness.

Fields Panel Doorset non-fire rated

Size

Insert requirements.

Glazing -
Type

Insert requirements.

Size

Insert requirements.

Shape

Insert requirements.

Facing

Bespoke stile and rail lay-on

To provide a traditional solid timber door appearance.

Laminate

PVC

Wood veneer

Book, slip or random matched and laid either vertically or horizontally.

Frame/ architrave

Hardwood

MDF

Softwood

Steel

Finish

Clear lacquer

Factory painted

Final finish

Can be matt or high gloss as required.

Primed for onsite painting

Stain

Tinted lacquer

Ironmongery

Insert requirements.

Standard product features

Size (maximum):

- Height:

  • FD30: 932 x 2979 mm.
  • FD60: 826 x 2294 mm.

- Width:

  • FD30: 1310 x 2135 mm.
  • FD60: 942 x 2042 mm.

Product Options

Performance:

  • Mechanical test severe duty: DD171.
  • Mechanical test severe duty Class 4: EN 947, EN 948, EN 949 and EN 950 (classified to BS EN 1192).
  • Mechanical test severe duty Class 8: BS EN 1191 (with classification according to EN 12400): completed 1 000 000 cycles (dependent on configuration).
  • Fire resistance test to BS 476-22 by Chiltern International Fire Ltd.

Glazing:

Fields Panel Doorsets are factory glazed, when specified using clear laminated fire resisting glass in conjunction with intumescent materials. The glass is retained using a purpose-made, pin-fixed, hardwood splayed and rebated cloak type or square section flush check glazing bead. The maximum permitted glazed area per leaf must not exceed 0.82 m² throughout the configuration range and is dependent on the fire rating. Aperture shape is unrestricted and may be in multiple or single paned form providing glazing is not less than 100 mm from the door leaf edges, not less than 100 mm from any door edge and not less than 80 mm between apertures.

Over panels:

One piece over panels not greater than the width of door leaf/ leaves are permitted in all configurations with a separating transom. A rebated or square interface between door leaf and over panel is also permitted without transom. Maximum allowed heights are:

  • Single leaves: 2000 mm.
  • Double leaves: 1500 mm.

Lipping:

All doors will be supplied with hardwood lippings, concealed or exposed and square, rounded or rebated. Doors will normally be supplied with lippings to both vertical and horizontal edges.

Ironmongery:

An extensive range of ironmongery is permitted for use.
