Fibergrate® Standard Moulded GRP Grating - Walkway Grating

Name: Fibergrate® Standard Moulded GRP Grating - Walkway Grating
Brand: Fibergrate Composite Structures
SKU: uVr9owvBLR72WieLdqLRDJ

Verified by manufacturer 3 days ago

FG03SD - 25 mm Moulded

Fibergrate Composite Structures

Glass fibre-reinforced plastic (GRP) moulded grating.

Jump to:

+44 (0) 191 402 1920 Website

Application

Glass fibre-reinforced plastic (GRP) moulded grating suitable for a range of applications for standard pedestrian traffic, including:

Walkways.
Gullies.
Trenches.
Cooling towers.
Overhead gantries.

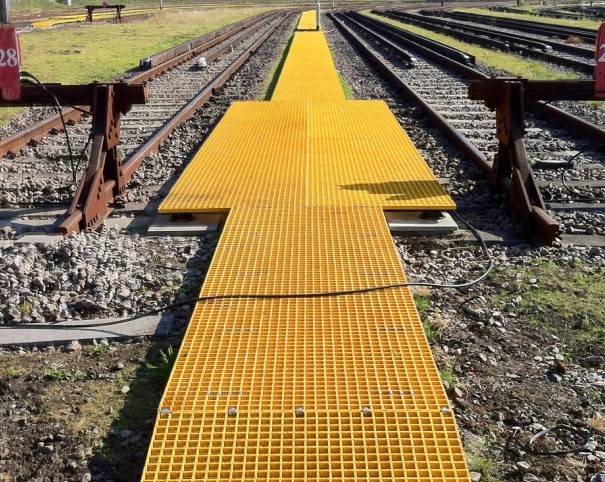

Railway crossing points.

Description

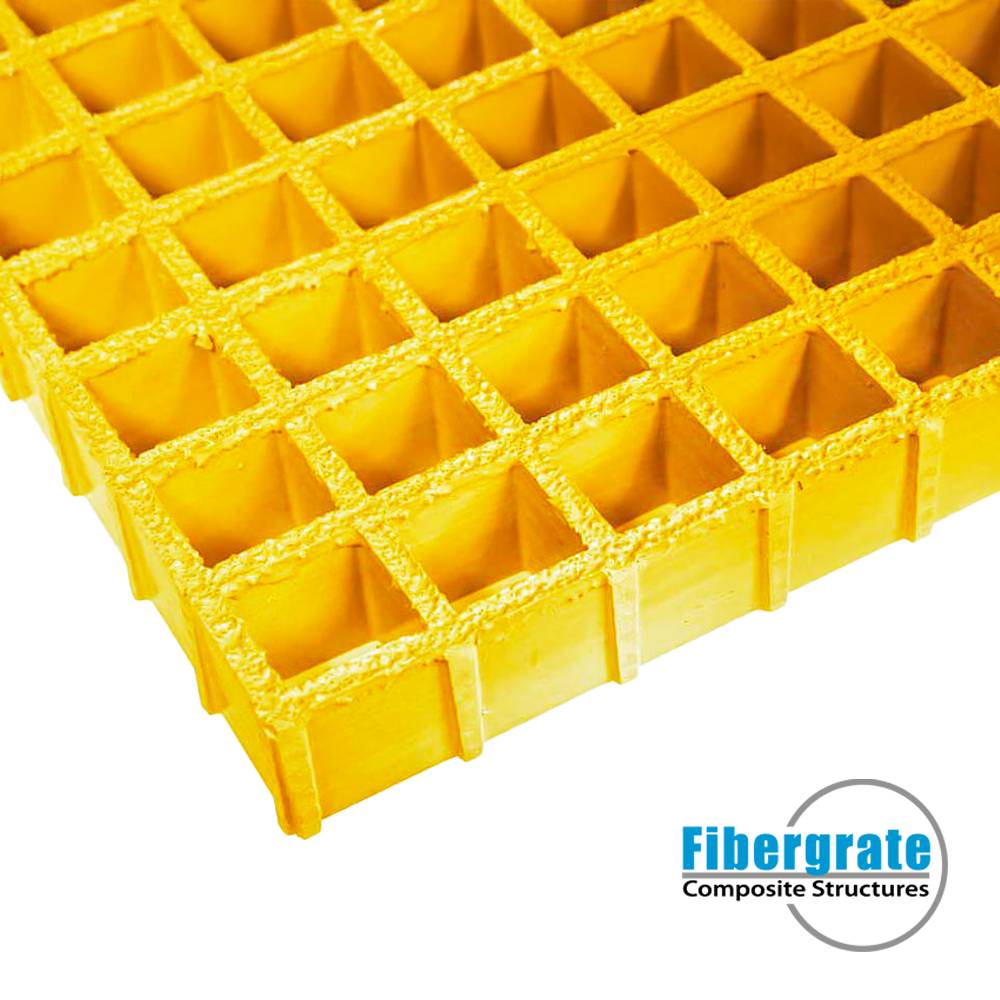

Glass fibre-reinforced plastic (GRP) moulded grating.

The Standard GRP Grit Top Grating is a high performance open mesh flooring system, made from high quality GRP. The grating is produced by weaving continuous glass fibres vertically and horizontally into a mould, creating an integral, one-piece panel which offers excellent corrosion resistance as well as bi-directional strength.

The grating is fire retardant, chemical and corrosion resistant and is suitable for a variety of applications from vertical building risers and cooling towers, to walkways and railway crossing points. If required, grating panels can be trimmed on site to suit using an industrial jigsaw and appropriate cutting blades.

Features and benefits:

Extremely durable.
Impact resistant.
Anti-slip surface.
Fire retardant - tested to BS 476-7.
Chemical resistance.
Lightweight.
Maintenance free.
Non-conductive.
Tested in accordance with BS 4592-0 and BS EN 124.
A wide range of special order gratings are available, consult manufacturer's literature for information.

General information

Color	Green Grey Yellow Other
Finish	Anti-slip Guidance for specification option: Standard grit top.
Material	Glass Reinforced Plastic (GRP) Composite Resin
Shape	Rectangle
Length	1988 mm 3016 mm 3660 mm Bespoke
Width	996 mm 1220 mm Bespoke
Height	25 mm 38 mm 50 mm
Warranty description	Three year

Uniclass	Pr_25_30_30_34 Glass fibre-reinforced plastics (GRP) moulded open mesh gratingsPrimary
CAWS	L30/45 Ramps/ walkways Q10/312 Footway gratings L30/460 Walkways

SKU Code	FG03SD

Specification data - Glass fibre-reinforced plastics (GRP) moulded open mesh gratings

Classification data
Description	GRP moulded grating.
Colour	Green. Guidance for specification option: RAL 6010. Grey. Guidance for specification option: RAL 7047. Yellow. Guidance for specification option: RAL 1003. Other. Guidance for specification option: Consult manufacturer and insert requirements. Any RAL or BS colour subject to extended lead time.
Size	-
Length x width	1988 x 996 mm. 3016 x 996 mm. 3660 x 1220 mm. Manufacturer guidance Can be cut to any size within this. Tolerances (including cut): +/- 7 mm width, length and diagonal.
Depth	25 mm. Manufacturer guidance Depth tolerances: +/- 1.5 mm.
Slip resistance value – water wet (minimum)	PTV of 65. Guidance for specification option: Slip resistance value – dry: PTV of 69.
Design	38 x 38 mm mesh. 70% open area. Guidance for specification option: Load bar thickness: 6.4 mm. Load bar centres: 38 mm. No. of bars per foot: 8.
Service temperature	-50 to +105°C.
Fixing	'M' clips and bolts. Other. Guidance for specification option: See manufacturer's literature for details.
Minimum loadbearing capacity	Manufacturer's standard. Guidance for specification option: Note 14 mm depth option does not support load. Dependent on design and size specified, consult manufacturer's literature for details.
Weight	12 kg/m².
Resin	Isophthalic (ISO) resin.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Manufacturing plant location	Newcastle upon Tyne, UK
Material	Glass Reinforced Plastic (GRP) Composite Resin
Recyclability	0
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
Expected Life	25 year Guidance for specification option: 25+ years (subject to traffic analysis).
