FES-H Cast-in channel - Anchor Channels

Verified by manufacturer 5 days ago

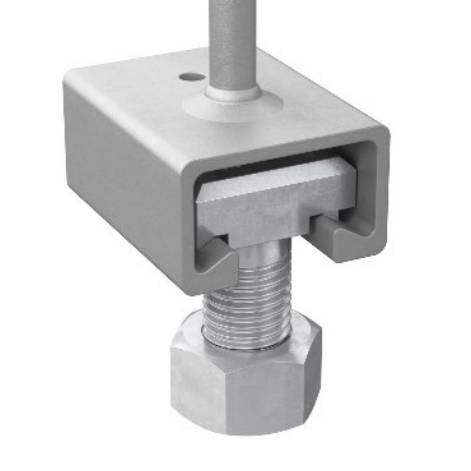

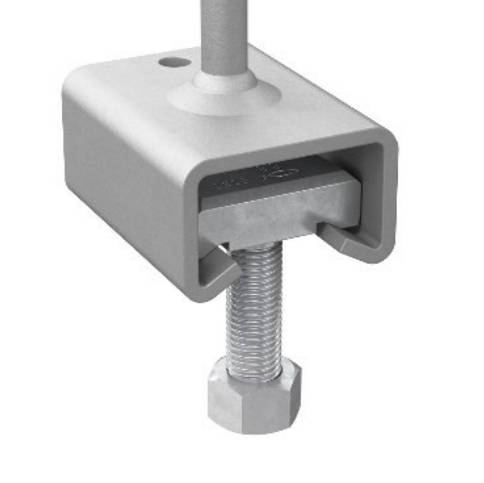

FES-H-40/22 anchor channel with FBC-40/22 bolts

Hot-rolled cast-in channels combining excellent load capacity with high safety and flexibility.

Jump to:

+44 (0)1491 827920 Website

Application

Suitable for applications in cracked and non-cracked concrete.
Suitable as a prepositioned fixing solution, capable of covering on-site tolerances.

Description

Hot-rolled cast-in channels combining excellent load capacity with high safety and flexibility.

Features and benefits:

Three channel sizes:
- 40 x 23.5 mm (anchor length: 68.5 mm);
- 50 x 30 mm (anchor length: 66.2 mm);
- 52.5 x 34 mm (anchor length: 123.5 mm).
Fundamental load capacity in longitudinal direction in combination with channel bolts FBC-N or two directional load capacity with FBC.
Suitable for applications in cracked and non-cracked concrete.
Suitable as a prepositioned fixing solution, capable of covering on-site tolerances.
Permanently adjustable fixing solution.

General information

Color	Silver
Finish	Natural
Material	Carbon steel
Shape	Other
Length	150 mm 170 mm 200 mm 250 mm 300 mm 350 mm 400 mm 550 mm 800 mm 1050 mm 1300 mm 1550 mm 1800 mm 2050 mm 2300 mm 3050 mm 6070 mm Show more
Width	50 mm 52.5 mm
Height	30 mm 34 mm Manufacturer guidance Channel only.

Uniclass	Pr_20_85_84_11 Carbon steel cast-in channelsPrimary
CAWS	E42/340 Channels and slots E42/340 Channels and slots

SKU Code	552485, 552486, 552487, 552488, 552489, 552490, 552492, 552493, 552494, 552495, 568213, 552497, 552498, 552499, 552500, 552501, 552502, 552503, 552504, 552505, 552506, 552469, 552470, 552471, 552472, 552473, 552474, 552475, 552476, 552477, 552478, 552479, 552480, 552481, 552482, 552483

Specification data - Carbon steel cast-in channels

Material	-
Designation	Steel grade: 8.8.
Finish	Manufacturer's standard.
Anchors	68.5 mm lugs welded to back of section. Manufacturer guidance Spacing and number dependent on length specified; see Length guidance below.
Bolts	-
Format	T-head.
Steel grade	Manufacturer's standard.
Thread diameter	Guidance for specification option: Insert requirements, M10–M16.

Length	150 mm. Guidance for specification option: Number of anchors: Two. Anchor spacing: 100 mm. 200 mm. Guidance for specification option: Number of anchors: Two. Anchor spacing: 150 mm. 250 mm. Guidance for specification option: Number of anchors: Two. Anchor spacing: 200 mm. 300 mm. Guidance for specification option: Number of anchors: Two. Anchor spacing: 250 mm. 350 mm. Guidance for specification option: Number of anchors: Three. Anchor spacing: 150 mm. 400 mm. Guidance for specification option: Number of anchors: Three. Anchor spacing: 175 mm. 550 mm. Guidance for specification option: Number of anchors: Three. Anchor spacing: 250 mm. 800 mm. Guidance for specification option: Number of anchors: Four. Anchor spacing: 250 mm. 1050 mm. Guidance for specification option: Number of anchors: Five. Anchor spacing: 250 mm. 1300 mm. Guidance for specification option: Number of anchors: Six. Anchor spacing: 250 mm. 1550 mm. Guidance for specification option: Number of anchors: Seven. Anchor spacing: 250 mm. 1800 mm. Guidance for specification option: Number of anchors: Eight. Anchor spacing: 250 mm. 2050 mm. Guidance for specification option: Number of anchors: Nine. Anchor spacing: 250 mm. 2300 mm. Guidance for specification option: Number of anchors: Ten. Anchor spacing: 250 mm. 3050 mm. Guidance for specification option: Number of anchors: 13. Anchor spacing: 250 mm. 6070 mm. Guidance for specification option: Number of anchors: 25. Anchor spacing: 250 mm. Show more
Dimensions	Embedment depth: effective: 90 mm; total: 92. Minimum thickness of concrete: 100 mm. Channel: 40 x 23.5 mm. Overhang: 25–35 mm. Manufacturer guidance See Length guidance for anchor spacing.
Bolts	FBC-40/22.
Third-party certification	European Technical Approval ETA-18/0862.

Sustainability data

Material	Carbon steel
