Description

A range of polyurethane lighting columns, available in eight styles.

Features:

  • Ferrocast® is an engineering grade polymer which does not rust or corrode, and will not chip and requires virtually no maintenance. Supplied with a two part polyurethane coating as standard.
  • The columns are Ferrocast®, cast around a steel core.
  • Each column has a decorative base housing.
  • Available in a full standard range of RAL colours.
  • A bespoke design service is available to create exact replicas of any design.
  • Lanterns are not included.
  • Part of the Ferrocast® range of street furniture.

General information
Finish

Gloss

Semi-gloss

Matt

Features

Ferrocast® is an engineering grade polymer which does not rust or corrode, and will not chip and requires virtually no maintenance. Supplied with a two part polyurethane coating as standard

The columns are Ferrocast®, cast around a steel core

Each column has a decorative base housing

Available in a full standard range of RAL colours

A bespoke design service is available to create exact replicas of any design

Lanterns are not included

Part of the Ferrocast® range of street furniture

Uniclass 2015
Steel lighting columns (Pr_80_77_48_80)Primary
Specification data - Steel lighting columns
Product Reference

Ferrocast® Buckingham Lighting Column

Ferrocast® Dewsbury Lighting Column

Ferrocast® Georgian Lighting Column

Ferrocast® Hanover Lighting Column

Ferrocast® Jersey Lighting Column

Ferrocast® Merrick Lighting Column

Ferrocast® Sandringham Lighting Column

Ferrocast® Somerset Lighting Column

Colour

RAL ___

Reflective finish ___

Finish

Gloss

Semi-gloss

Matt

Contrasting gold banding

Required

Not required

Standard product features

Fixing:

  • Ground (root) fixed: The columns are designed to be situated directly into a C30, medium slump grade concrete mix.

Product Options

Product reference:

- Ferrocast® Buckingham:

  • Plain column with banded base housing.
  • Column length: 4400 mm.
  • Base housing: 1340 mm.
  • Base diameter: 275 mm.

- Ferrocast® Dewsbury:

  • Banded column with banded base housing.
  • Column length: 8000 mm.
  • Base housing: 1185 mm.
  • Base diameter: 260 mm.

- Ferrocast® Georgian:

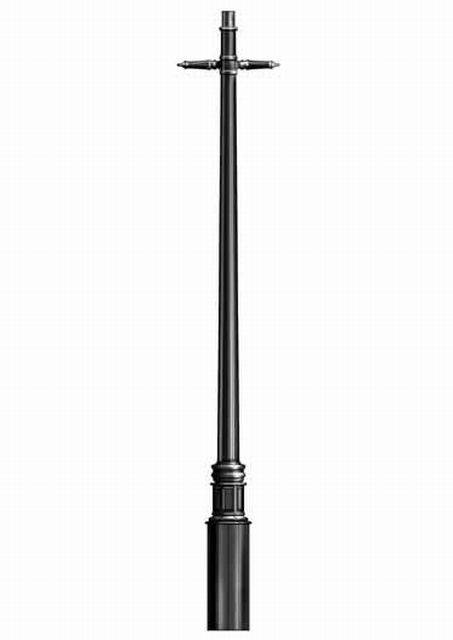

  • Tapered column with cross tee and banded base housing.
  • Column length: 3830 mm.
  • Base housing: 1055 mm.
  • Base diameter: 256 mm.

- Ferrocast® Hanover:

  • Banded column with banded base housing.
  • Column length: 5500 mm.
  • Base housing: 1185 mm.
  • Base diameter: 256 mm.

- Ferrocast® Jersey:

  • Banded column with banded base housing.
  • Column length: 5000 mm.
  • Base housing: 1275 mm.
  • Base diameter: 215 mm.

- Ferrocast® Merrick:

  • Tapered column with square base housing.
  • Column length: 4600 mm.
  • Base housing: 930 mm.
  • Dimension across base corners: 275 mm.

- Ferrocast® Sandringham:

  • Banded column with cross tee and banded base housing.
  • Column length: 4100 mm.
  • Base housing: 990 mm.
  • Base diameter: 290 mm.

- Ferrocast® Somerset:

  • Tapered fluted column with banded base housing.
  • Column length: 3100 mm.
  • Base housing: 915 mm.
  • Base diameter: 225 mm.

Colour:

- Ferrocast Gloss colours:

  • RAL 1001, Beige/ RAL 1003, Signal Yellow/ RAL 1006, Maize Yellow/ RAL 1011, Brown Beige/ RAL 1013, Oyster White/ RAL 1015, Light Ivory/ RAL 1016, Sulphur Yellow/ RAL 1018, Zinc Yellow/ RAL 1021, Rape Yellow/ RAL 1028, Melon Yellow/ RAL 2000, Yellow Orange/ RAL 2002, Vermilion/ RAL 2004, Pure Orange/ RAL 2011, Deep Orange/ RAL 3000, Flame Red/ RAL 3003, Ruby Red/ RAL 3004, Purple Red/ RAL 3011, Brown Red/ RAL 3016, Coral Red/ RAL 3018, Strawberry Red/ RAL 3020, Traffic Red/ RAL 4003, Heather Violet/ RAL 4004, Claret Violet/ RAL 4008, Signal Violet/ RAL 5000, Violet Blue/ RAL 5002, Ultramarine Blue/ RAL 5003, Sapphire Blue/ RAL 5005, Signal Blue/ RAL 5010, Gentian Blue/ RAL 5011, Steel Blue/ RAL 5013, Cobalt Blue/ RAL 5015, Sky Blue/ RAL 5022, Night Blue/ RAL 6000, Patina Green/ RAL 6002, Leaf Green/ RAL 6005, Moss Green/ RAL 6011, Reseda Green/ RAL 6014, Reed Green/ RAL 6018, Yellow Green/ RAL 6021, Pale Green/ RAL 6028, Pine Green/ RAL 6029, Mint Green/ RAL 6034, Pastel Turquoise/ RAL 7000, Squirrel Grey/ RAL 7001, Silver Grey/ RAL 7005, Mouse Grey/ RAL 7011, Iron Grey/ RAL 7012, Basalt Grey/ RAL 7016, Anthracite Grey/ RAL 7023, Concrete Grey/ RAL 7031, Blue Grey/ RAL 7032, Pebble Grey/ RAL 7035, Light Grey/ RAL 7040, Window Grey/ RAL 7042, Traffic Grey A/ RAL 8001, Ochre Brown/ RAL 8007, Fawn Brown/ RAL 8011, Nut Brown/ RAL 8014, Sepia Brown/ RAL 8016, Mahogany Brown/ RAL 8019, Grey Brown/ RAL 8028, Terra Brown/ RAL 9005, Jet Black/ RAL 9006, White Aluminium/ RAL 9007, Grey Aluminium/ RAL 9010, Pure White/ RAL 9016, Traffic White.

- Ferrocast Semi-gloss colours:

  • RAL 1001, Beige/ RAL 1013, Oyster White/ RAL 1015, Light Ivory/ RAL 2002, Vermilion/ RAL 3003, Ruby Red/ RAL 3020, Traffic Red/ RAL 4008, Signal Violet/ RAL 5002, Ultramarine Blue/ RAL 5003, Sapphire Blue/ RAL 5010, Gentian Blue/ RAL 5013, Cobalt Blue/ RAL 5015, Sky Blue/ RAL 6005, Moss Green/ RAL 7001, Silver Grey/ RAL 7016, Anthracite Grey/ RAL 7031, Blue Grey/ RAL 7032, Pebble Grey/ RAL 7035, Light Grey/ RAL 7042, Traffic Grey A/ RAL 8014, Sepia Brown/ RAL 9010, Pure White/ RAL 9016, Traffic White.

- Ferrocast Matt colours:

  • RAL 1003, Signal Yellow/ RAL 1006, Maize Yellow/ RAL 1013, Oyster White/ RAL 1015, Light Ivory/ RAL 1018, Zinc Yellow/ RAL 1021, Rape Yellow/ RAL 1028, Melon Yellow/ RAL 2000, Yellow Orange/ RAL 2002, Vermilion/ RAL 2004, Pure Orange/ RAL 3000, Flame Red/ RAL 3003, Ruby Red/ RAL 3004, Purple Red/ RAL 3020, Traffic Red/ RAL 4008, Signal Violet/ RAL 5002, Ultramarine Blue/ RAL 5003, Sapphire Blue/ RAL 5004, Black Blue/ RAL 5010, Gentian Blue/ RAL 5011, Steel Blue/ RAL 5013, Cobalt Blue/ RAL 5015, Sky Blue/ RAL 5022, Night Blue/ RAL 6000, Patina Green/ RAL 6002, Leaf Green/ RAL 6005, Moss Green/ RAL 6018, Yellow Green/ RAL 7000, Squirrel Grey/ RAL 7001, Silver Grey/ RAL 7005, Mouse Grey/ RAL 7011, Iron Grey/ RAL 7012, Basalt Grey/ RAL 7016, Anthracite Grey/ RAL 7023, Concrete Grey/ RAL 7031, Blue Grey/ RAL 7032, Pebble Grey/ RAL 7035, Light Grey/ RAL 7042, Traffic Grey A/ RAL 8011, Nut Brown/ RAL 8014, Sepia Brown/ RAL 8019, Grey Brown/ RAL 8028, Terra Brown/ RAL 9010, Pure White/ RAL 9016, Traffic White.
