Verified by manufacturer 4 months ago

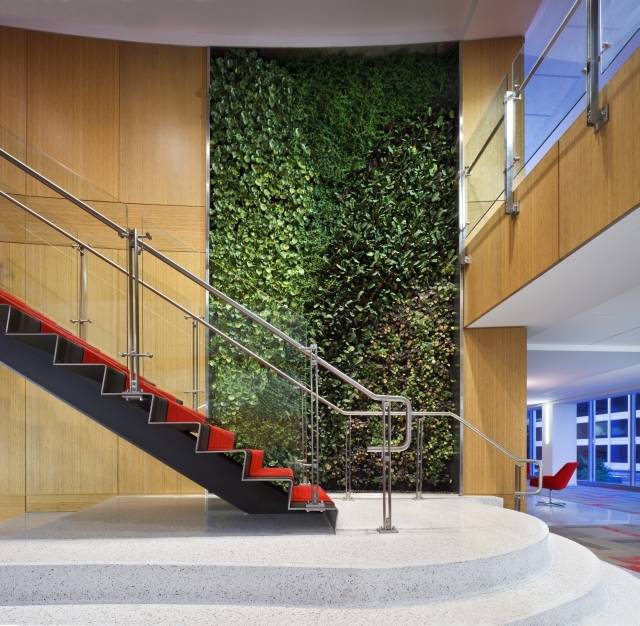

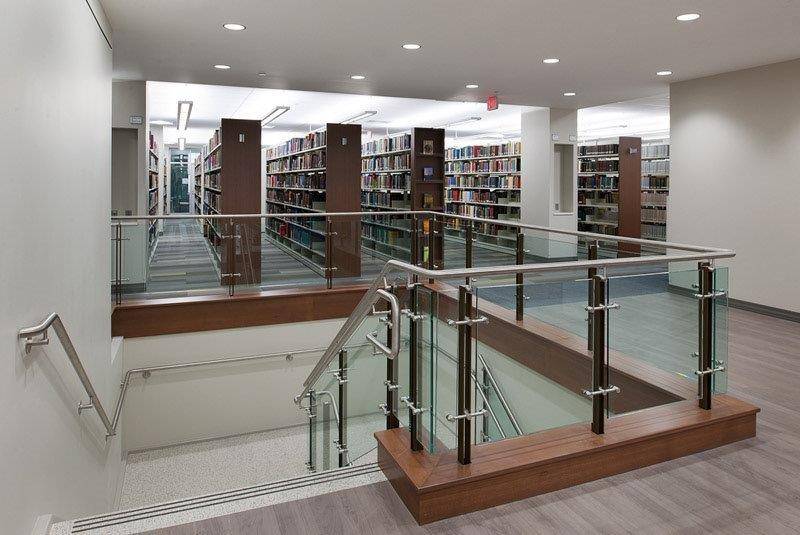

Pre-engineered, modular steel and stainless steel double slat post balustrade system suitable for interior and exterior applications.
Pre-engineered, modular steel and stainless steel double slat post balustrade system suitable for interior and exterior applications.
Features and benefits:
Finish | Satin Guidance for specification option: All stainless steel supplied in a brushed (240-grain) satin finish. |
Material | Stainless steel Guidance for specification option:
Timber Guidance for specification option:
Steel |
Length | Bespoke |
Warranty description | 25 year Guidance for specification option: Guarantee. |
Uniclass | |
CAWS | L30/55 Proprietary balustrades L30/560 Proprietary balustrades |
Newels | |
Material | 1.4307 (304L) grade stainless steel - internal.1.4404 (316L) grade stainless steel - external. |
Accessories | Not required.LED lighting inserts.Guidance for specification option: Consult manufacturer and insert requirements. |
Infills | CIRCUM™ cable infill*.Guidance for specification option: *Interior only. Glass panel fully tempered*.Guidance for specification option: *Interior only. Resin panel*.Guidance for specification option:
Stainless steel infill rods - 10 mm.Stainless steel infill rods - 16 mm.Guidance for specification option: 16 mm diameter, attached to post with 26 mm diameter, adjustable stainless steel clamping fixture between flat bars of the post. Stainless steel panel - perforated.Guidance for specification option:
Stainless steel picket.Guidance for specification option: Horizontal supports: 16 mm diameter connected to 10 mm vertical rods; Attached to post with stainless steel clamping fixture; Gaps between pickets and adjacent posts to be equalized depending on rail length and site conditions. |
Rails | |
Handrails | 1.4307 (304L) grade stainless steel - internal.1.4404 (316L) grade stainless steel - external.Solid wood/Stainless steel. |
Base rails | 80 mm diameter stainless steel rosette. |
Fixing to parent structure | Core mounted spigot fixing with cover plate.Side mounted to steel or concrete with plate fixing.Guidance for specification option:
Top mounted to steel or concrete with plate fixing.Guidance for specification option:
Top mounted to steel with welded fixing.Guidance for specification option: Welded fastener to be installed by factory approved welder. |
Layout | Guidance for specification option: Insert details, drawing reference number or similar. |
Loading requirement | 0.36 kN/m. 0.74 kN/m. 1.5 kN/m. 3.0 kN/m. |
Total height | Guidance for specification option: 864–1067 mm; insert requirement. |
Top rail | Manufacturer guidance
|
Post | 50 x 50 mm overall (open pair of bars, each 50 x 6 mm). Guidance for specification option:
|
