Fencing Rail Range
Description

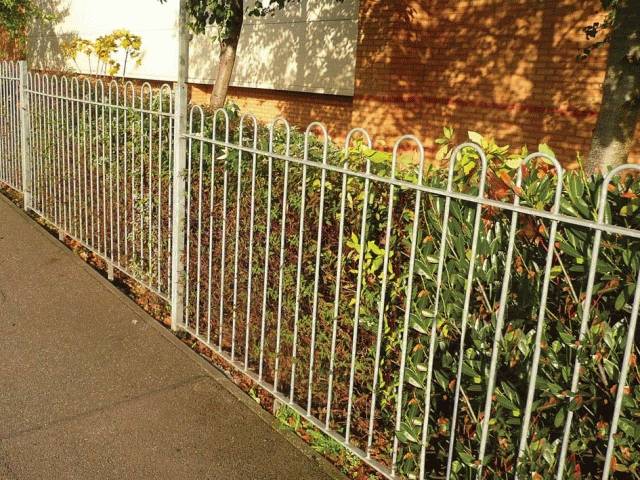

AUTOPA’s rage of fencing is ideal for marking paths and perimeters. The Flat Top Fencing Rail and Bow Top Fencing Rail are perfect for residential and commercial properties. Anti-trap Bow Top Fencing is BS EN 1176-1 compliant and is ideal for play areas and parks.

Features:

  • Available at 1000 mm and 1200 mm height above ground.
  • 12 mm solid infill bar.
  • Option of colour coated finish (extra).
  • Anti-Trap and Flat Top versions available.
  • 50 mm square posts as standard, other sizes available.

General information

Features

Available at 1000 mm and 1200 mm height above ground

12 mm solid infill bar

Option of colour coated finish (extra)

Anti-Trap and Flat Top versions available

50 mm square posts as standard, other sizes available

Uniclass 2015

Pr_25_71_50_15 Carbon steel framed vertical section panelsPrimary

CAWS

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Carbon steel framed vertical section panels

Product Reference

Fencing Rail

Type

Anti-Trap Bow Top, 6 bows, 1000 mm tall (138174630)

Width: 1800 mm.

Anti-Trap Bow Top, 6 bows, 1200 mm tall (138174633)

Width: 1800 mm.

Anti-Trap Bow Top, 8 bows, 1000 mm tall (138174635)

Width: 2400 mm.

Anti-Trap Bow Top, 8 bows 1000 mm tall (138174638)

Width: 2400 mm.

Flat Top, 18 inner bars, 1000 mm tall (138174650)

Width: 1800 mm.

Flat Top, 18 inner bars, 1200 mm tall (138174655)

Width: 1800 mm.

Flat Top, 24 inner bars, 1000 mm tall (138174675)

Width: 2400 mm.

Flat Top, 24 inner bars, 1200 mm tall (138174665)

Width: 2400 mm.

Standard Bow Top, 9 bows, 1000 mm tall (138174600)

Width: 1800 mm.

Standard Bow Top, 9 bows, 1200 mm tall (138174610)

Width: 1800 mm.

Standard Bow Top, 12 bows, 1000 mm tall (138174625)

Width: 2400 mm.

Standard Bow Top, 12 bows, 1200 mm tall (138174628)

Width: 2400 mm.

Posts

50 mm square

Standard. Contact manufacturer for other options.

Standard product features

Height above ground:

1000 mm or 1200 mm.

Depth below ground:

500 mm or 550 mm depending on height.

Product Options

Colour/ Finish:

Galvanized finish as standard. Most RAL and BS colours are available as painted finishes – contact manufacturer for further details. Polyester coloured coatings are available by special order.
