FCi OSCI - Open State Cavity Barrier Cassette Insert - Cassette Tray Infill
Verified by manufacturer today

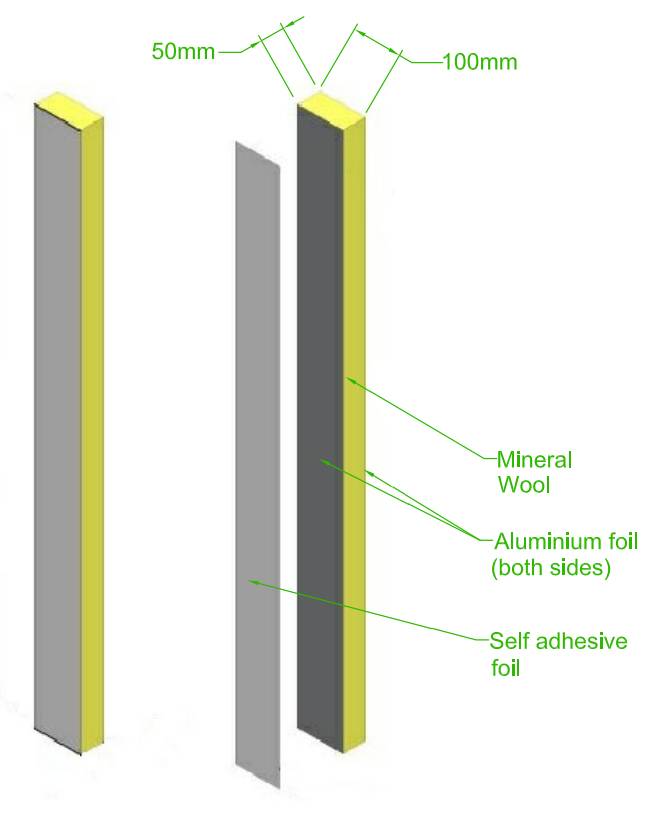

Open state cavity barrier cassette insert. 50 mm infill with self-adhesive tape. 1200 x 100 x 50 mm.
Application
Open state cavity barrier cassette insert.
Can also be specified as part of the FFB-VS range of cavity barriers.
Description
Open state cavity barrier cassette insert.
Features and benefits:
- 50 mm infill with self-adhesive foil.
- 1200 x 100 x 50 mm (0.547 kg).
- Aluminium foil to both sides.
- Density: 90 kg/m³.
General information
Color | Silver Yellow |
Finish | Foil |
Material | Mineral wool |
Shape | Rectangle |
Length | 1200 mm |
Width | 100 mm |
Height | 50 mm |
Uniclass | |
CAWS | P10/70 Sleeved small cavity barriers P10/420 Sleeved mineral wool small cavity barriers P12/40 Mineral wool rigid batts P12/360 Mineral wool rigid batts |
SKU Code | 554125 |
Specification data - Sleeved mineral wool cavity barriers
Cavity barriers | |
Sleeves | Aluminium foil to both sides. |
Attachment | Self-adhesive foil. |
Size | 100 x 50 mm. |
Residual cavity width | Guidance for specification option: Insert requirements. |
Fire performance | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Sound insulation rating | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Sustainability data
Material | Mineral wool |
Literature
Literature type
Rainscreen Cavity Barriers Brochure
FFB-VS VentiStop Cavity Barrier - Datasheet
