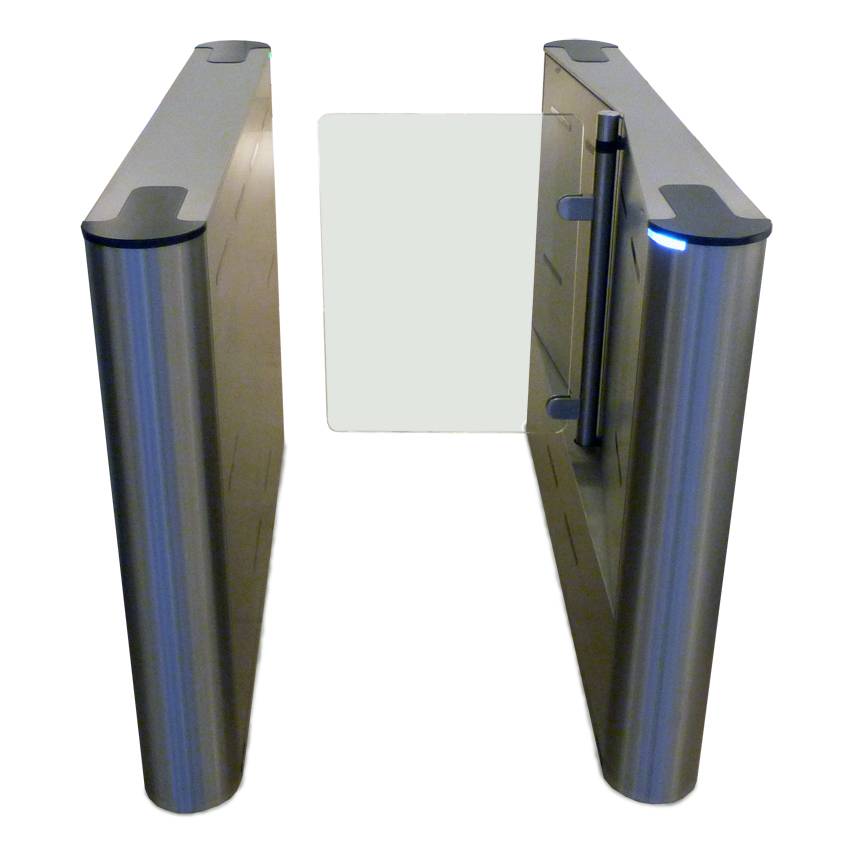

Fastlane Glassgate 200

Description

The newly updated GG200 now features IP connectivity for ethernet control and monitoring. Based on the latest IDL 32 beam-path platform featuring ethernet connectivity, the GG200 now has all the enhanced features of the rest of the Fastlane family. Intelligent and safe, users are met with a familiar glass door arrangement, as easy to use as it is easy on the eye. The timeless design with new functionality put the GG200 back on the cutting edge of turnstile products.

Designed to integrate seamlessly with Access Control, CCTV and whole building management systems. By receiving information from the Access Control system, Glassgate 200 knows how many people to admit and in which direction of travel. Any unexpected movements are instantly met with an audible and visual alarm and signals are passed to your Access Control or CCTV system to acknowledge an alarm condition has occurred. Glassgate 200 now features Fastlane Connect, IP communications for control, configuration and diagnostics. Available in three barrier heights.

Features and benefits:

  • Class-leading infrared detection systems.
  • Detects and deters tailgaters in very close proximity.
  • Barriers are a visual and physical deterrent.
  • Accurately assesses traffic through the barrier.
  • Differentiates body mass from smaller objects.
  • Provides feedback of traffic flow.
  • Quick and safe action.
  • High processing speed reduces traffic build-up.
  • Door-like motion ensures quick user acceptance.
  • Inspired, elegant design.
  • Glass barriers provide secure and welcome entry.
  • Barriers open flush with the pedestal, minimizing footprint.
  • Quality build lowers whole life costs.
  • Fewer failures mean lower repair costs.
  • On-line diagnostics and support packages.

General information

Features

Status display, optical and visual alarm notification, ethernet monitoring and control, compatible with access control systems

Size

1411 x 168 x 962 mm

Uniclass 2015

Pr_30_59_34_88 Stainless steel half-height turnstilesPrimary

CAWS

L20/490 Automatic doors

Specification data - Stainless steel half-height turnstiles

Product Reference

Fastlane® Glassgate 200

Barrier Height

959 mm

1204 mm

1529 mm

Standard product features

Size (l x w x h):

1410 x 168 x 965 mm.

Weight:

85 kg.

Standard lane width:

660 mm.

DDA/ ADA lane width:

914 mm.

Barrier material:

10 mm toughened safety glass EN 14179/ ANSI 97.1.

General:

  • Barrier breakaway force: > 40 N.
  • Barrier speed of operation: 1.2 seconds (minimum, standard lane).
  • Infrared optical matrix: Pulsed beam paths 32.
  • Tailgate detection distance: 5 mm.

Environmental:

  • Temperature: 5–50°C.
  • Relative humidity: 5–95% non-condensing.
  • Energy consumption per lane: 438 kW hours per annum.
  • Ingress protection: IP20 (Internal building applications only).

Power supply:

  • Enclosure: Black carbon steel, wall mounted, 330 x 200 x 136 mm.
  • Modules: Dual or quad 24 V DC, 2.5 A overcurrent fold back.
  • Input voltage: 100–240 V AC, 60/ 50 Hz, 5 A fused spur connection.
  • Approvals: UL 60950-1; CSA C22.2 No. 60950-1-07 second edition.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2015

2

1.3
