Fastlane Clearstyle 400
Description

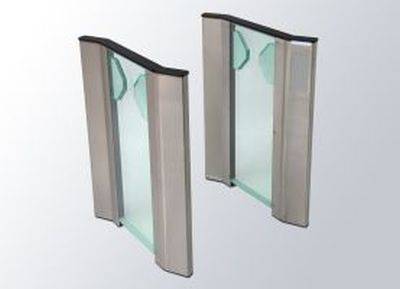

Providing the most discreet form of security possible, Clearstyle 400 blends right into the fabric of the building, delivering the perfect combination of security and aesthetics. The construction is a combination of stainless steel and clear Perspex panels. The stainless steel end sections can be provided in a variety of finishes to ensure a perfect match with the building’s surroundings.

Features and benefits:

  • Secure.
  • User friendly.

General information
Features

Status display, optical and visual alarm notification, ethernet monitoring and control, compatible with access control systems

Size

780 x 168 x 970 mm

Uniclass 2015
Pr_30_59_34_88 Stainless steel half-height turnstilesPrimary
CAWS

L20/490 Automatic doors

Specification data - Stainless steel half-height turnstiles
Product Reference

Fastlane® Clearstyle 400

Lane width

Standard

600–700 mm.

Disabled

850–960 mm.

Colour/ Finish

Stainless steel end sections available in various finishes, consult manufacturer and insert requirements.

Accessories

Not required

Card reader mounting

Fastlane floor protector

Fastlane infill system

Standard product features

Size (l x w x h):

780 x 56 x 970 mm.

General:

  • Optics: Pulsed multi infrared beam array, synchronized for detection, environmentally hardened to avoid sunlight interference.
  • User interface: User programmable tri-colour graphic display.
  • Sounders: Single tone sounder; card authorisation, alarm events.
  • Speed of throughput: One person per second (typically).
  • Tailgate detection distance: 150 mm.
  • Modes: Bi-directional card in/ card out; On demand bi-directional card in/ free exit enter only/ exit only lane closed.

Power supply:

Mains PSU supplied (115–230 V AC) providing up to 24 V DC at 60 VA.

Product Options

Accessories:

  • Card reader mounting: A number of alternative card reader mounting options are available, consult manufacturer.
  • Fastlane floor protector: Designed for temporary installations and enables Fastlanes to be installed quickly and cost effectively, without drilling or otherwise damaging the floor on which they stand.
  • Fastlane infill system: A series of decorative modular panels, which complement the Fastlane speedgates by guiding users in the desired direction.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
Download now from NBS National BIM Library
