Description

Pre-fabricated bracket solution offering speed, flexibility and efficient use of space, for the installation of electrical containment, pipework, ductwork and other M&E services.

Features and benefits:

  • Up to six times faster than traditional suspension systems.
  • Pre-fabricated system which removes the need to cut threaded rod or channel on site.
  • Bracket can be moved up and down the tracks to accommodate changes in position during installation.
  • Safety locks ensure security once brackets and tracks are in place.
  • Can be multi-tiered to accommodate additional services.

General information
Material

Bracket: Carbon steel, DX51D

Button: Polypropylene, impact copolymer

Cartridge: Fire rated acrylonitrile butadiene styrene (ABS)

Uniclass 2015
Channel supports (Pr_80_77_27_15)Primary
Specification data - Channel supports
Product Reference

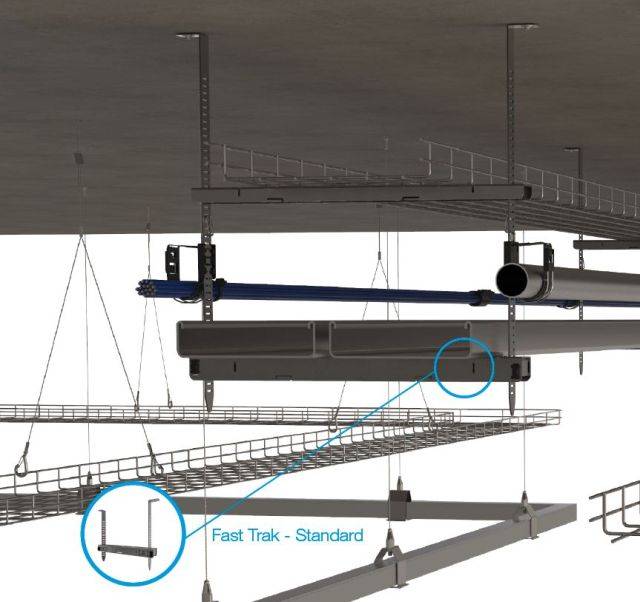

Fast Trak™

Trapeze bracket.

Fast Trak™ - Side Loading

Lightweight services can be side loaded onto the bracket.

Bracket

Insert requirement, many options available, consult manufacturer's literature for information.

Track

FTT 135

For Fast Trak™ Side Loading only, 135 mm long.

FTT 285

285 mm long.

FTT 535

For Fast Trak™ only, 535 mm long.

FTT 785

For Fast Trak™ only, 785 mm long.

Accessories

Insert requirements, consult manufacturer's literature for information.

Standard product features

Material:

  • Bracket: Carbon steel, DX51D.
  • Button: Polypropylene, impact copolymer.
  • Cartridge: Fire rated acrylonitrile butadiene styrene (ABS).

Bracket height:

35 mm.

Track size (h x w):

40 x 28 mm.

Load rating:

Dependent on bracket, consult manufacturer's literature for information.

Product Options

Size:

Dimensions dependent on product and thread, consult manufacturer's literature for information.

Mounting:

Shot fire, drop-in anchor, concrete screw, wood screw or wedge anchor.

Fire rating:

Exova tested to F120 (two hours).

Third party certifications
  • Tested
  • Lloyds: Certified
  • UL: Tested
  • Apave: Tested
  • Exova: Fire tested to F120.
