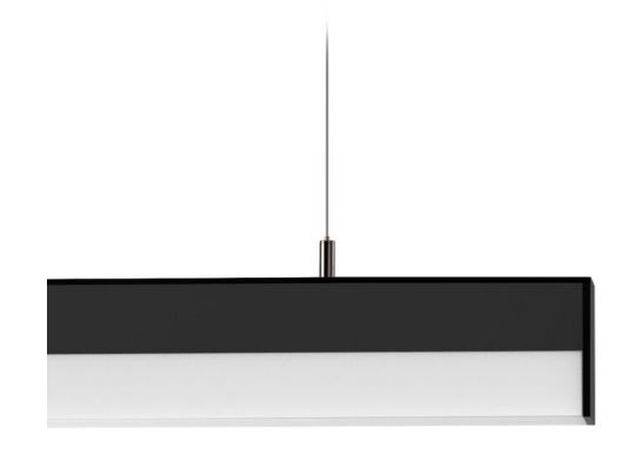

Suspended linear LED lighting with an inclined edge.
Designed to complement almost any environment. Particularly suited to modern office spaces and flexible co-working environments.
Suspended linear LED lighting with an inclined edge.
Features and benefits:
Also available as surface mounted (specified separately).
Application:
Designed to complement almost any environment. Particularly suited to modern office spaces and flexible co-working environments.
Features | LG7 linear light, high quality and versatile |
Finish | Polyester powder coat |
Material | Extruded aluminium profile with LEDs |
Shape | Feature linear |
Size | Seven lengths ranging from ranging from 562-2242 mm |
Uniclass 2015 | |
CAWS | V90/45 Luminaires V90/510 Luminaires |
Product Reference | Faseny Suspended |
Standards | Directive 2014/30/EC - EMCDirective 2006/95/EC - Low VoltageRegulation 1907/2006 - REACHDirective 2019/15/EC - LabellingDirective 2015/863/EC - RoHSDirective 2012/19/EC - WEEEDirective 2014/35/EU - making available on the market of electrical equipmentDirective 2011/65/EU - hazardous substances |
Third-party certification | Photometrics |
Luminaire description | Suspended, rectangular inclined, linear |
Classification | - |
Electric shock | Class I |
Ingress protection (minimum) | IP20 Rated |
Suitability for direct mounting on normally flammable surfaces | Not suitable for direct mounting on normally flammable surfaces |
Circumstances of use | Normal use |
Rated maximum ambient temperature | 25°C |
Control gear position | Integral within luminaire |
Supply circuit conductor connections | Loop wiring |
Nominal voltage | 220-240 V |
Luminaire power factor | 0.97 |
LED luminaires | - |
Performance standards | EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471 |
Safety standard | SELV |
Initial LED luminaire efficacy (minimum) | 102 lm/W |
Wattage | 10.6 W/ 1060 lm up to 42 W/ 4240 lm |
Colour temperature | 3000K4000KTunable White (TW) 2700-6500KInsert requirements. Not available with 562 mm version. |
Colour rendering index (Ra) | 80+ |
Beam angle | 180° |
Useful life | 50 000 hours (L80B20) |
Dimming protocol | DALI DimmingDALI Dimming/ BluetoothNon-dimmingStandard. |
Emergency version | - |
Standard | Tridonic |
Mode of operation | Maintained |
Duration of emergency mode (minimum) | No emergency0 hours. 3 hours |
Integral sensors | Not requiredCASAMBIPassive Infrared Sensor (PIR)Philips EasyAir |
Accessories | Not requiredCeiling cup, 80 x 80 x 32 mmAvailable white, black or silver. Corner modules, 603 mmDALI straight connectorEnd caps, 99 x 66 mmAvailable white, black or silver. Pendant profile, 1000 mmAvailable white, black or silver. Power cable, 2000 mm, 4 corePower cable, 2000 mm, 5 coreStraight connectorSuspension kit, 2000 mm |
Length | 562 mmNot available with emergency mode. 842 mmNot available with emergency mode. 1122 mm1402 mm1682 mm1962 mm2242 mm |
Optics | Opal Diffuser (bi-directional) |
Colour | BlackSilverWhiteRALInsert requirements. |
Unified glare rating | - |
Transverse | <24.6, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards |
Longitudinal | <24.6 |
Driver | - |
Efficiency | 96% |
Frequency | 50-60 Hz |
Emergency output | 210 lm |
Upward light output ratio (ULOR) | 88% |
Downward light output ratio (DLOR) | 12% |
Output direction | Direct/ indirect |
Standard product features | Colour: Available in three standard colours or bespoke RAL colour. Features: LG7 linear light, high quality and versatile. Finish: Polyester powder coat. Material: Extruded aluminium profile with LEDs. Shape: Feature linear. Size: Seven lengths ranging from ranging from 562-2242 mm. Warranty: Two-year warranty. Recycled content: Aluminium and packaging. Recyclability: Frame and packaging. Country of origin: UK. |
Recyclability | Frame and packaging |
Recycled content | Aluminium and packaging |
