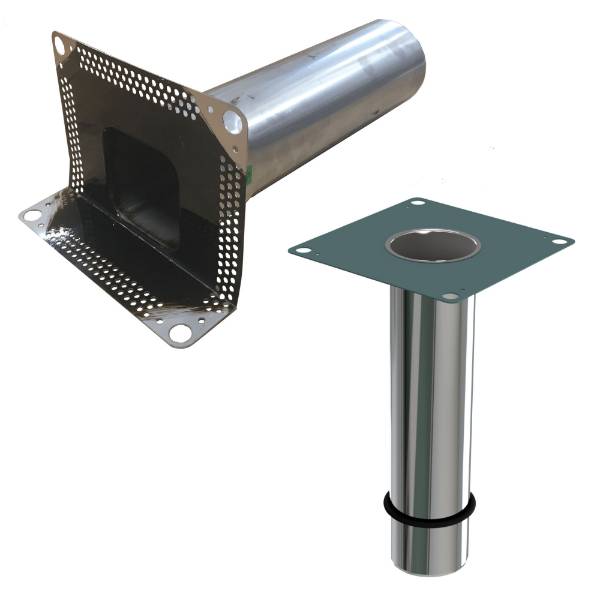

FarBo® FloDrain & ParaDrain - Plain Flange Flat Roof Drainage Outlet
Verified by manufacturer 1 month ago
FO-FLO-50-PF.
FO-FLO-50-PF.
Rainwater outlets for roof drainage systems.
Application
Vertical and horizontal rainwater outlets for liquid-applied flat roof refurbishment and new build projects.
Description
Rainwater drainage outlets for liquid-applied flat roofing systems.
Features and benefits:
- High quality 400 mm long spigot manufactured from stainless steel
- Flange is plain stainless steel with pre-punched fixing holes
- FloDrain flange size is 300 mm x 300 mm square
- ParaDrain flange size 230 mm x 230 mm square
- O-ring seal supplied for refurbishment application
- Provides excellent seal whilst still allowing for movement
- Manufactured in accordance with ISO 9001, ISO 14001 and ISO 18001 Quality and Management Systems
General information
Color | Silver |
Material | Stainless steel |
Length | 400 mm |
Width | 50 mm 75 mm 95 mm 110 mm |
Uniclass | |
CAWS | R10/365 Proprietary rainwater outlets R10/26 Proprietary rainwater outlets |
Product range |
Specification data - Gravity rainwater outlets
Material | Stainless steel. |
Diameter | 8 mm. Manufacturer guidanceO-ring seal diameter (mm). |
Dimensions | 300 x 300 mm. Guidance for specification option: FloDrain flange. Manufacturer guidanceFlange size. |
Outlet | 50 mm. Manufacturer guidanceOutlet drain (mm). |
Pipe sizes | Manufacturer guidance
|
