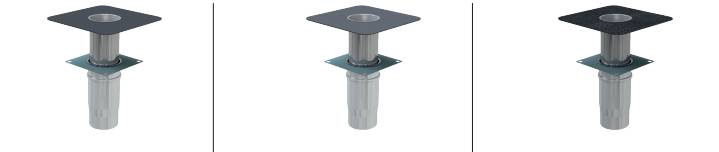

FarBo® DuoDrain Outlets
Verified by manufacturer 1 month ago
FO-DUO-PF-75/PVC DK GY
FO-DUO-PF-75/PVC DK GY
Two-part drain for applications where the drain needs to be sealed at VCL level
Application
- Outlets for use where a sealed interface is required at VCL level as well as roof level
- Suitable for use in new build or refurbishment applications
Description
DuoDrain outlets for roof drainage systems.
Features and benefits:
- Both outlet sections have durable stainless steel spigot
- Membrane is easily attached to the upper outlet with either heat or solvent welding. Easy installation
- Lower outlet available in plain flange or SBS
- Compatible with most types of VCL
- A variety of leaf guards are available for the upper outlet
- Manufactured in accordance with ISO 9001, ISO 14001 and ISO 45001 Quality and Management Systems
- Primed plain flange on lower outlet (PF range)
- Bituminous SBS flange on lower outlet (SBS range)
General information
Color | Grey Guidance for specification option: Light grey PVC or dark grey PVC. Black Guidance for specification option: Bituminous. |
Material | Stainless steel |
Width | 75 mm 110 mm 125 mm 160 mm |
Uniclass | |
CAWS | R10/365 Proprietary rainwater outlets R10/26 Proprietary rainwater outlets |
Product range |
Specification data - Gravity rainwater outlets
Material | Stainless steel. |
Integral accessories | Not required.Leaf guard.Guidance for specification option: A variety of leaf guards are available for the upper outlet, consult manufacturer for options. |
Pipe sizes | 82—95 mm. Manufacturer guidanceTo suit pipe size: |
Size | 350 x 350 mm. Manufacturer guidanceMembraner size. |
Type | Dark grey PVC. Manufacturer guidanceMembrane type. |
Spigot diameter (external) | 75 mm. Manufacturer guidanceSpigot Overall Diameter. |
Spigot length | Upper outlet 400 mm, lower outlet 280 mm. Manufacturer guidanceSpigot Length. |
Flange | Primed plain flange. Guidance for specification option: On lower outlet. |
