Fabricated Lean To - Braced Portal Frame
Description

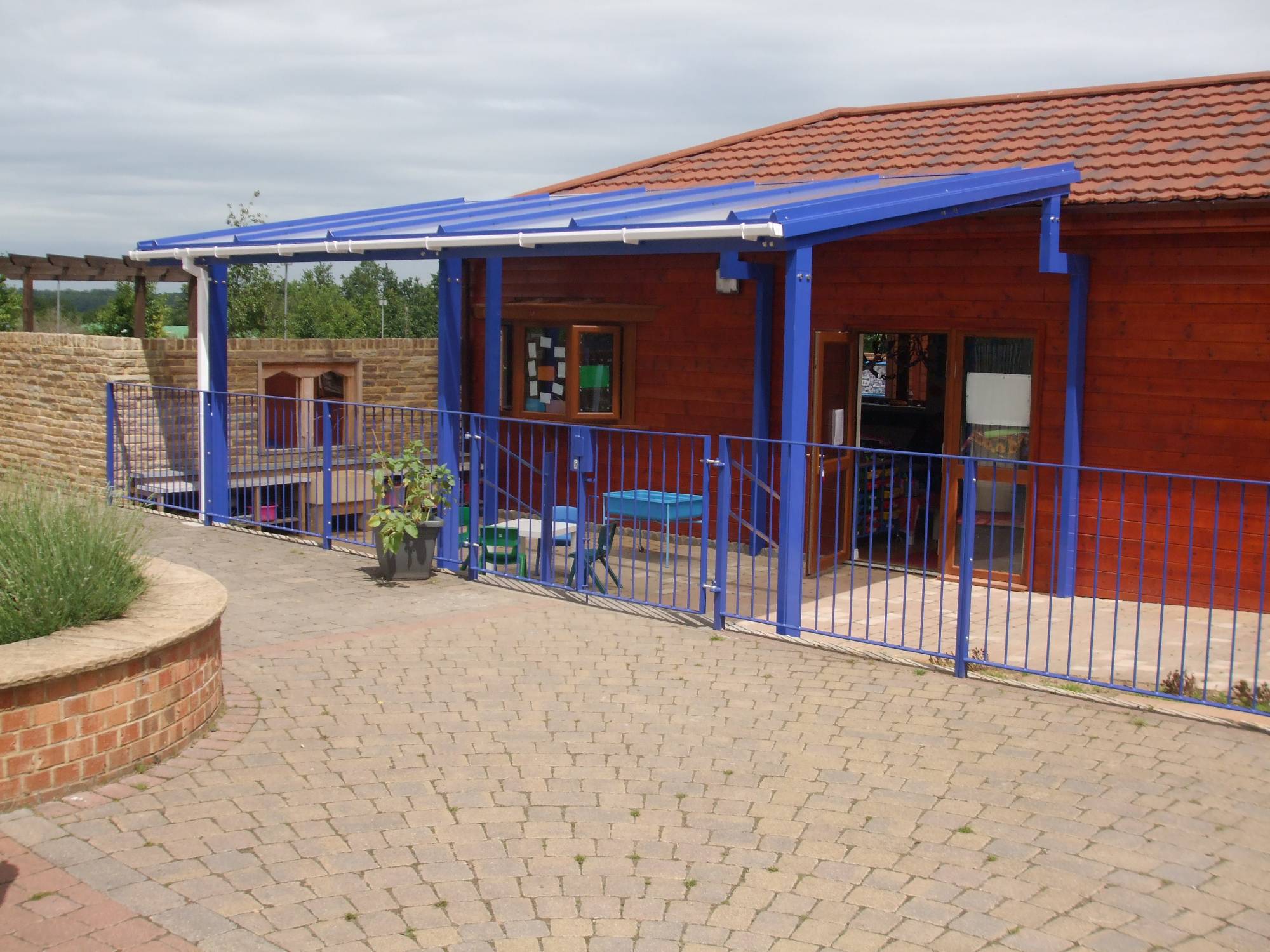

Lean-to canopy with full aluminium braced portal framework and Mono pitched roof consisting of Multi Link panels (see separate product).

Maximum projection is 5 m and maximum bay size is 3 m.

General information

Features

Lightweight and recyclable framework, glazing provides UV protection

Finish

Frame: Polyester powder coated (to BS 6496)

Material

Frame: Extruded aluminium bars to BS EN755-2; Glazing: Polycarbonate/glass

WarrantyDescription

10

Uniclass 2015

Pr_20_65_78_58 Open sided sheltersPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 3 2.0
Download now from NBS National BIM Library
