Fabric Wrapped Acoustic Ceiling Baffles
Application

Designed for ceiling vertical suspension in loud areas that require reduction in echo to produce more favourable room acoustics.

Description

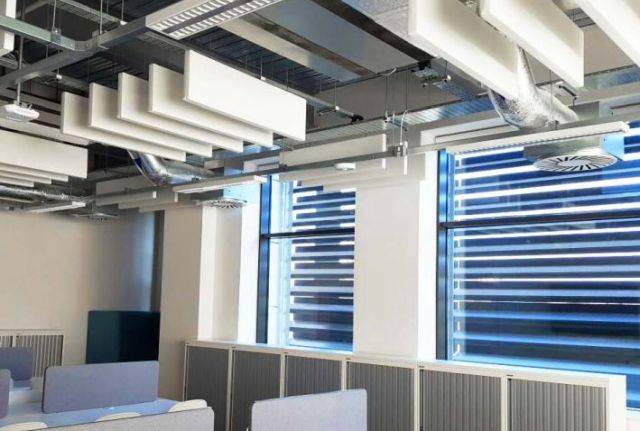

Fabric wrapped acoustic ceiling baffles which are a functional and cost-effective alternative to suspended ceiling tiles. They are designed to suspend vertically in rows and columns spread across the expanse of the ceiling, allowing for air flow and flexible lighting arrangements

The baffles achieve Class A acoustic performance which meets BB93 standards. They can be manufactured to any size required are supplied with the appropriate hanging kits, including 2 m suspension cables, bullet ceiling fixings, clips and spiral hooks.

Features and benefits:

  • Excellent sound absorption performance - Class A.
  • Over 100 standard fabric colours available.
  • Impact resistant.
  • High content of recycled material.
  • Easy installation method.
  • Quick availability.

Applications:

Designed for ceiling vertical suspension in loud areas that require reduction in echo to produce more favourable room acoustics.

General information

Size

1200 x 400 mm

2400 x 400 mm

Special order

Insert requirement.

Material

Sound absorbing, high-density fibre glass core board (90 kg/m³) wrapped in acoustic fabric

Uniclass 2015

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

K40/270 Boards

Specification data - Sound attenuator infill units

Product Reference

Fabric Wrapped Acoustic Ceiling Baffles

Size

1200 x 400 mm

2400 x 400 mm

Special order

Insert requirement.

Fabric

-

Type

Insert requirement from Cara and Lucia ranges, consult manufacturer's literature for information.

Fire rating (to BS 476-7)

Class 0

Class 1

Standard.

Standard product features

Material:

Sound absorbing, high-density fibre glass core board (90 kg/m³) wrapped in acoustic fabric.

Thickness:

40 mm.

Weight:

4.5 kg/m².

Edges:

Square.

Core fire rating (to BS 476-6):

Class 0.

Sound absorber class (to BS EN ISO 11654):

A.

Sound absorption coefficient (to BS EN ISO 11654):

125 Hz: 0.8; 250 Hz: 0.65; 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz and aw: 0.95; noise reduction coefficient (NRC): 0.85.
