Fabreeka® Preformed Fabric Bearing Pad - Bearing Pad
Verified by manufacturer 5 months ago
Reducing structure-borne noise and impact shock and vibration.
Application
Fabreeka pad can be used in applications where:
- Vibration or acoustic control within building structure, foundation or at the disturbance such as HVAC.
- A load bearing pad and thermal break/thermal insulation is required.
- Uneven or textured surfaces exist (i.e. concrete to concrete or concrete to steel columns).
- To account for structural expansion at movement joints of buildings or structures.
Fabreeka pad is not recommended for structural moment connections, such as balconies and canopies.
Description

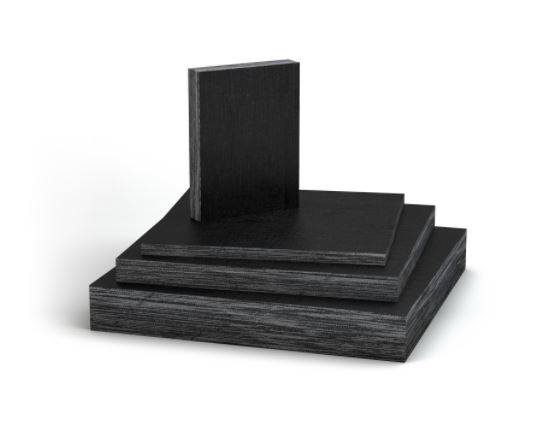

Fabreeka® resilient laminated fabric pad is a scientifically designed and manufactured material composed of layers of tightly twisted, closely woven lightweight duck. Each layer is impregnated with an elastomeric compound containing mould and mildew inhibiting agents. The properties of Fabreeka are exceptionally suited for the reduction of impact shock, vibration and structure-borne noise.
Features and benefits:
- Accommodates compressive loads up to 10,000 psi.
- Creep is limited to approximately 5% of the original pad thickness.
- Has a relatively high damping rate of 14% of critical.
- Impermeable to most oils and the effects of steam, water, mildew and brine.
- Effective temperature range is -55°C to + 95°C.
General information
Color | Black |
Finish | Natural |
Material | Composite |
Shape | Other Circle Oval Triangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | E40/445 Insulating load transfer systems E40/445 Insulating load transfer systems E40/440 Load transfer systems |
Specification data - Acoustic and vibration resistant bearings
Standard | MIL-C-882 MIL-E-5272A. |
Material | Woven lightweight duck. |
Properties | Oil water and heat resistant. |
Intended working life | Guidance for specification option: The unusual strength of Fabreeka and its ability to withstand conditions of service commonly encountered both in and out of doors insures long life and constant efficient performance. |
Dimensions | |
Height | Bespoke.Guidance for specification option: Custom, insert requirements and consult manufacturer. |
Width | Bespoke.Guidance for specification option: Custom, insert requirements and consult manufacturer. |
Depth | Bespoke.Guidance for specification option: Custom, insert requirements and consult manufacturer. |
Load capacity | With additional reverse loads and lateral loads.Guidance for specification option: Compressive loads should not exceed 13.8 MPa for long life. |
Thickness | 1.6 mm. 2.4 mm. 3.2 mm. 4.0 mm. 4.8 mm. |
ThermalConductivity | 0.274 W/m·K. |
Density | 1185 kg/m³. |
CompressiveStrength | 10 000–20 000 psi. Guidance for specification option: 69—138 Mpa. In general, compressive stresses should not exceed 2,000 psi (13.8 MPa) for long life, freedom from set and high factor of safety |
TemperatureRange | -55°C to + 95°C. Guidance for specification option: Continuous temperature exposure limits for long life. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
Material | Composite |
Recyclability | Product is a composite and is therefore not able to be recycled. material lifecycle under ideal conditions can be up to 50 years. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
