Application

Suitable for external use, allows for non-structural infill, ideal in paved environments. Designed to blend in aesthetically with the surrounding area.

Description

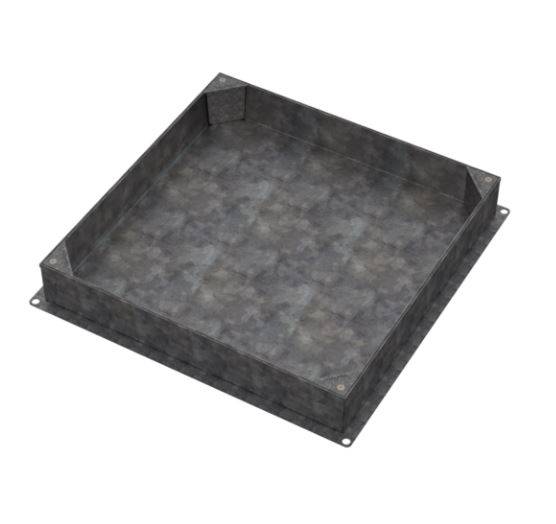

Air tight external recessed cover for block paving or non-structural infill.

Features and benefits:

  • To suit clear a bespoke range of opening sizes.
  • Manufactured from high grade mild steel and stainless steel.
  • Neoprene sealed to provide airtight gasket.
  • M12 locking and lifting points to deter unauthorised cover removal.
  • Cover identification is optional.
  • Tested unfilled to FACTA.
  • Available in class loads FACTA AAA, B, C, D.

Application:

Suitable for external use, allows for non-structural infill, ideal in paved environments. Designed to blend in aesthetically with the surrounding area.

General information
Material

Galvanized S275 Mild Steel

304 Stainless Steel

316 Stainless Steel

Finish

Hot Dip Galvanised

To BS EN: ISO 1461.

Features

Manufactured in accordance to ISO: 9001 quality system

Shape

Square, Rectangle

Uniclass 2015
Pr_65_52_01_02 Access covers and framesPrimary
Specification data - Access covers and frames
Product Reference

FAB PAVE™ S20

Standards

FACTA

Fabricated Access Covers Trade Association.

BS EN ISO 9001

Manufactured in accordance to ISO: 9001 quality system.

BS EN ISO 14001

BS OHSAS ISO 45001

(formally BS OHSAS 18001)

Configuration

None

Recessed Cover for Block Paving

Available in 1 - 6 parts dependent on size.

Non-Structural Infill

Clear opening (minimum)

Insert requirements

Product can be bespoke Refer to manufacturers standard drawings for clear opening sizes. Overall size includes lifting points.

300 x 300 mm

450 x 300 mm

450 x 450 mm

600 x 450 mm

600 x 600 mm

675 x 675 mm

750 x 750 mm

900 x 600 mm

900 x 900 mm

1000 x 1000 mm

1220 x 675 mm

Load class (minimum)

AAA

B

C

D

Frame or support

Frame

Tray with threaded lifting points.

Integral accessories

None

Threaded heavy duty lifting key

FSP part code COM0000310

Material

Galvanized S275 Mild Steel

304 Stainless Steel

316 Stainless Steel

Finish

Hot Dip Galvanised

To BS EN: ISO 1461.

Standard product features

Features:

Manufactured in accordance to ISO: 9001 quality system.

Shape:

Square, Rectangle

Third party certifications
  • BS EN: ISO 1461
  • BS EN: ISO 9001
  • BS EN: ISO 14001:2015
  • BS EN: ISO 45001 (formally BS OHSAS 18001)
