FAB PAVE™ SOLOSLIDE® S50
Application

Suitable for external use, allows for non-structural infill, Ideal for driveways, patios and other landscaping projects. Designed to blend in aesthetically with the surrounding area.

Description

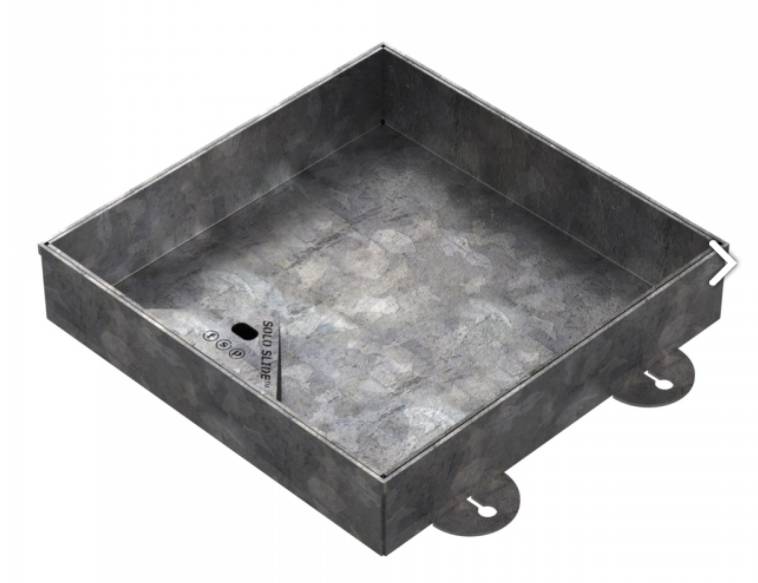

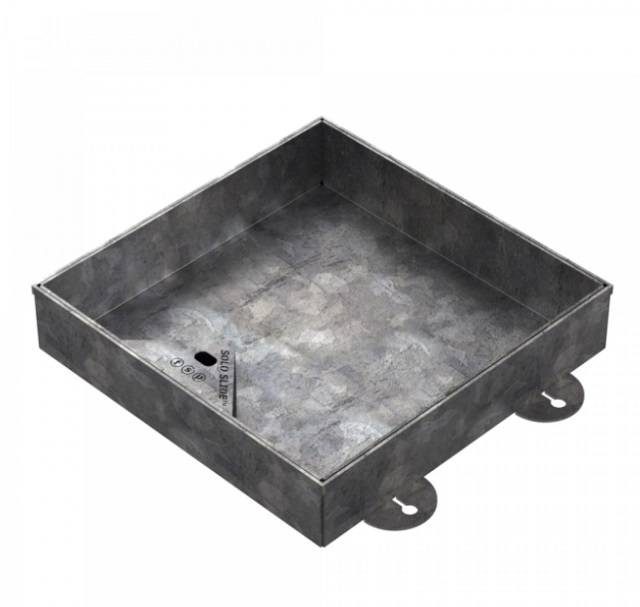

Driveway recessed cover and frame. Recessed cover to accept any landscape material from paving bricks to tarmac.

Features and benefits:

  • To suit a range of standard and bespoke clear opening sizes.
  • Manufactured from high grade mild steel.
  • Cover sides tapered to facilitate easy removal from frame.
  • One person operation when using SOLO SLIDE® key.
  • Available in 70 mm in tray.
  • Tested unfilled to FACTA.
  • Class loads AAA loading.
  • DDA compliant.
  • Locking screws optional.
  • Badging identification optional.

Application:

Suitable for external use, allows for non-structural infill, Ideal for driveways, patios and other landscaping projects. Designed to blend in aesthetically with the surrounding area.

General information

Finish

Hot-dip galvanized to BS EN ISO 1461

Material

Mild steel, 304 stainless steel, 316 stainless steel

Shape

Square

Rounded

Rectangular

Size

450 x 450 mm

300 x 300 mm

450 mm rounded

600 x 450 mm

600 x 600 mm

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary
Specification data - Access covers and frames Enhanced data

Product Reference

FAB PAVE™ S50 SOLOSLIDE

Standards

FACTA

Fabricated Access Covers Trade Association.

BS EN ISO 9001:2015

Manufactured in accordance to ISO 9001 quality system.

BS EN ISO 14001:2015

BS OHSAS ISO 45001

Formerly BS OHSAS 18001.

BS EN ISO 1461

BS EN 124:2015

Configuration

Recessed cover

Finish

Hot-dip galvanized to BS EN ISO 1461

Clear opening (minimum)

300 x 300 mm

450 x 450 mm

600 x 450 mm

600 x 600 mm

Bespoke

Refer to manufacturers' standard drawings for clear opening sizes and insert requirements. Overall size includes lifting points.

Load class (minimum)

FACTA AAA

Frame or support

Supplied with frame

Underneath support not required to take load.

Integral accessories

None

SOLO SLIDE key COM0000563

Ergonomically designed to facilitate single person operation. Galvanized mild steel heavy-duty lifting key.

DDA complaint protective keyway cap COM0000651

Protective cap to ensure DDA compliance. Heel proof. Rectangular grey plastic push fit plug.

RESI-BED epoxy bedding, bonding and repair mortar COM0001366

Two-part high strength epoxy resin mortar and primer system, especially suitable for bedding paving materials up to recessed access covers, tree grilles as well as concrete repair for areas subject to heavy wear and tear.

Frame fixing bolt COM0000309

Badging identification

Insert requirement.

Standard product features

Features:

Manufactured in accordance to ISO: 9001 quality system.

Material:

Mild steel; 304 stainless steel; 316 stainless steel.

Shape:

Square, Rectangular.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
