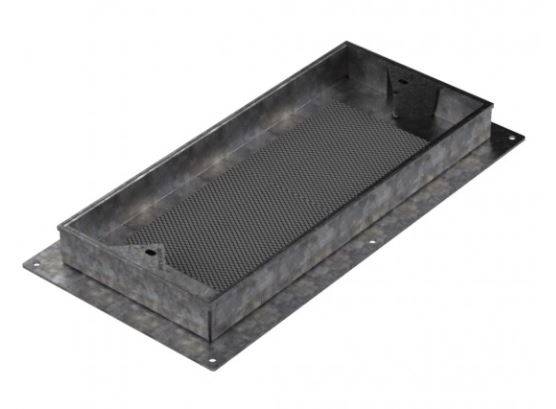

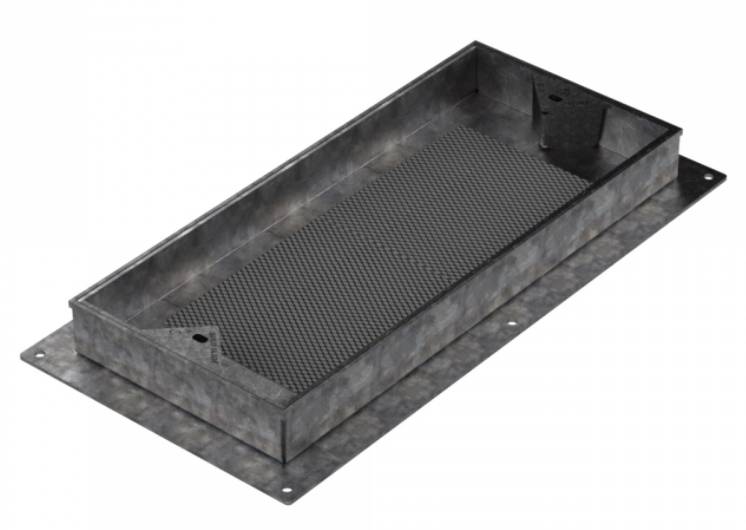

FAB PAVE™ S30 SOLOSLIDE®

Application

Suitable for external use, allows for non-structural infill, ideal in paved environments. Ideal where easy access to underground cabling is required. Designed to blend in aesthetically with the surrounding area.

Description

Telecommunications recessed external cover for easy access to underground cabling.

Features and benefits:

  • To suit a range of standard and bespoke clear opening sizes.
  • Manufactured from high grade 6 mm mild steel.
  • Cover sides tapered to facilitate easy removal from frame.
  • One person operation when using SOLO SLIDE® key.
  • Available in 70 to 150 mm in tray.
  • In accordance with BT LN593 specification.
  • BSI Kitemarked; Approval No. KM 640541.
  • Available in class loads A15 and B125.
  • DDA compliant.
  • Locking screws optional.
  • Badging identification optional.

Application:

Suitable for external use, allows for non-structural infill, ideal in paved environments. Ideal where easy access to underground cabling is required. Designed to blend in aesthetically with the surrounding area.

General information

Finish

Hot-dip galvanized to BS EN: ISO 1461

Material

S275 mild steel, 304 stainless steel, 316 stainless steel

Shape

Rectangular

Size

1310 x 610 mm

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary

Specification data - Access covers and frames Enhanced data

Product Reference

FAB PAVE™ S30 SOLOSLIDE

Standards

BS EN 124:2015

BS EN ISO 9001:2015

Manufactured in accordance to ISO 9001 quality system.

BS EN ISO 14001:2015

BS OHSAS ISO 45001

Formerly BS OHSAS 18001.

BS EN ISO 1461

Third-party certification

BSI Kitemarked

Approval No. KM 640541.

Configuration

Recessed cover

Available in one to six parts dependent on size.

Finish

Hot-dip galvanized to BS EN: ISO 1461

Clear opening (minimum)

725 x 225 mm

610 x 610 mm

915 x 445 mm

1310 x 610 mm

1690 x 710 mm

2285 x 710 mm

Bespoke

Refer to manufacturers' standard drawings for clear opening sizes and insert requirements. Overall size includes lifting points.

Load class (minimum)

BS EN 124 - A15

Covers and gratings capable of withstanding a 15 kN test load.

BS EN 124 - B125

Covers and gratings capable of withstanding a 125 kN test load.

Frame or support

Supplied with frame

Underneath support not required to take load.

Integral accessories

None

SOLO SLIDE™ key COM0000653

Protective keyways COM0000651

Badging identification

Insert requirements.

Locking screws

Standard product features

Features:

Manufactured in accordance to ISO: 9001 quality system.

Material:

Mild steel; 304 stainless steel; 316 stainless steel.

Shape:

Square, Rectangular.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
