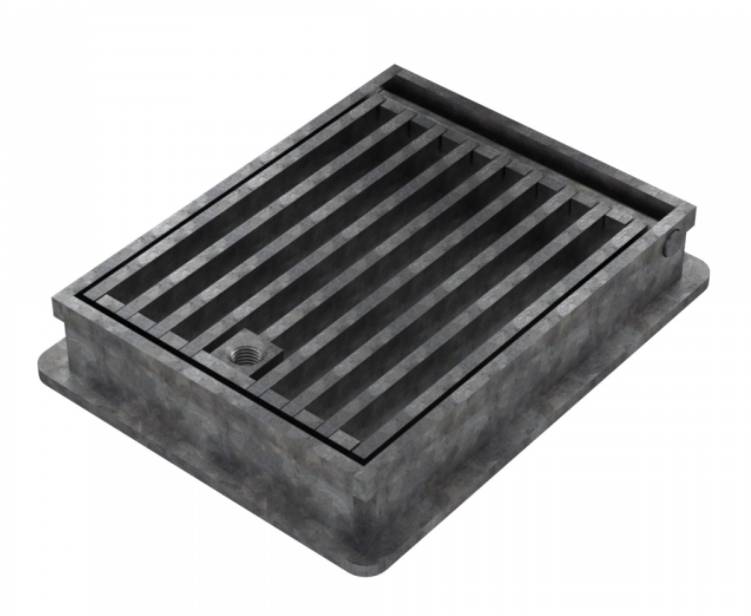

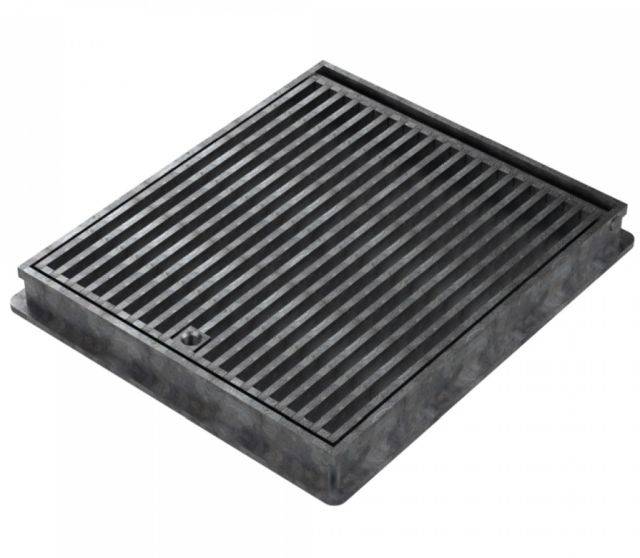

FAB GRATE™ S10 - Straight Bar

FAB GRATE™ S10 - Straight Bar

Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Fabweld Steel Products Ltd

FAB GRATE™ S10 Straight Bar Grating

Jump to:
+44 (0)1952 581430 www.fsp.co.uk
Application

Suitable for use in parks and footways, especially in urban areas.

Description

Cycle friendly hinged grating and frame supplied with locking screw.

Features and benefits:

  • To suit a range of standard or bespoke clear opening sizes.
  • Manufactured in high grade steel and hot-dip galvanized after manufacture to BS EN ISO 1461.
  • Loading options FACTA AAA, B or D.
  • Straight bar grating.
  • Hinged.
  • Cycle friendly.
  • Made to order.
  • 40 mm overall depth.

Application:

Suitable for use in parks and footways, especially in urban areas.

General information

Finish

Hot-dip galvanized to BS EN ISO 1461

Material

Galvanized mild steel, 304 stainless steel, 316 stainless steel

Shape

Square

Size

450 x 450 x 40 mm

225 x 225 x 40 mm

300 x 300 x 40 mm

150 x 150 x 40 mm

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary
Specification data - Access covers and frames

Product Reference

FAB GRATE™ S10

Standards

FACTA

Fabric Access Covers Trade Association.

BS EN ISO 9001:2015

Manufactured in accordance to ISO 9001 quality system

BS EN ISO 14001:2015

BS OHSAS 18001:2007

BS EN ISO 1461

Finish

Hot-dip galvanized to BS EN ISO 1461

Clear opening (minimum)

150 x 150 mm

225 x 225 mm

300 x 300 mm

450 x 450 mm

Bespoke

Available in any size 250–1000 x 250–1000 mm; insert requirements.

Load class (minimum)

AAA

B

D

Frame or support

Supplied with frame

Underneath support not required to take load.

Integral accessories

None

Threaded heavy duty lifting key COM000310

Standard product features

Features:

To suit a bespoke range of clear opening sizes. Manufactured to FACTA specification. Loading options from FACTA AAA, B or D. Hinged. Cycle friendly.

Finish:

Hot-dip galvanized to BS EN ISO 1461.

Materials:

Galvanized mild steel; 304 stainless steel and 316 stainless steel.

Shape:

Square, Rectangular.

Size:

212 x 162 mm overall top of frame; 287 x 237 mm overall top of frame; 362 x 312 mm overall top of frame; 512 x 462 mm overall top of frame.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
