Application

Suitable for use within sanitary facilities.

Description

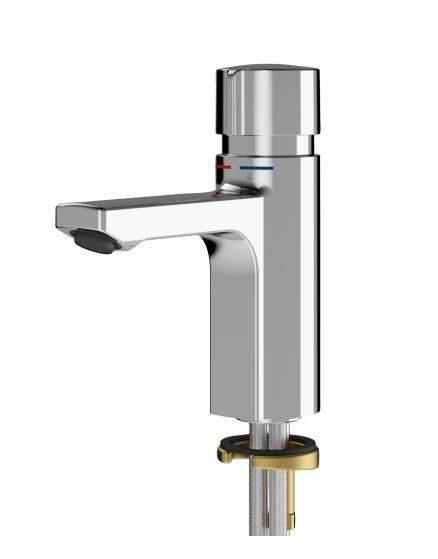

Hydraulic, self-closing pillar mixer tap for use within sanitary facilities.


Features and benefits:

  • Includes self-closing cartridge.
  • Tap is hydraulically controlled, low-maintenance and stagnation-free, and includes stepless adjustment of flow duration.
  • Has ceramic disc technology and is flow pressure-independent due to medium-separated design.
  • For connection to pre-mixed hot water or cold water via hoses with integrated backflow preventer and strainers.
  • Includes temperature lever with adjustable, turn-proof temperature stop.
  • Casing is manufactured from high-polished, chromium-plated brass.
  • Includes anti-theft aerator with an integrated flow regulator of 5.0 L/min.
  • Manual operation, tap hole mounted.

General information

Finish

Polished

Guidance for specification option:

High-polished chromium-plated finish.

Material

Brass

Length

50 mm

Width

163 mm

Height

170 mm

Uniclass

Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Product range

Taps

Specification data - Washbasin thermostatic water supply sets

Form

Manual operation, tap hole mounted.

Materials

-

Body

Brass.

Guidance for specification option:

Chromium-plated brass.

Finish and colour

Chrome plated.

Guidance for specification option:

High-polished chromium-plated finish.

Integral accessories

(ACSX1001) 2030041519 Socket for increasing the tap body by 140 mm.

(ACXX1001) 2030035383 Anti-twist protection.

Dimensions

50 x 170 x 163 mm.

Guidance for specification option:

Overall dimension.

Manufacturer guidance

  • Spout projection: 125 mm.
  • Diameter (nominal): DN15.
  • Inlet: G 3/8".

VolumetricFlowRate

0.08 L/s.

Guidance for specification option:

Flow rate achieved at 3 bar pressure.

Manufacturer guidance

Calculation flow rate (cold and hot water): 0.07 L/s.


Water pressure

0.5 bar.

Guidance for specification option:

Pressure required for minimum flow.

Open time (minimum)

5 s.

Guidance for specification option:

Minimum flow time of 5 seconds.

Operating time

60 s.

Guidance for specification option:

Maximum flow time of 60 seconds.
