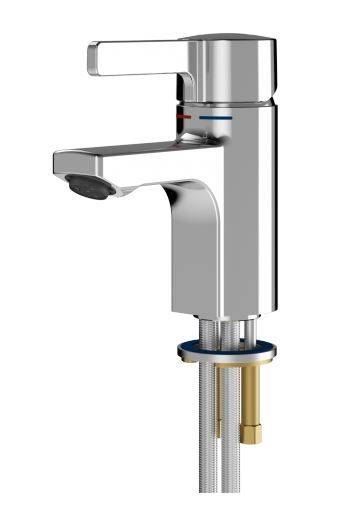

F5 Lever Pillar Mixer Tap
Verified by manufacturer over a year ago
Single-lever pillar mixer tap.
Application
Suitable for use within sanitary facilities.
Description
Single-lever pillar mixer tap for use within sanitary facilities.
Features and benefits:
- For connection to hot water and cold water via hoses, includes strainers.
- Includes mixing cartridge with ceramic disc technology and thermostatic protection from scalding, permanently set to 41°C and with safety switch-off in the event of failure of the cold water supply.
- Has a mechanism for an optional hygiene unit for automatic hygiene flushing and program-controlled thermal disinfection.
- All-metal construction, high-polished chromium-plated brass.
- Includes anti-theft aerator with an integrated flow regulator of 5.0 L/min.
- Manual operation, tap hole mounted.
General information
Finish | Polished Guidance for specification option: High-polished chromium-plated finish. |
Material | Brass Guidance for specification option: Chromium-plated brass. |
Length | 140 mm |
Width | 50 mm |
Height | 135 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Washbasin thermostatic water supply sets
Form | Manual operation, tap hole mounted. |
Materials | |
Body | Brass.Guidance for specification option: Chromium-plated brass. |
Finish and colour | Chrome plated.Guidance for specification option: High-polished chromium plated finish. |
Integral accessories | 2030041324 Twist-proof set. |
Hygiene unit | Required. Guidance for specification option: Two variants available, consult manufacturer for details and insert requirements. Not required. |
Accessories/ Other requirements | Not required. 2030041324 Twist-proof set. Guidance for specification option: Twist-proof set. |
Dimensions | 50 x 135 x 140 mm. Guidance for specification option:
|
VolumetricFlowRate | 0.08 L/s. Guidance for specification option: Flow rate achieved at 3 bar pressure. Manufacturer guidanceCalculation flow rate (cold and hot water): 0.7 L/s. |
Water pressure | 1 bar. Guidance for specification option: Pressure required for minimum flow. |
Type | (F5LM1001) 208.0563.550. Guidance for specification option: Spout projection: 100 mm. (F5LM1002) 208.0563.591. Guidance for specification option: Spout projection: 125 mm. |
