Application

Suitable for use within sanitary facilities.

Description

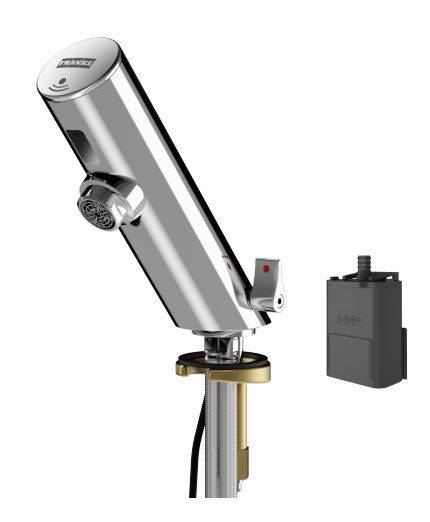

Electronic pillar mixer tap.


Features and benefits:

  • Opto-electronically controlled for use within sanitary facilities.
  • For connection to hot and cold water via hoses with integrated backflow preventer and strainers.
  • Control electronics, solenoid valve cartridge and sensor are in all-metal housing, high polished chromium-plated brass, with temperature lever and adjustable, turn-proof temperature stop.
  • Aerator provided with integrated flow regulator at 6 L/minute.
  • Features include: Activated water hygiene flushing 24 hours after last activation and safety switch-off with continuous reflection and saving of statistical data.
  • With option for parameterization and communication via optional, bidirectional remote control.
  • With either battery compartment or in-wall power supply.
  • Sensor operation, tap hole mounted.

General information

Finish

Chrome

Material

Brass

Length

150 mm

Width

45 mm

Height

160 mm

Uniclass

Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Product range

Taps

Specification data - Washbasin thermostatic water supply sets

Form

Sensor operation, tap hole mounted.

Materials

-

Body

Brass.

Finish and colour

Chrome plated.

Integral accessories

2030003033 Solenoid valve cartridge.

2030012758 Thermostatic mixing valve.

Remote control

Not required.

Two variants available.

Accessories/ Other requirements

Not required.

2030003033 Solenoid valve cartridge.

Guidance for specification option:

Solenoid valve cartridge.

2030012758 Thermostatic mixing valve.

Guidance for specification option:

Thermostatic mixing valve.

Dimensions

45 x 150 x 160 mm.

Guidance for specification option:

Overall dimension.

Manufacturer guidance

  • Spout projection: 100 mm.
  • Diameter (nominal): DN15.
  • Inlet: G 3/8".


VolumetricFlowRate

0.1 L/s.

Guidance for specification option:

Flow rate achieved at 3 bar pressure.

Manufacturer guidance

Calculation flow rate: 0.07 L/s.

Water pressure

1 bar.

Guidance for specification option:

Pressure required for minimum flow.

Ingress protection (IP) rating

IP59K.

Type

(F3EM1001) 208.0563.599.

Guidance for specification option:

With battery compartment including 6 V lithium battery (CR-P2) for installation under the washbasin.

(F3EM1003) 208.0563.600.

Guidance for specification option:

With in-wall power supply 100–240 V AC.
