Exempla - Fencing system
Application

  • Public buildings.
  • Schools.
  • Car parks.
  • Business parks and retail premises.

Description

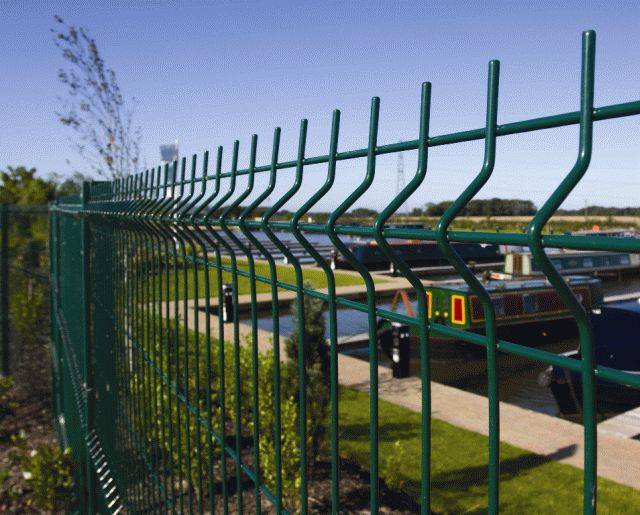

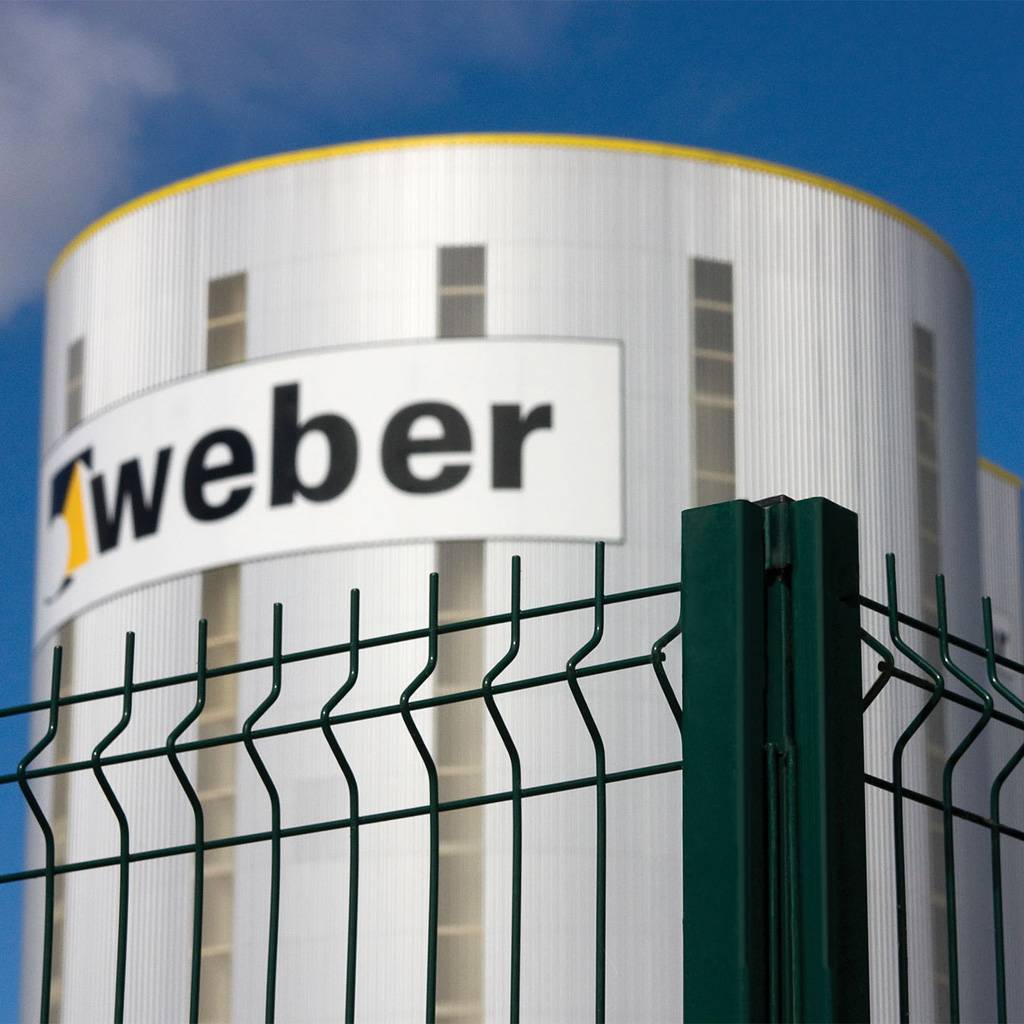

The Exempla™ is a welded mesh panel with longitudinal profiles that forms a rigid fence. Exempla™ panels can be fitted to standard section steel posts, purpose made posts and even wood or concrete posts.

Features:

  • Attractive appearance.
  • Easily fitted to steel, wood or concrete posts.
  • Wide range of height options.
  • RAL colours available.

Applications:

  • Public buildings.
  • Schools.
  • Car parks.
  • Business parks and retail premises.

Standards:

Conforms to BS 1722-14.

General information

Color

Any RAL Colour

Features

Attractive appearance, aesthetically pleasing, effortlessly blends in with surroundings, wide range of height options, full range of RAL colours available, full length clamp bar for secure, fixing and infinitely variable panel stepping within post length

Finish

Galvanized and polyester powder-coated

Material

Galvanized steel

WarrantyDescription

15 Year Manufacturers Guarentee against Defects

Uniclass 2015

Ss_25_14_67_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/27 Open mesh steel panel fencing

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Product Reference

Exempla™

Height

630 mm

830 mm

1030 mm

1230 mm

1530 mm

1730 mm

1930 mm

2330 mm

2530 mm

2730 mm

3030 mm

Posts

Manufacturer's standard

SafeTfix. Fixing systems.

Purpose-made

Insert requirements.

Colour and finish

Galvanized and polyester powder-coated, RAL colour

RAL 6005 as standard, full spectrum of colours available subject to quantity and price.

Anti-intruder security topping

Not required

Barbed wire

Double mesh cranks

Razor wire, coiled

Standard product features

Panel width:

2485 mm.

Mesh size:

200 x 55 mm.

Wire diameter:

5 mm.

Top edge projection:

30 mm – can be inverted to give flush top edge.

Fixing:

Channel clamp bar with through fixings or SafeTfix.

Product Options

Posts:

In addition to the standard posts, many variations are available to accommodate site requirements:

  • Alternative sections.
  • Wall fixing plates, cranked posts or base plated.
  • Cranked or straight extensions for barbed or razor wire.
  • Cranked panels.

Triangular folds:

All panels can be manufactured with two, three or four folds to the mesh, depending on the height chosen. Contact manufacturer for further details.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 2.0
IFC
- 1 2.0
Download now from NBS National BIM Library
