Evershade Shade Sail

Evershade Shade Sail

Able Canopies Ltd

The Evershade is a waterproof shade sail that features an aluminium frame. It is available in 3 m x 3 m to 6 m x 6 m, multiple structures can be added together to cover larger areas.

Jump to:
+44 (0)800 389 9072 www.ablecanopies.co.uk
Description

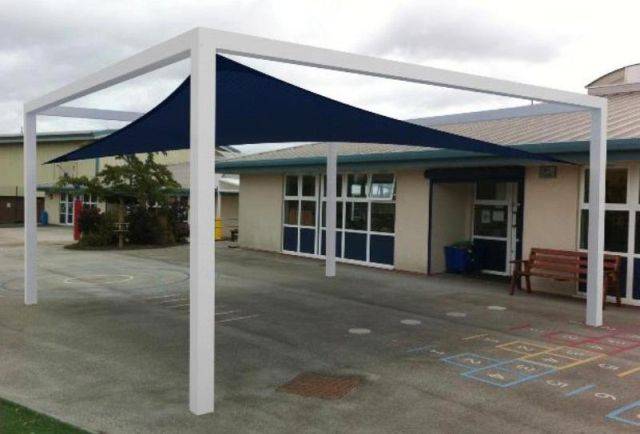

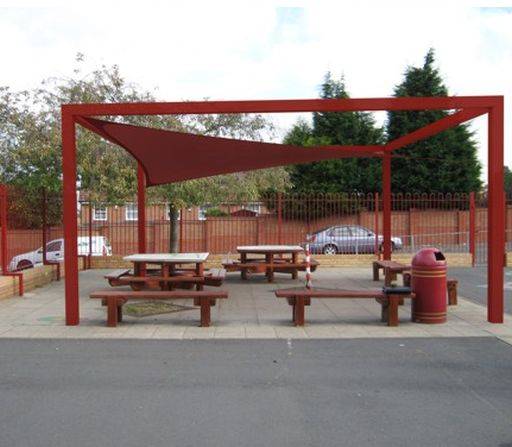

A steel framed waterproof, tensile, square structure available in modular squares from 3 x 3 m to 6 x 6 m. Multiple sections can be added together to create extra-large structures.

The Evershade is a contemporary, well-designed steel canopy that is covered with commercial grade, waterproof tensile fabric that has high strength with a light weight of 590 g/m². It has reinforced webbing to the edges of the fabric for additional strength. The fabric is white as standard however there are 39 other vibrant, soothing or metallic colours to choose from which are available at an additional cost.

General information

Color

fabric suppied in white - 39 additional colours available at additional cost

Material

Steel

Uniclass 2015

Pr_20_65_78_58 Open sided sheltersPrimary

CAWS

B91/330 Canopy

Specification data - Open sided shelters

Product Reference

Evershade Shade Sail

Height

Insert requirement.

Colour

-

Sail fabric

White

Standard.

Special order

Insert requirement, 39 additional colours available.

Framework

RAL 3000 Flame Red

RAL 5005 Signal Blue

RAL 5010 Gentian Blue

RAL 5012 Light Blue

RAL 6001 Emerald Green

RAL 6005 Moss Green

RAL 7001 Silver Grey

RAL 7016 Anthracite Grey

RAL 8007 Fawn Brown

RAL 9003 Signal White

Standard.

RAL 9005 Jet Black

RAL 9006 White Aluminium

Special order

Insert requirement.

Accessories

None

Post pads

Standard product features

Roof fabric:

590 g/m² waterproof tensile fabric, 252/250 daN/5 cm strength.

Framework:

  • Main frame: Constructed from 50 x 150 mm steel box section with a 10 mm thick base plate.
  • Eaves beam: Constructed from 150 x 150 mm steel box section and is connected to the posts with an internal fixing system.

Finish:

Powder coated.

Weather resistance:

The tensile fabric is UV stabilized offering the highest UV protection. It blocks up to 99% of the sun's harmful UV rays. It will not absorb moisture and is designed to perform well in all normal weather conditions.

Guarantee:

The tensile fabric offers a guarantee of up to five years with a ten-year life expectancy and the framework has a life expectancy of 25 years.

Fire performance:

Tensile fabric tested to BS 7837.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 4 2.1
IFC
- 4 2.1
Download now from NBS National BIM Library
