Everdry Stepped Cavity Tray for Brickwork (75 mm coursing/ lead)

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

Timloc Building Products

A stepped cavity tray system for masonry construction.

Jump to:
+44 (0)1405 765567 www.timloc.co.uk
Description

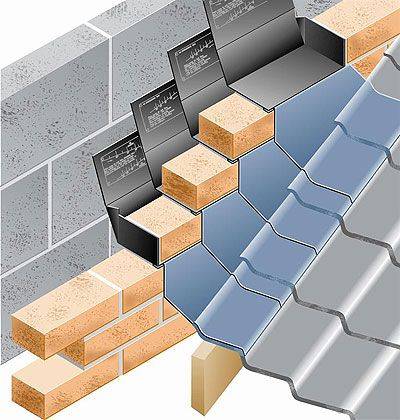

Everdry is a stepped cavity tray system. This product with a lead flashing is for brickwork construction of 75 mm course heights, at the abutment of roofs (having a pitch of 25° or greater) with cavity walls having a cavity width between 50 mm and 110 mm and with a maximum external leaf thickness of 120 mm.

Features:

  • Project specification and scheduling service available.
  • Supplied with factory fitted lead flashing ready cut to suit the pitch of the roof and type of roof covering.
  • 195 mm high back upstand.
  • Adjustable upstand to cover 50–110 mm cavities.
  • Roof pitch marks on tray upstand to give installation guidance.
  • Optional longer tray for roof pitches between 17.5° and 25°.
  • Cavity tray builds into the outer leaf only to speed up installation and allow both inner and outer leafs to be built independently if required.
  • BBA approved.

General information
Features

Project specification and scheduling service available

Supplied with factory fitted lead flashing ready cut to suit the pitch of the roof and type of roof covering

195 mm high back upstand

Adjustable upstand to cover 50–110 mm cavities

Roof pitch marks on tray upstand to give installation guidance

Optional longer tray for roof pitches between 17.5° and 25°

Cavity tray builds into the outer leaf only to speed up installation and allow both inner and outer leafs to be built independently if required

BBA approved

Material

2 mm thick medium density polyethylene

Uniclass 2015
Preformed cavity trays (Pr_25_57_21_66)Primary
Specification data - Preformed cavity trays
Product Reference

Everdry Stepped Cavity Tray 75 mm Course Height With Attached Lead Flashing

Location

As shown on drawings

Lead length

Long

Medium to high profile tiles.

Short

Slates and low profile tiles.

Intermediate tray, product code

Not required

20001

Right hand, length 225 mm.

20002

Left hand, length 225 mm.

Stopend starter tray, product code

Not required

20031

Right hand, length 225 mm.

20032

Left hand, length 225 mm.

Corner starter tray, product code

Not required

20041

Right hand, length 225 mm.

20042

Left hand, length 225 mm.

Ridge tray, product code

Not required

20061

Length 420 mm.

Standard product features

Material:

2 mm thick medium density polyethylene.

Attached flashings:

Code 4 milled lead.

Colour:

Black.

Product Options

Lead length:

Generally short for slates and flat or low profile tiles, long for all other profiles. Contact Alumasc Timloc for confirmation.

Intermediate trays:

For roof pitches 10° to 15° refer to manufacturer.

Third party certifications
  • Certificate number: 93/2937
