EV Block Mini - EV Charger Installation Base Foundation
Verified by manufacturer 1 month ago
Electric vehicle (EV) foundation, specifically for use with EV Tower pedestals.
Application
Suitable for domestic dwellings where wall mounting the EV charger is not possible.
Also suitable for installation in smaller commercial settings.
With 2 x 110 mm duct entries, the EV Block Mini can be installed in a line at the edge of a car park, or through the center of an array of parking spaces.
Description
The smallest of the EV Block range, the EV Block Mini is suitable for installation with EV Tower pedestal products and Simpson & Partners EV Chargers.
A passive plate with a non-slip surface can also be installed for passive installations, future-proofing the project.
Features and benefits:
- Precast concrete EV charger base for EV charging stations.
- Compatible with the EV Tower pedestal.
- EV Mini Block can be fitted with a protective cover plate for future-proofing installations (sold separately).
- Two entry points for ducting.
- Uniform finish.
- 100% recyclable.
- Can be installed in all weather conditions.
- Made with 35% reduced carbon concrete.
- Compact and hard-wearing.

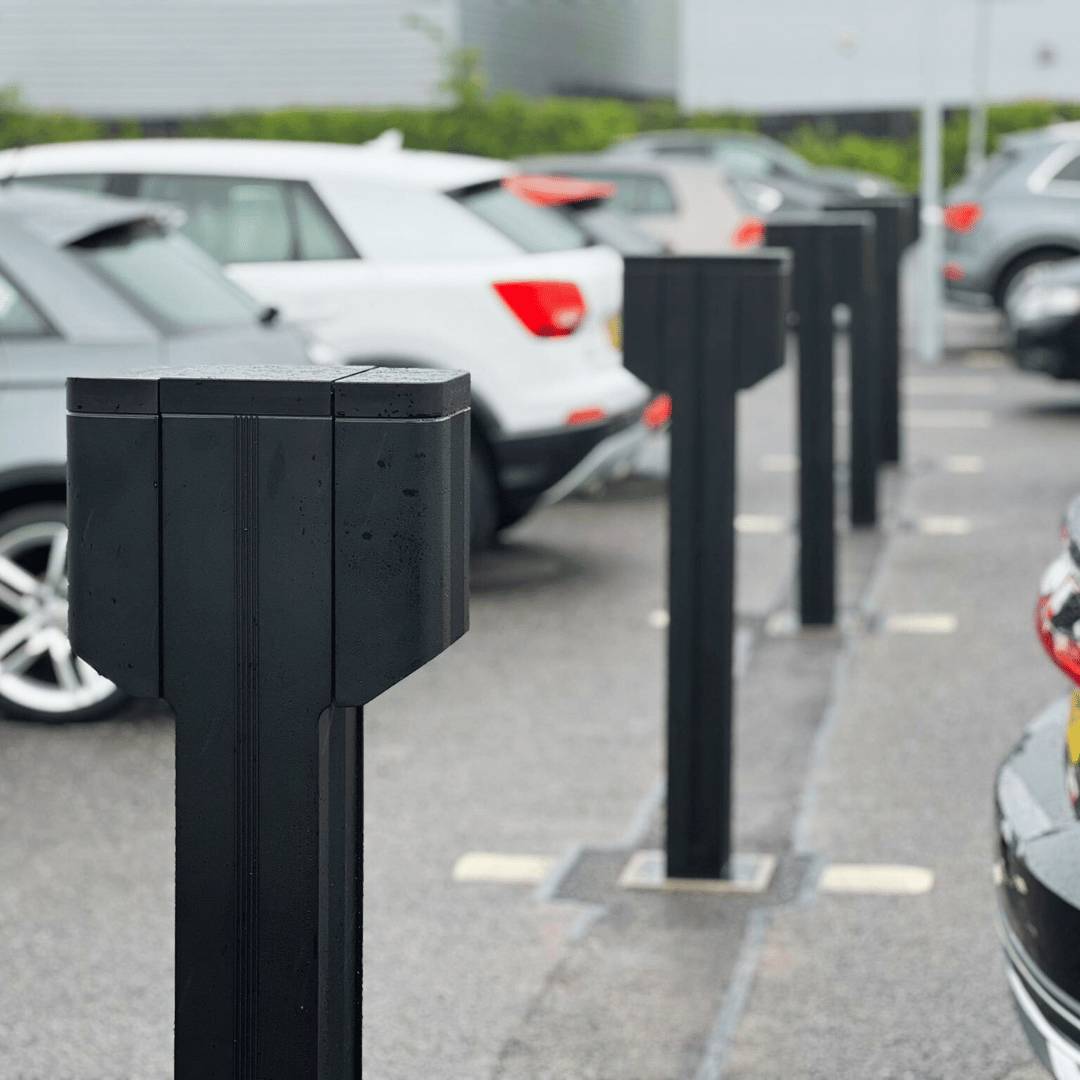

For use with the EV Tower pedestal range to provide single or dual mounted charger supports, for EV charging points including EVEC, Easee, Rolec, Hypervolt, Zappi, Tesla, CTEK, Zaptec, Siemens, PodPoint and many more. The pedestals can be specified with cable hooks and Type-2 plug holsters. Consult manufacturer for details.
General information
Color | Beige |
Finish | Cement |
Material | Precast concrete |
Shape | Square |
Length | 300 mm |
Width | 300 mm |
Height | 450 mm |
Warranty description | Other |
Uniclass | |
CAWS | V90/590 Equipment V90/445 Electric vehicle charging points |
Specification data - Concrete plinth units
Standard | To BS EN 13369/ BS 8110. |
Panel dimensions | 450 x 300 x 300 mm. |
Unit weight (maximum) | 79 kg.Guidance for specification option: Block weight: 78 kg. Plate weight: 1 kg. |
Finish to exposed faces | Cement. |
Accessories | Not required. Passive cover plate. Guidance for specification option: 251 x 251 x 8 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Precast concrete |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 13.13 kg CO₂ eq/unit Self declared |
Recyclability | 100% recyclable. Can be crushed for construction aggregate |
Expected Life | 30 year |
