European Rated Access Floor System

Third party certifications:

QA Certificate
Certificate type

Raised access floor to BS EN 12825.

Jump to:

+44 (0)1482 781701 www.kingspanaccessfloors.co.uk

Description

Raised access floor to BS EN 12825.

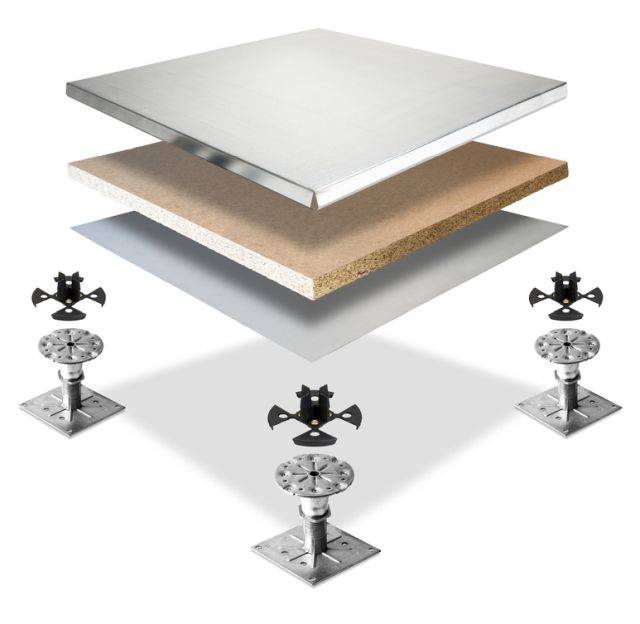

The fully encapsulated panel comprises of a wraparound steel top and a steel base plate that are adhesive bonded and mechanically stitched around a particle board core for greater strength and durability.

The system is manufactured in an advanced energy-efficient manufacturing facility where 94% of the energy used is supplied from sustainable sources.

Features and benefits:

Finished floor heights from 60–1200 mm are available using standard pedestals. For heights outside of this range, alternative pedestals are available. Consult manufacturer for details.

FSC® certified.

General information

Uniclass 2015	Ss_30_20_70_70 Raised access floor systemsPrimary
CAWS	K41/130 Raised access floor

Specification data - Raised access floor systems

Product Reference	European Rated Access Floor System
Type	RG3 Class 3. System weight: 31 kg/m². Ultimate load: >8 kN. RG5 Class 5. System weight: 36 kg/m². Ultimate load: >10 kN. RG6 Class 6. System weight: 44 kg/m². Ultimate load: >12 kN.
Panel size	600 x 600 mm Standard. 600 x 900 mm (Class 5) Optional for perimeter detailing. 600 x 900 mm (Class 6) Optional for perimeter detailing.
Pedestals	-
Type	Alpha III For voids ≥610 mm. Alpha V For voids between 25–610 mm. EuroPed For voids between 16–349 mm. RG3 only.
Material	Nickel plated Optional. Steel Standard.
Adhesive	Acoustic pedestal adhesive Manufacturer's standard
Accessories	None Pivot-head adaptors
Stringers	Clip-on stringer For lateral stability in 600–800 mm void heights. Screw-down stringer For lateral stability in >800 mm void heights.
Underfloor plenum	Not required Required
Additional requirements	None Simploc screw down Pre-drilled holes for fixing, whilst allowing full access to the void.

Standard product features

Technical characteristics:

Thickness: 31 mm. RG6: 32 mm.

Panel size: 600 x 600 mm.

Core material: 30 mm high density particle board.

Category: Loose lay.

Fire reaction (to EN 13501-1): Bfl-s1.

Fire resistance (to EN 13501: 2) R30r/ RE30r (RG5 only).

Airborne and impact sound insulation (Dnfw): Varies depending on type, see technical literature for details.

Product Options

Pedestals:

Steel pedestals are coated with an environmentally friendly clear passivation as standard.

Underfloor plenum:

The system can be supplied with neoprene gaskets to minimize air loss through the raised floor surface from the underfloor plenum to aid air circulation, distribution and management.
