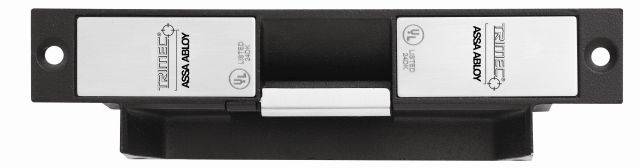

ES200 Series Electric Strike

Application

  • High traffic areas.
  • Fire rated door sets (Australian Specific).
  • Open in/open out doors.
  • Suitable for use with all access control systems.

Additional information for this product is available from:http://www.trimec.co.uk/en/site/trimec1/Products-2/Electric-Strikes/

Description

The ES200 series electric strikes are high security products manufactured from solid stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.

These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12 or 24 V DC. They offer a strong, dependable and long-lasting electric strike solution.

Key features:

  • Fail safe/fail secure changeable on site.
  • High security.
  • One million cycles endurance rating.
  • Stainless steel locking pins.
  • Mounting kit supplied.
  • Five year warranty.

Standards:

  • S3 (Security) and D3 (Durability) Australian lock standard (AS4145.2-1993).
  • Approved to UL1034 (highest level).

Applications:

  • High traffic areas.
  • Fire rated door sets (Australian Specific).
  • Open in/open out doors.
  • Suitable for use with all access control systems.

Additional information for this product is available from:http://www.trimec.co.uk/en/site/trimec1/Products-2/Electric-Strikes/

General information

Specification data - Electric strikes and faceplates

Product Reference

110201-000

12 V PTL.

110202-000

12 V PTO.

110203-000

24 V PTL.

Standard product features

General:

  • Solenoid: Rated for continuous use.
  • Holding force: 850 kg.
  • Body: Solid stainless steel.
  • Keeper: Stainless steel.

Product Options

Product reference:

Key: PTL: Power to lock, PTO: Power to open.
