Erie Suspended Feature Lighting
Application

For enhancing interior design in workplaces (particularly suitable for offices).

Description

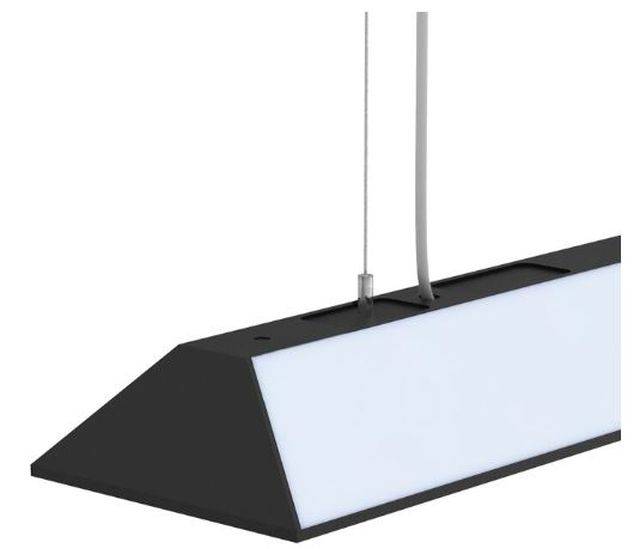

Suspended linear feature LED lighting with inclined edges.


Features and benefits:

  • Thin, seamless design.
  • Offers a visually striking illumination, using indirect light distribution.
  • A range of size and colour variations are possible.
  • Suspension wires slot and slide into profile grooves.
  • High level of visual comfort.
  • Internal drivers are supplied.

Also available as surface mounted (specified separately).

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Feature linear

Size

Seven lengths, ranging from 616–2296 mm. 37 mm depth.

-

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Standards

Directive 2014/30/EC - EMC.

Luminaire description

Suspended, rectangular, linear.

Classification

-

Electric shock

To BS EN 60598-1, Class I.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Loop wiring.

Nominal voltage

220–240 V.

Luminaire power factor

0.95.

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471.

Safety standard

Non-SELV.

Initial LED luminaire efficacy (minimum)

103 lm/W.

Wattage

20.7 W/ 2140 lm up to 82.8 W/ 8180 lm.

Colour temperature

3000K.

4000K.

Colour rendering index (Ra)

80.

Beam angle

180°.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Non-dimming.

Standard.

Accessories

Not required.

Ceiling cup, 80 x 80 x 32 mm.

Available white, black or silver.

Central modules.

Insert size requirements.

Corner, 90° left, 640 mm.

36 W/ 4280 lm.

Corner, 90° right, 640 mm.

36 W/ 4280 lm.

End modules.

Insert size requirements.

Power cable, 2000 mm, 4 core.

Power cable, 2000 mm, 5 core.

Start central modules.

Insert size requirements.

Start modules.

Insert size requirements.

Suspension kit, 2000 mm.

Product Reference

Erie Suspended

Control gear position

Integral within luminaire.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Length

616 mm.

896 mm.

1176 mm.

1456 mm.

1736 mm.

Show more

Optics

Opal Diffuser.

Colour

Black.

Silver.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<10.

Longitudinal

<10.

Efficiency

96%.

Frequency

50–60 Hz.

Output direction

Indirect.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
