Erie Surface Linear Lighting

Name: Erie Surface Linear Lighting
Brand: hsLuFgmRUF6ddfs3zMnobv
SKU: q3t8WnxoaFyBhioQzo6sWk

299 Lighting

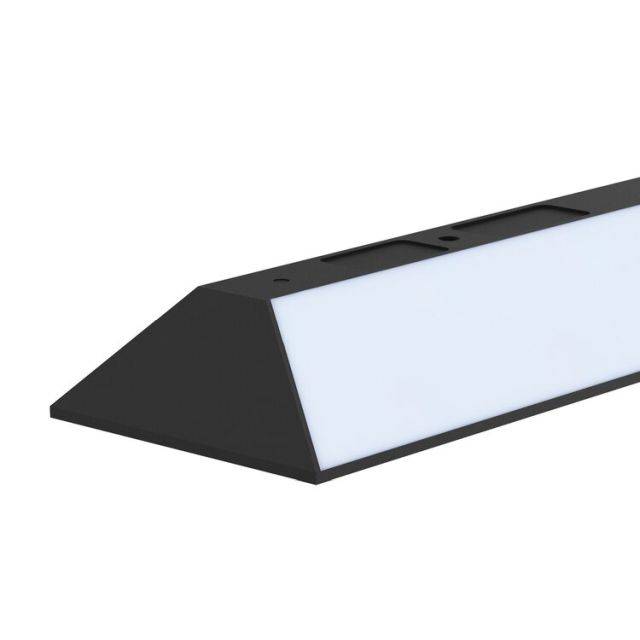

Surface mounted linear feature LED lighting with inclined edges.

Jump to:

+44 (0)117 942 2512 www.299lighting.co.uk

Application

For enhancing interior design in workplaces (particularly suitable for offices).

Description

Surface mounted linear feature LED lighting with inclined edges.

Features and benefits:

Thin, seamless design.

Offers a visually striking illumination, using indirect light distribution.

A range of size and colour variations are possible.

Suspension wires slot and slide into profile grooves.

High level of visual comfort.

Internal drivers are supplied.

Also available as suspended (specified separately).

Application:

For enhancing interior design in workplaces (particularly suitable for offices).

General information

Features	Unique chamfered design, suitable for spaces with low ceilings
Finish	Polyester powder coat
Material	Extruded aluminium profile with LEDs
Shape	Feature linear
Size	Seven lengths ranging from ranging from 616-2296 mm. 37 mm depth
Uniclass 2015	Pr_70_70_48_85 Surface luminairesPrimary
CAWS	V90/45 Luminaires V90/510 Luminaires

Specification data - Surface luminaires Enhanced data

Product Reference	Erie Surface
Standards	Directive 2014/30/EC - EMC
Luminaire description	Surface mounted, rectangular, linear
Classification	-
Electric shock	Class I
Ingress protection (minimum)	IP20 Rated
Suitability for direct mounting on normally flammable surfaces	Not suitable for direct mounting on normally flammable surfaces
Circumstances of use	Normal use
Rated maximum ambient temperature	25°C
Control gear position	Integral within luminaire
Supply circuit conductor connections	Loop wiring
Nominal voltage	220-240 V
Luminaire power factor	0.95
LED luminaires	-
Performance standards	EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471
Safety standard	Non SELV
Initial LED luminaire efficacy (minimum)	103 lm/W
Wattage	20.7 W/ 2140 lm up to 82.8 W/ 8180 lm
Colour temperature	3000K 4000K
Colour rendering index (Ra)	80
Useful life	50 000 hours (L80B20)
Dimming protocol	DALI Dimming Non-dimming Standard.
Emergency version	-
Duration of emergency mode (minimum)	No emergency 0 hours.
Accessories	Not required Wall fastening bracket
Length	616 mm 896 mm 1176 mm 1456 mm 2016 mm 2296 mm
Optics	Opal Diffuser
Colour	Black White Silver RAL Insert requirements.
Unified glare rating	-
Transverse	<10, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards
Longitudinal	<10
Driver	-
Efficiency	96%
Frequency	50-60 Hz
Output direction	Direct

Standard product features

Colour:

Available in three standard colours or bespoke RAL colour.

Features:

Unique chamfered design, suitable for spaces with low ceilings.

Finish:

Polyester powder coat.

Material:

Extruded aluminium profile with LEDs.

Shape:

Feature linear.

Size:

Seven lengths ranging from ranging from 616-2296 mm. 37 mm depth.

Warranty:

Two-year warranty.

Recycled content:

Aluminium and packaging.

Recyclability:

Frame and packaging.

Country of origin:

UK.

Environmental information

Recyclability	Frame and packaging
Recycled content	Aluminium and packaging

Erie Surface Linear Lighting

Features

Finish

Material

Shape

Size

Uniclass 2015

CAWS

Product Reference

Erie Surface

Standards

Directive 2014/30/EC - EMC

Luminaire description

Surface mounted, rectangular, linear

Classification

Electric shock

Class I

Ingress protection (minimum)

IP20 Rated

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces

Circumstances of use

Normal use

Rated maximum ambient temperature

25°C

Control gear position

Integral within luminaire

Supply circuit conductor connections

Loop wiring

Nominal voltage

220-240 V

Luminaire power factor

0.95

LED luminaires

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471

Safety standard

Non SELV

Initial LED luminaire efficacy (minimum)

103 lm/W

Wattage

20.7 W/ 2140 lm up to 82.8 W/ 8180 lm

Colour temperature

3000K

4000K

Colour rendering index (Ra)

80

Useful life

50 000 hours (L80B20)

Dimming protocol

DALI Dimming

Non-dimming

Emergency version

Duration of emergency mode (minimum)

No emergency

Accessories

Not required

Wall fastening bracket

Length

616 mm

896 mm

1176 mm

1456 mm

2016 mm

2296 mm

Optics

Opal Diffuser

Colour

Black

White

Silver

RAL

Unified glare rating

Transverse

<10, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards

Longitudinal

<10

Driver

Efficiency

96%
