Description

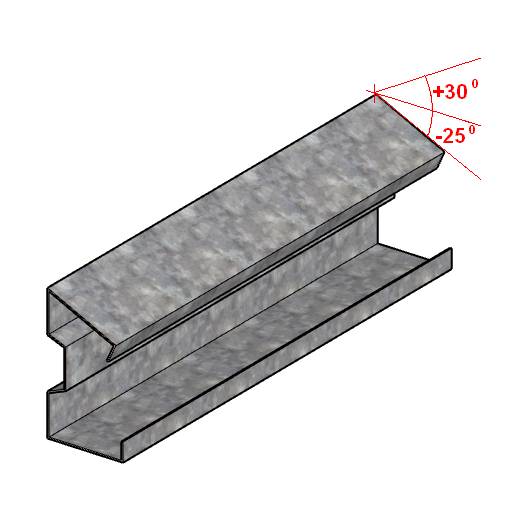

Combines the fuctions of purlin, cladding rail and gutter support when used at the eaves position. The top flange angle can be specified to slope upwards in 1 degree increments to a maximum of 30 degrees or downwards to 25 degrees. Generally used for monopitch or curved roof systems and also where a precise slope angle is required.

General information
Material

Hot dipped zinc coated steel

Uniclass 2015
Cold-formed galvanized steel sections (Pr_20_76_51_21)Primary
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 5 2.1
Revit
- 5 2.1
Download now from NBS National BIM Library
