Envello Board & Batten+ Cladding - Wood-free Composite Cladding Boards
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type
CWCT Certificate
Certificate type
Wood-free composite cladding boards that replicate real timber board and batten.
Application
Envello cladding is extremely versatile and can be used for most low-level cladding areas as an alternative to timber cladding (subject to building control). Areas include:
- Residential buildings (under 11 m);
- Commercial buildings (under 18 m);
- Garden rooms;
- Home offices;
- Furniture;
- Street furniture;
- Cycle shelters;
- Outdoor kitchens.
Envello can be used as the decorative face for most outdoor designs, as long as it is fixed to a structural element. All areas subject to the relevant government regulations/building standards.
Description

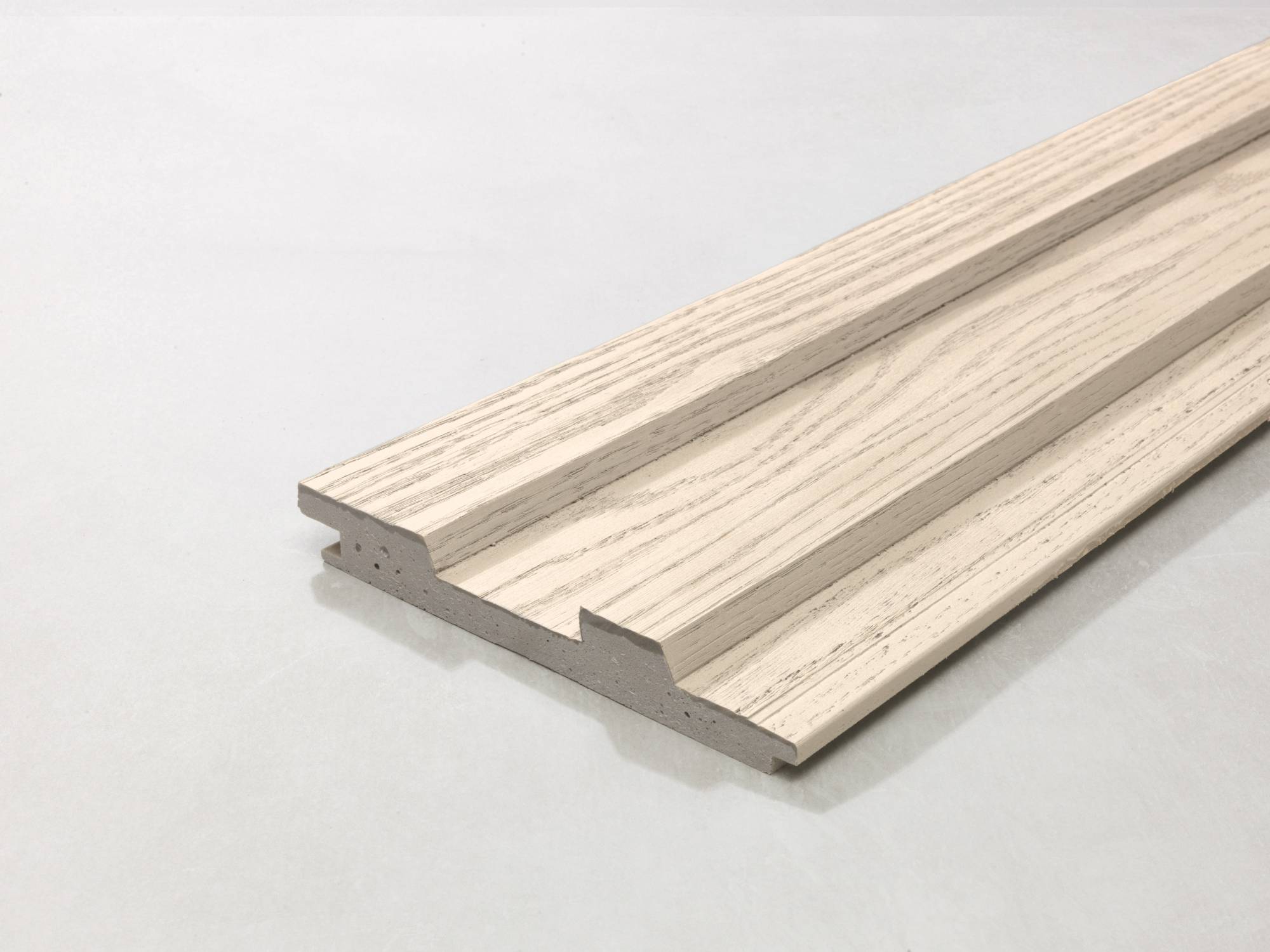

The Board & Batten+ composite cladding profile has been moulded from real oak masters with different widths and grain patterns, creating an exclusive balance for both contemporary and traditional designs. With a tongue and groove profile that only requires fixings through the tongue, ensuring the fixing is hidden.
Tested to the rigorous demands of BS EN 13501-1, the Board & Batten+ system achieves a classification of Euroclass D.
Features and benefits:
- Hand moulded and coloured - Skilfully hand-crafted to ensure a high quality, premium product.
- Natural wood look - Moulded from selected oak for an organic, realistic wood-grain appearance.
- UK made, UK backed - Designed and manufactured in the UK, tested independently globally.
- Fire rated system - Certified to a Euroclass D rating by a UKAS-accredited laboratory.
- Recycled materials - Recycled materials and renewable biopolymers are used within our boards.
- Increased thermal performance - The exclusive composition enhances thermal performance.
- Integrated UV stabilizers - UV-stabilized for better performance and fade resistance over time.
- Wood free - Wood-free composition prevents rot, warping and insect infestation.
- Low maintenance - No staining or oiling needed. Only seasonal cleaning required.
- Impact and weather resistant - Elastomeric surface ensures increased resilience against natural weathering.
- Mould resistant - Unlike wood, it is actively resistant to mould and fungus.
- Moisture resistant - Due to the non-porous composition, no sealing is required.
- Maximum durability - Fibre-reinforced core provides strength and durability whilst reducing weight.
General information
Color | Black Guidance for specification option: Burnt Cedar Brown Guidance for specification option: Antique Oak Cream Guidance for specification option: Limed Oak Gold Guidance for specification option: Golden Oak Grey Guidance for specification option: Smoked Oak |
Finish | Woodgrain Guidance for specification option: Fire rated elastomer chemically melded to the core, with a UV stable 2K coating. |
Material | Composite Guidance for specification option: Blend of natural minerals bonded in a polymer resin, with long fibre reinforcement |
Shape | Rectangle |
Length | 3600 mm |
Width | 200 mm |
Height | 26 mm |
Warranty description | 15 year Guidance for specification option: 15 Year Limited Structural Cladding Warranty |
Uniclass | |
CAWS | H21/10 Vertical timber weatherboarding H21/110 Vertical timber weatherboarding H21/111 Horizontal timber weatherboarding H21/115 Vertical timber weatherboarding H21/116 Horizontal timber weatherboarding H21/15 Horizontal timber weatherboarding |
Specification data - Wood-plastics composite weatherboards
Profile | Tongued-and-grooved. |
Finished size | |
Face width | 200 mm. |
Thickness | 26 mm.Guidance for specification option: 14 mm board + 12 mm batten. |
Surface texture | Wood grain.Guidance for specification option: Timber grained effect. |
Finish | Fire-rated elastomer chemically melded to the core, with a UV stable 2K coating. |
Reaction to fire classification | To BS EN 13501-1, Class D-s3, d0. |
Colour | Antique Oak.Burnt Cedar.Golden Oak.Smoked Oak.Limed Oak.Jarrah. |
Accessories | Envello square corner trim. Guidance for specification option: Size (length x width x depth): 3050 x 50 x 50 mm. Weight: 9.1 kg. Construction: Fire-rated flexible polymer system. Envello reveal board. Guidance for specification option: Size (length x width x depth): 3600 x 146 x 16 mm. Weight: 6.4 kg. Construction: Polymer resin core/ fire-rated elastomer surface layer. None. |
Fixings | Envello coloured head screws. Guidance for specification option: To match board colour. A2 stainless steel, 3.5 x 40 mm. |
Board length | 3600 mm. |
Coverage | 1.53 boards per m². |
Weight | 12.7 kg/m². Guidance for specification option: 8.3 kg per board. |
Wind load | To CWCT/ BS EN 13116, Pass. Manufacturer guidanceTest results available on request. |
Thermal Conductivity: | 0.093 W/m·K. Manufacturer guidanceTest results available on request. |
Flexural strength | To ISO 14125, 10.21 MPa. Manufacturer guidanceTest results available on request. |
Load | To ISO 14125 ultimate load, at 600 mm span: 1568 N; at 400 mm span: 2376 N. Manufacturer guidanceTest results available on request. |
Sustainability data
Country of material origin | United Kingdom Guidance for specification option: Material origin varies however is with UK and Europe. |
Country of product manufacture | United Kingdom |
Material | Composite Guidance for specification option: Blend of natural minerals bonded in a polymer resin, with long fibre reinforcement |
Manufacturing plant location | |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 24.4 kg CO₂ eq/unit Self declared |
Recyclability | Guidance for specification option: Not currently recycled but upcycled and used as path edging, planters, seating and other outdoor creations. Municipal incineration of Millboard provides effective energy recovery. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 38 % Guidance for specification option: Over a third of the raw materials used for making the structural core of Millboard is recycled. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
BS EN 13501-1
Board & Batten+ Fire Test certificate
CWCT Certificate
Board & Batten+ Wind Test Report
Literature
Board & Batten+ Spec Sheet
Millboard Collection Brochure 2024
