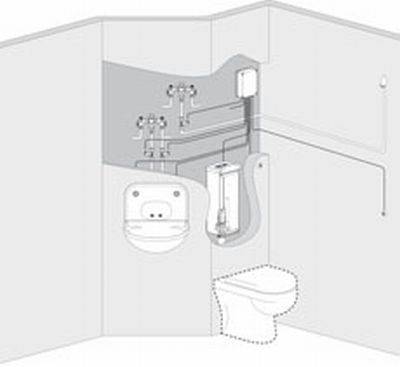

Ensuite Package 4 – Low Risk (Including Shower)
Description

Some Trusts may consider that low risk areas do not require specialist unbreakable sanitaryware. Twyford ceramic Spectrum basins and Galerie WC pans are therefore proposed for these areas. An alternative high security backplate specially designed for the Twyford Spectrum basin is also part of the ‘Low Risk’ ensuite. In every other respect the ‘High Risk’ and ‘Low Risk’ safe ensuites are to the same specification. This means that the operation, technology, products and maintenance are standard throughout.

Components:

  • 1 no. washroom control system.
  • 1 no. TMV3 thermostatic mixing valve.
  • 2 no. solenoid valves.
  • 1 no. high security backplate.
  • 1 no. high security basin.
  • 1 no. WC anti-vandal wave-on sensor.
  • 1 no. WC flushvalve.
  • 1 no. concealed cistern kit.
  • 1 no. Twyford Galerie ceramic WC pan.
  • 1 no. shower sensor for showerhead.
  • 1 no. anti-ligature showerhead.
  • 1 no. additional TMV3 mixing valve.
  • 1 no. additional solenoid valve.

General information

Uniclass 2015

Pr_40_20_93_86 WC and washbasin combined unitsPrimary

CAWS

N13/392 Combined WC and washbasin units

Specification data - WC and washbasin combined units

Product Reference

Ensuite Package 4 – Low Risk (Including Shower)

Accessories

None

AC02-056

Sensor thread extension for 100 mm wall thickness (for WC sensor, showerhead or shower sensor).

AC02-057

Sensor thread extension for 150 mm wall thickness (for WC sensor, showerhead or shower sensor).

AC02-058

Sensor thread extension for 250 mm wall thickness (for WC sensor, showerhead or shower sensor).

AC04-016

Key switch for re-setting lock-outs (for Washroom Control System).

SH00-011

Showerhead temperature blending valve.

SH07-042

High security ceiling showerhead.

VR01-006

Basin/ backplate fixing kit for 100 mm wall thickness.

VR01-007

Basin/ backplate fixing kit for 150 mm wall thickness.

VR01-008

Basin/ backplate fixing kit for 250 mm wall thickness.

VR01-025

High security mirror with white moulded frame.
