This product is no longer available —

Description

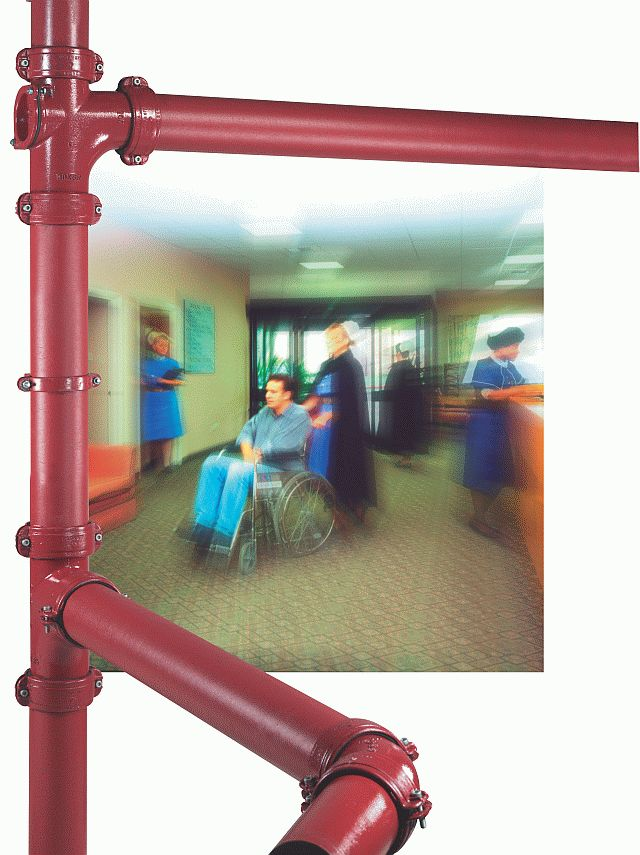

The Ensign systems consist of pipes and fittings of 50–600 mm diameter for above ground applications with 100–600 mm diameter for below ground. Ensign can be completed by cast iron or stainless steel mechanical or push-fit joints and is capable of withstanding up to 5 bar suitably withstrained.

Advantages:

  • Complete pipe system – an above and below ground drainage system.
  • Ductile iron couplings with electrical continuity for above ground.
  • Push-fit drain couplings – simplifying installation.
  • Ductile iron brackets – versatile and lightweight, allowing adjustment without dismantling the pipe system.
  • Acoustic drainage system - with exceed NR30 when fitted with acoustic brackets without pipe wrapping. (PAM have a number of test results at recognised laboratories to support this - consult manufacturer for information).
  • Easy access for maintenance, with an extensive range of access fittings.
  • Economical connections to waste pipes.
  • Superior internal coating for pipes – greater performance against exposure to aggressive substances.
  • Robust strength and no expansion make it the first choice for suspended drainage in basements.
  • New rodding branch for horizontal pipework offering significant installation savings.
  • Biggest range of radius curve branches in compliance with BS EN 12056 (part 2).
  • New multi-waste manifolds in 100 and 150 mm with 6 x 2" bsp inlets for low level connection.
  • Superior mechanical and impact-resistant properties.
  • Made from up to 97% recycled content.
  • 100% recyclable.
  • Predicted life 60 years for soil pipes and 80 years for rainwater.
  • Ensign soil is fire rated A1.
  • Ensign drain is fire rated A2 s1,d0.

Standards:

Manufactured to:

  • BS EN 877: 1999 Kitemark KM51733.

Manufactured under:

  • BS EN ISO 9001: 2015 Quality Assurance Scheme; registered number FM12908.
  • BS EN ISO 14001: 2004 Environmental Standard.

Applicable Standards:

  • BS EN 14366: 2004. Laboratory measurement of noise from waste water systems.
  • BS EN 12056-2 and BS EN 12056-3 Code of practice for gravity drainage systems inside buildings.
  • BS EN 752-1 Code of practice for drain and sewer systems outside buildings.
  • CE marked.

Ensign has been tested to BS EN 13501-1 (Reaction to Fire) and subject to the publication of the updated BS EN 877 will be categorised as A1 Fire rating

Specification data
Product Reference

Ensign

Pipes -
Size (nominal)

50 mm

ABOVE GROUND ONLY.

70 mm

ABOVE GROUND ONLY.

100 mm

125 mm

ABOVE GROUND ONLY.

150 mm

200 mm

250 mm

300 mm

400 mm

500 mm

600 mm

Standard product features

Finish: Pipes Above ground

  • Internal: Two part epoxy lined with an average thickness of 130 microns.
  • External: Red anti-corrosive primer on above ground pipes, with an average thickness of 40 microns.
  • Fittings are protected internally with a red powder epoxy resin electrostatically applied to an average thickness of 150 microns. Externally coated to an average thickness of 70 microns.

Finish: Pipes below ground

  • Internal: Two part epoxy lined with an average thickness of 250 microns.
  • External: initial flame applied anti-corrosive zinc coating at 130gr/m2 then painted using a grey acrylic primer with an average dry thickness of 40 microns.
  • Fittings are protected internally and externally with a grey powder epoxy resin electrostatically applied to an average thickness of 150 microns.

Product Options

Fittings:

Consult manufacturer's literature for product codes/ details and available diameters.

- Pipes:

  • 3 m double spigot.
  • Access, Transitional, movement, universal or tapered pipe connectors.
  • Single or double boss pipes with compression and bsp connections and strap-on fittings.

- Bends:

  • Short, medium or long radius, with long tail options.
  • Rear access range available.

- Branches:

  • Single equal, unequal or double swept radius and tees.
  • Long arm or corner options available.
  • New rodding branch 100x100x45° and 90°.
  • Offsets with 75 or 130 mm projection available.

- Other fittings:

  • Manifolds to accommodate 38/ 32 or 50 mm waste.
  • New mult-waste manifold for low level waste connection 6 x 2" bsp.
  • Brackets: A wide range in ductile iron or mild steel.
  • Couplings: Ductile iron with built-in electrical continuity, push-fit socket, high performance stainless steel or transitional.
  • Stack support pipes and brackets.
  • Pre-formed joints.
  • Expansion plugs.
  • Blank ends.

Drainage:

Consult manufacturer's literature for product codes/ details and available diameters.

- Traps:

  • Plain with/ without bottom access.
  • Complete with gully inlets, inspection chambers or adjustable floor drains.
  • Gratings and covers: plain, solid or sealed cover and frame (square/ circular).

- Accessories:

  • Loose puddle flanges.
  • Roof connectors and outlets.
  • A range of blank ends.
  • Inspection chambers.
