Ennerdale Junior Cantilever Walkway

Ennerdale Junior Cantilever Walkway

Able Canopies Ltd

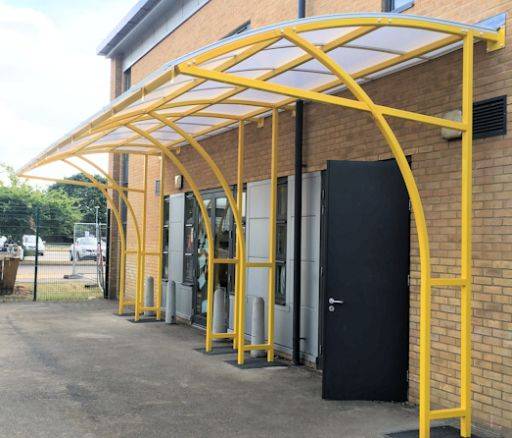

The Ennerdale Junior is a stunning walkway that features a curved steel frame and is covered with polycarbonate panels. It has an unlimited length and max. 3 m span.

Jump to:
+44 (0)800 389 9072 www.ablecanopies.co.uk
Description

A cost-effective free-standing walkway that is ideal for many organisations throughout the private and public sector including schools, colleges, shops and leisure centres. This contemporary walkway structure has a cantilever design and is constructed from steel with polycarbonate roof panels which are available as clear or opal. The walkway has a life expectancy of 25 years.

General information

WarrantyDescription

10 years

Uniclass 2015

Pr_20_65_78_58 Open sided sheltersPrimary

CAWS

B91/330 Canopy

B91/335 Covered walkway

Specification data - Open sided shelters

Product Reference

Ennerdale Junior Cantilever Walkway

Size

-

Width

Insert requirement, available up to 3 m.

Length

Insert requirement, available unlimited, maximum 4 m span between posts.

Height

Insert requirement.

Glazing

-

Material

Solid polycarbonate, 5 mm thick

Structured polycarbonate, 16 mm thick

Colour

Clear

64% light transmission.

Opal

33% light transmission.

Framework

-

Finish

Galvanized

Galvanized and powder coated

Powder coated

Colour

Not applicable

For galvanized only.

RAL 3000 Flame Red

RAL 5005 Signal Blue

RAL 5010 Gentian Blue

RAL 5012 Light Blue

RAL 6001 Emerald Green

RAL 6005 Moss Green

RAL 7001 Silver Grey

RAL 7016 Anthracite Grey

RAL 8007 Fawn Brown

RAL 9003 Signal White

Standard.

RAL 9005 Jet Black

RAL 9006 White Aluminium

Special order

Insert requirement.

Accessories

None

Post pads

Seating

Standard product features

Framework:

  • Main frame: Constructed from 60 x 60 x 3 mm steel frame.
  • Roof bars: Constructed from 50 x 50 x 2.5 mm steel box section.

Weather resistance:

During the manufacture of the polycarbonate panels, a layer of UV absorber is co-extruded on both sides which forms a barrier, providing high UV protection from the sun.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 5 2.1
Revit
- 5 2.1
Download now from NBS National BIM Library
