Engineering Pack AquaeGUARD
Application

Engineering Packs are universal kits used to create superior and ready to tile floors structures in shower areas or wet room type bathrooms. Suitable for:

  • En-suites and designer bathrooms: Where linear floor drains are used to reduce cuts in floor tiles.
  • Refurbishments and new build projects.
  • Floor and wall structures: Designed for both wood over joist or concrete floors.

Description

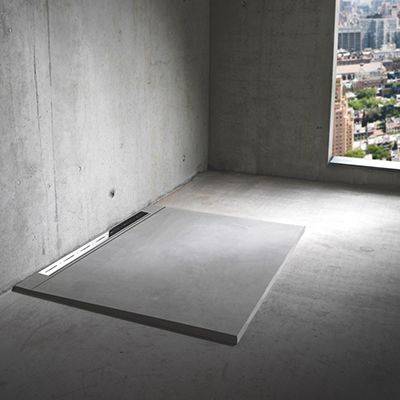

Pre-formed shower module and waterproofing kit (5 m²) suitable for all linear floor gullies.

Universal install kits, comprising lightweight floor module and waterproofing system used to install linear shower gully drains. Suits linear shower channels or floor gullies of all sizes as modules can be fitted together or trimmed on-site. Pre-coated with a ‘polycement’ waterproof finish, modules are used instead of levelling compounds to build floor gradients quickly to a consistent level to channel water towards linear floor drain.

Package contains:

  • Shower module supplied in, one, two or three pieces, size dependant.
  • Waterproofing membrane 5 m² (This product should not be used for standing water or storage of water under pressure).

Features and benefits:

  • Four packs available which include the two key components required to build a wet room shower and match floor drains from all suppliers up to 2000 mm wide.
  • Part A is a shower tray/ module with a flat and level underside with a flat gradient at 1.4% along the upper side.
  • The three ply membrane is manufactured from polymer sheets sandwiched together, and is secured with tile adhesive.
  • To be fully supported across the full surface and fitted into sub-floor recesses using tile adhesive, they require subsequent sealing into the surrounding structure. Also supplied is a sheet waterproofing membrane (Part B); a barrier to protect all substrates from water damage.

Applications:

Engineering Packs are universal kits used to create superior and ready to tile floors structures in shower areas or wet room type bathrooms. Suitable for:

  • En-suites and designer bathrooms: Where linear floor drains are used to reduce cuts in floor tiles.
  • Refurbishments and new build projects.
  • Floor and wall structures: Designed for both wood over joist or concrete floors.

General information

Uniclass 2015

Pr_40_20_06_84 Shower traysPrimary

CAWS

N13/375 Shower units

N13/377 Wet room showers

N13/40 Shower units

Specification data - Shower trays

Product Reference

Engineering Pack AquaeGuard

Type

Engineering Pack A, Linear Floor Gully Up to 1000 mm Long GX09900194

Engineering Pack B, Linear Floor Gully Up to 1350 mm Long GX09900195

Engineering Pack C, Linear Floor Gully Up to 1700 mm Long GX09900196

Engineering Pack D, Linear Floor Gully Up to 2000 mm Long GX09900197

Engineering Pack AquaeGuard Upgrade to 10 m² GX09900198

Standard product features

Technical characteristics:

- Waterproofing (AquaeGUARD™):

  • Roll length: 5 m.
  • Width: 1000 mm.
  • Thickness: 0.4 mm (approximately).
  • Weight: 290 g/m².
  • Approval: ETAG 022 (European guideline) for wet room floors/ walls.
  • Burst pressure: 1.5 bar. Consult datasheet for chemical stability.
  • Temperature stability: -30 to +90°C.
  • Lateral elongation at break point: 120%.
  • Lateral breaking load: 45N/ 15 mm.
  • Longitudinal elongation at break point: 80%.
  • Longitudinal breaking load: 89N/ 15 mm.
  • Adhesive strength: > 0.5 N/ mm.
  • Equivalent air layer: > 80 m.

- Floor module (e-Form 22™):

  • Colour: Dark grey polycement, with solid HardCORE™ foam in white.
  • Overall length: 1000 mm.
  • Profile: 8/ 22 mm shower tray and 14 mm overall.
  • Gradient: 1.4% leading towards one side.
  • Fixing: Common cementitious (powder) tiles adhesive or sand/ cement.
  • Material: Minimum 60 g/L high pressure and temperate pressed EPS.
  • Coating: Mineral polycement.
  • Reinforcement: Full width, with 5 mm gap polymer mesh.
