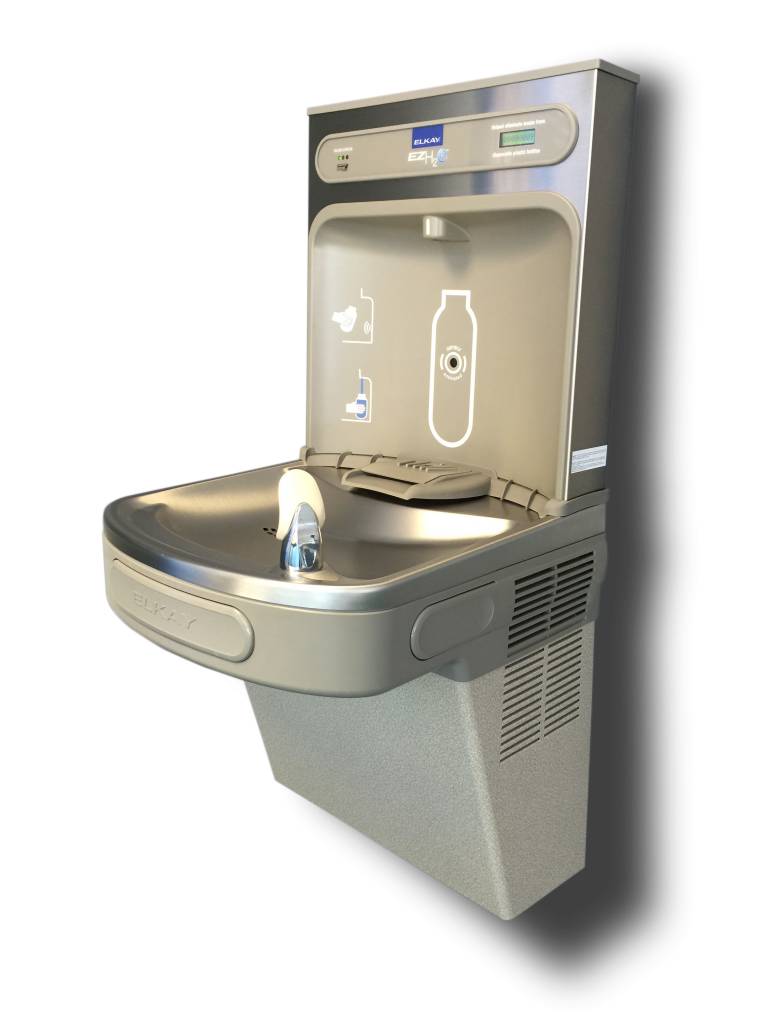

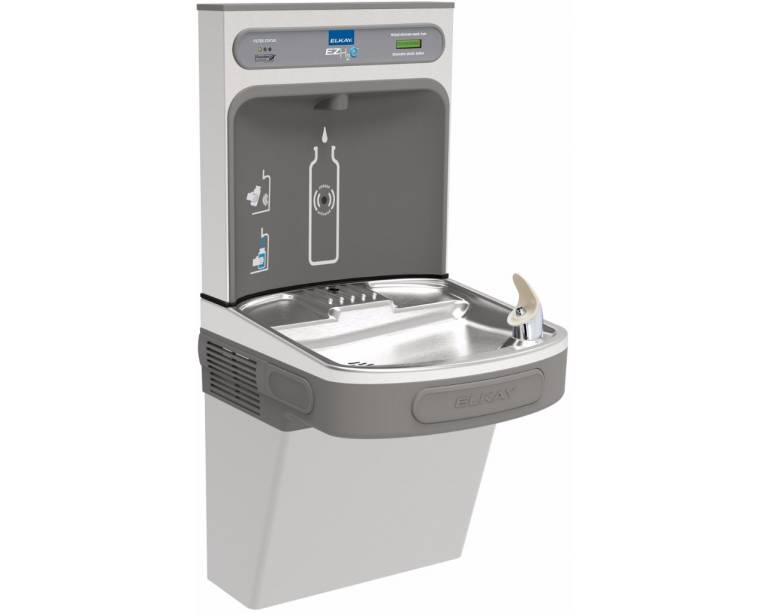

Wall mounted combination bottle filler and water cooler. Filtered and refrigerated.

Features and benefits:

  • Heavy-duty construction, designed to handle high traffic locations in schools, health clubs and universities.
  • 1.1–1.5 gallon per minute flow rate.
  • Flexi-Guard® safety bubbler prevents accidental mouth injuries and is antimicrobial
  • Users can track the number of single use bottles they have kept from landfill with the Green Ticker Display™.
  • Visual LED filter monitor alerts when the 3000 gallon capacity WaterSentry® Plus filter needs replacement, making maintenance easy.
  • Bottle filler has touchless sensor activation.
  • Streamlined, space-saving appearance.
  • Stain- and fingerprint-resistant finish.
  • Bottle filler has an automatic shut off after 20 seconds without use.
  • Stream height regulator helps to prevent overflow or messy spillage.
  • In-line strainer and silver ion antimicrobial protection are included to remove dust and dirt particles larger than 0.14 mm.
  • Real drain system eliminates standing water.
  • Manufactured with a waterway system utilizing copper components and lead-free material.
  • Comes with an advanced pressure cooler system, which is fully insulated with EPS foam to meet UL requirements for self-extinguishing material.
  • Sensitive push bar mechanism and raised printing means this product meets the requirements set forth of the Americans with Disabilities Act (ADA).
  • Sensitive push bar mechanism and raised printing means this product meets the requirements set forth of the Americans with Disabilities Act (ADA) and the Equality Act 2010.
  • WRAS and BREEAM approved, and Greenspec® listed.
  • Manufacturer provides a five-year limited warranty on any refrigeration systems; one-year warranty on electrical components and water system.
  • Meets the requirements of the Safe Drinking Water Act.

General information



ADA Approved, BREEAM Approved, Filtered, GreenSpec Listed, NSF 61/372 lead free, Refrigerated, Sensor Operated, Stainless Steel, WRAS Approved


Light Grey Granite (LG) or Stainless Steel (S) cooler panels




483 x 454 x 992 mm


5 Year Limited Warranty on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation

Uniclass 2015 Water coolers (Pr_40_70_15_96)
Specification data
Product Reference






Cooler cabinet finish

Light grey granite vinyl clad steel (L)

Impact resistant.

Stainless steel wrapper (S)

With ABS plastic alcove. At additional cost.

Waste options

McAlpine 32 mm drain

10 L waste container

Waste water pump

Flexi-Guard® Safety bubbler


Incorporates an infused, antimicrobial, pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact.

Not required

Vandal-resistant bubbler


One-piece, heavy duty construction.

Not required


Not required

Replacement filter, 51300C

Single pack.

Replacement filter, 51300C_3PK

Three pack.

Replacement filter, 51300C_12PK

Twelve pack.

Replacement filter, 51300C_24PK

Twenty-four pack.

Replacement filter, 51300C_48PK

Forty-eight pack.

Standard product features

Size (h x w x d):

975 x 454 x 473 mm.


32 kg.


  • Basin: Stainless steel.
  • Cooling unit: Copper tubing.




Wall mounted, fully recessed. Wall security brackets included.

Water temperature:



32 mm (1 1/4").

Rated power input:

370 W.

Nominal voltage:

230 V (50 Hz).

Product Options

Product reference:

Consult manufacturer for information on product variations.

Digital objects
PlatformCompatibleVersionCertified to
- 2 2.0
Revit 2016 2 2.0
Download now from NBS National BIM Library
