Elkay LZOOTL8WSS2KN - Bottle Filling Station

Verified by manufacturer 29 days ago

Water Refill Group Limited

Filtered refrigerated stainless steel bottle filling station with antimicrobial features and hands-free operation, serving two stations.

0333 335 6908 Website

Application

Used for providing chilled, clean potable drinking water in indoor commercial environments, serving two stations with hands-free bottle filling and drinking fountain functionality.

Description

The Elkay EZH2O® Bottle Filling Station is a quick and sanitary way to fill water bottles, helping to eliminate single-use plastic and promote sustainability. The self-contained water cooler and bottle filler is a space-saving ADA-compliant unit.

The innovative new bi-level design can be installed in either standard high-left/low-right configuration or reversed to meet the users installation needs.

Features and benefits:

  • Hands-Free operation with electronic bottle filler sensor and sensor bubbler activation.
  • Antimicrobial components help provide clean, stain- and odor-free surfaces.
  • Filtered water with standard NSF/ANSI certified filter for lead, microplastics, cysts, and chlorine taste and odor reduction.
  • Real Drain System eliminates standing water.
  • Green Ticker informs users of the number of 20 oz. plastic water bottles saved from waste.
  • Laminar flow provides clean fill with minimal splash.
  • Wall mount design for indoor use serving two stations.
  • Chilling capacity of 8.0 gallons per hour at 50° F drinking water.
  • Visual filter monitor with LED filter status indicator.
  • Flexi-Guard® Safety bubbler included.
  • WRAS-approved.

General information

Color

Silver

Finish

Stainless steel

Material

Stainless steel

Shape

Rectangle

Length

483 mm

Width

908 mm

Height

1132 mm

Warranty description

Five year

Guidance for specification option:

Five-year limited warranty on the refrigeration system of the unit.

One year

Guidance for specification option:

Electrical components and water system are warranted for 12 months from date of installation.

Manufacturer guidance

Warranty pertains to drinking water applications only. Non-drinking water applications are not covered under warranty.

Uniclass

Pr_40_70_15_96 Water coolersPrimary
Pr_40_70_22_71 Refreshment dispensers

CAWS

N11/360 Appliances

N11/40 Appliances

N12/340 Appliances

N12/340 Appliances

N13/379 Drinking fountains

SKU Code

LZOOTL8WSS2KN

Sustainability data

Country of product manufacture

United States

Material

Stainless steel

Literature

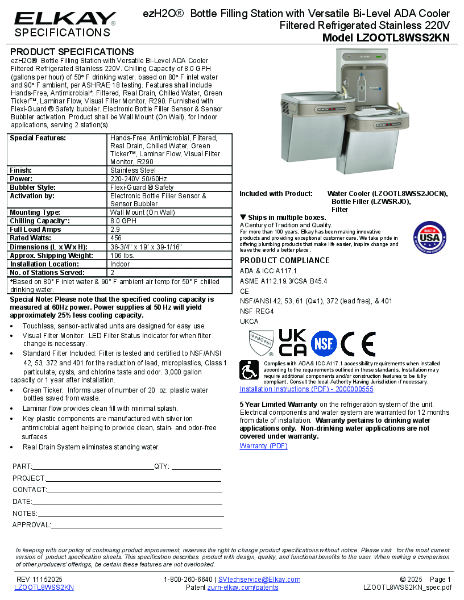

Elkay LZOOTL8WSS2KN Technical Data Sheet

Elkay LZOOTL8WSS2KN Technical Data Sheet

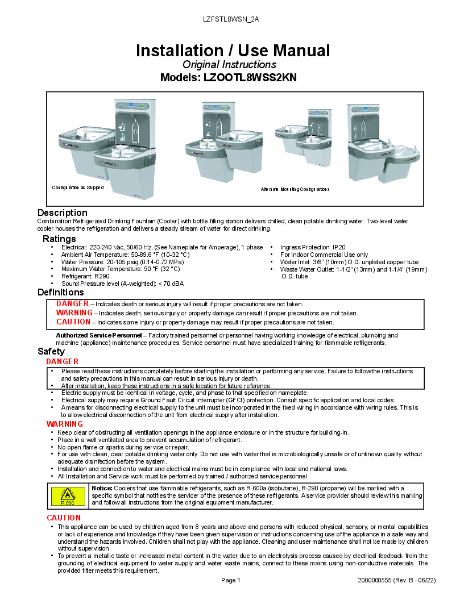

Elkay LZOOTL8WSS2KN Installation / User Manual

Elkay LZOOTL8WSS2KN Installation / User Manual
