Elkay EZS8SF2J0 - Drinking fountain packages

Elkay EZS8SF2J0 - Drinking fountain packages

MIW Water Cooler Experts Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Indoor, Wall Mounted Drinking Fountain with Glass Filler - WRAS Approved.

Jump to:
+44 (0)1207 572 000 www.miw.co.uk

Description

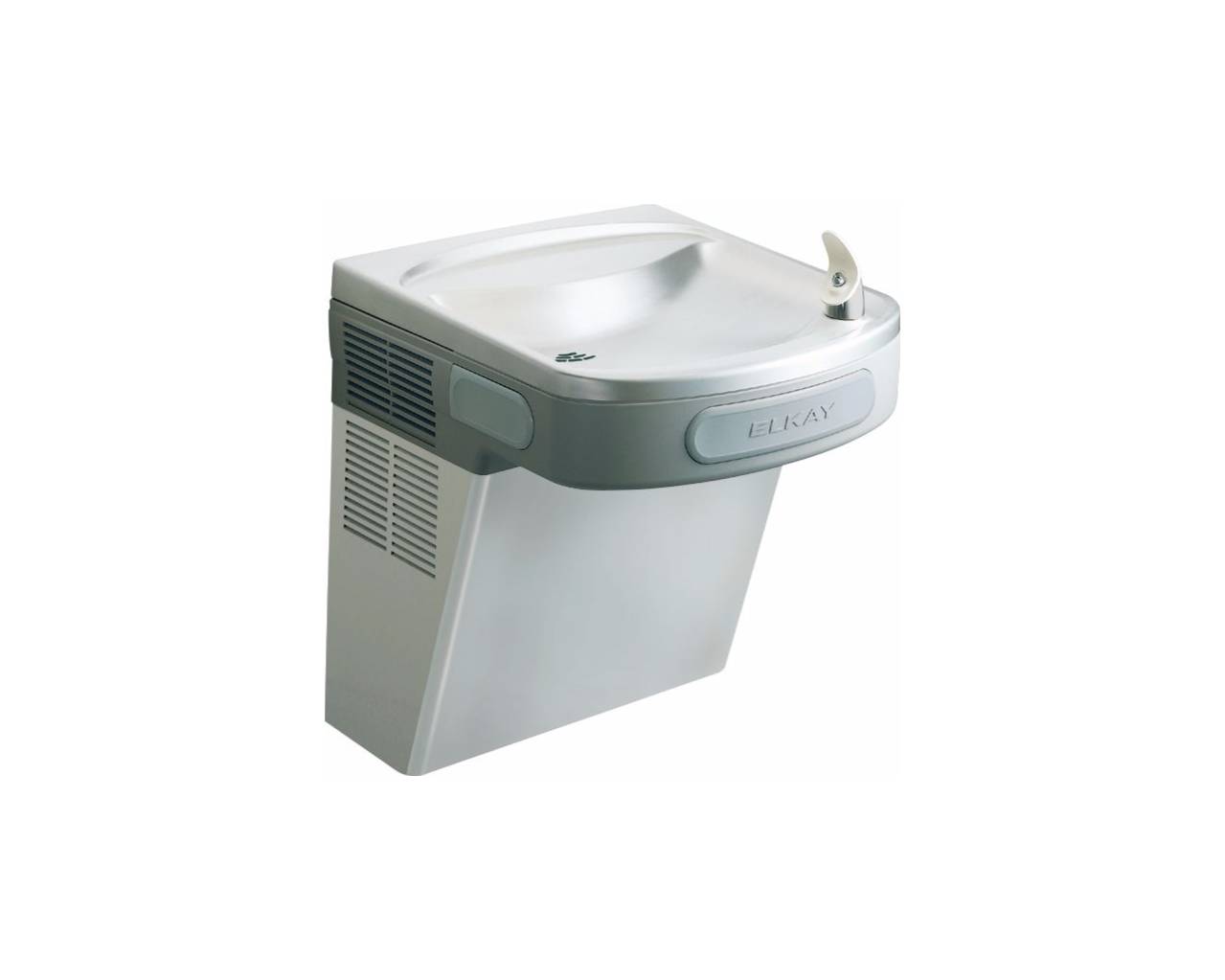

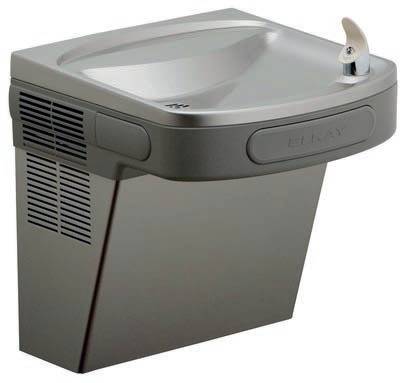

Wall mounted water cooler with glass filling tap, stainless steel. Non-filtered, refrigerated.

Features and benefits:

  • Easy-touch push bar activation.
  • Deep basin minimizes splashing.
  • Comes with integral drain.
  • Flexi-Guard® safety bubbler prevents accidental mouth injuries and is antimicrobial.
  • Valve with built-in flow regulator provides a constant stream from 20 to 105 psi water pressure.
  • Fully insulated with EPS foam that meets UL requirements for self-extinguishing material.
  • Integrated advanced pressure cooling system comes with EZS4 and EZS8 versions, with single type compressor and sealed-in lifetime lubrication.
  • Refrigerated EZS8 model offers a chilling capacity of 30 litres/ hour.
  • Suitable for indoor use.
  • Lead free.
  • Factory set, adjustable temperature thermostat.
  • Complies with the requirements of ADA (Americans with Disabilities Act) and the Equality Act 2010.
  • WRAS and BREEAM approved, and Greenspec® listed.
  • Manufacturer provides a five-year limited warranty on any refrigeration systems; one-year warranty on electrical components and water system.
  • Meets the requirements of the Safe Drinking Water Act.

General information

Color

Silver

Features

Easy-touch push bar activation, Deep basin minimizes splashing, Comes with integral drain, Available with Flexi-Guard® Safety bubbler or Vandal-resistant bubbler, Valve with built-in flow regulator provides a constant stream from 20 to 105 psi water pressure, Integrated advanced pressure cooling system comes with EZS4 and EZS8 versions, with single type compressor and sealed-in lifetime lubrication, Suitable for indoor use, Lead free, Complies with the requirements of ADA (American’s with Disabilities Act), Five-year warranty, WRAS and BREEAM approved, and GreenSpec® listed,

Finish

Cooler cabinet available as Light Gray Granite Vinyl Clad Steel or Stainless Steel

Material

StainlessSteel

Size

484 X 467 X 503 mm

WarrantyDescription

5 Year Limited Warranty on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation

Uniclass 2015

Pr_40_70_15_96 Water coolersPrimary

CAWS

N13/379 Drinking fountains

Specification data - Water coolers

Product Reference

EZ(S)DSF2JO

Non-refrigerated. Requires outlet for power cord.

EZ4SF2JO

Refrigerated. With self-closing, easy-touch push bar control on the front only.

EZ8SF2JO

Refrigerated. With self-closing, easy-touch push bar control on the front only.

EZS4SF2JO

Refrigerated. With self-closing, easy-touch push bar control on the front and sides.

EZS8SF2JO

Refrigerated. With self-closing, easy-touch push bar control on the front and sides.

Filtration

Required

Consult manufacturer for information.

Not required

Cooler cabinet finish

Not required

For EZ(S)DSF2JO.

Light grey granite vinyl clad steel (L)

Impact resistant.

Stainless steel wrapper (S)

With ABS plastic alcove. At additional cost.

Flexi-Guard® Safety bubbler

Required

Incorporates an infused antimicrobial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact.

Not required

Vandal-resistant bubbler

Required

One-piece, heavy duty construction.

Not required

Glass filler

Required

Requires factory preparation. At additional cost.

Not required

Standard product features

Size (h x w x d):

525 x 442 x 473 mm.

Weight:

26.3 kg.

Material:

Body and basin: Stainless steel.

Finish:

Satin.

Fixing:

Wall mounted. Wall security brackets included.

Water temperature:

3–10°C.

Drain:

32 mm (1 1/4").

Rated power input:

370 W.

Nominal voltage:

230 V (50 Hz).

Digital objects

Platform Compatible Version Certified to
IFC
-

2

2.0
Revit

Revit 2016

2

2.0
Download now from NBS National BIM Library

Third party certifications

  • WQA: Certificate: NSF/ANSI 61 and 372
  • WRAS: Certificate: 1707082
  • UL: Certificate: 399
  • CAN/ CSA: Certificate: 22.2 No. 120
