Elite System 53fr

Description

All Euroclad products are manufactured under a Quality Management System accredited to ISO 9001 and an Environmental Management System accredited to ISO 14001. Elite systems are completely non-combustible and recyclable, with the option of a 12 or 25 year Guarantee ; the system must be installed by a Euroclad Elite Systems recommended installer.

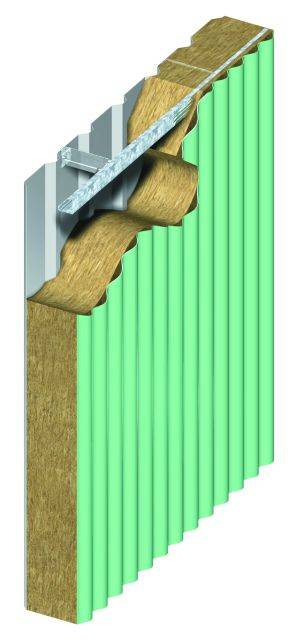

Elite System 53fr is fast and economical vertical clad walling for light industry, retail, dry sports and leisure buildings giving maximum 4 hours fire resistance.

Elite System 53 non-fire rated version is also available.

General information

CAWS

H31/10 Metal

H31/120 Metal

Specification data

Product Reference

Elite System 53fr

External sheet

-

Type

13.5/ 3 Sinusoidal profile, 0.5 mm

13.5/ 3 Sinusoidal profile, 0.7 mm

Finish

Corus Colorcoat HPS200®

Corus Colorcoat Prisma®

Colour

___

Vapour control membrane

Monarflex VB

Procheck 500

Not required

Accessories

Flashings, finish and colour matching external sheet

Not required

Standard product features

External sheet cover width:

990 mm.

External Sheet Colours:

From Corus Standard Range, Repertoir and through consultation with Euroclad.

External Sheet Colours:

From Corus Standard Range, Repertoir and through Consultation with Euroclad.

Liner panel:

Euroclad 19/1000 0.4 mm steel, standard factory finish.

Spacers (0.30 U-value):

Eurobar 140 mm high.

Breather membrane:

Euroclad does not recommend a breather membrane in Elite systems.

Vapour control membrane:

Euroclad recommend the use of A Proctor Procheck 500 or Monarflex VB with a minimum vapour resistance of 500 MNs/g together with Probond RG Tape or Monobond sealant with vapour resistivity equal to the vapour control layer.

System U-value:

  • 0.30 W/m²°C: 150 mm Rockwool Cladding Roll (0.040 W/m²K).
  • Alternative spacer/ insulation combinations are available to achieve greater U-values.

Fire rating (maximum):

4 hours fire resistance.

Sheeting rails:

  • Must be supplied with slotted holes to assist thermal expansion.
  • Nuts and bolts/ steel and plastic washers: 16 mm diameter.

Acoustic performance (150 mm Rockwool/ 0.5 mm steel):

SRi = 41dB - contact Euroclad for detail.

Product Options

External sheets:

Type:

  • Euroclad 13.5/3 0.5 mm or 0.7 mm steel.

Coating:

  • Steel (Corus Colorcoat): HPS200® /Prisma® - a Corus Confidex® guarantee is given with these coatings.

Accessories:

Flashings, rainwater goods, fabricated details and trims can also be provided by Euroclad who can also recommend suppliers of compatible rooflights and fall arrest systems.
