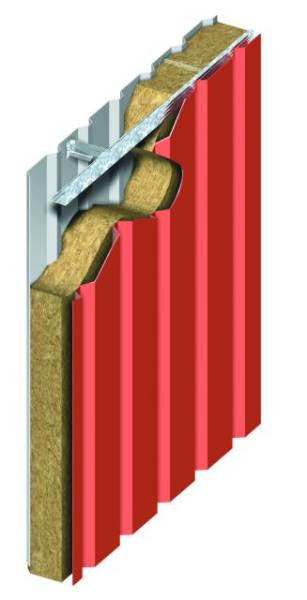

Elite System 52fr

External sheet cover width:

1000 mm.

External Sheet Colours:

From Corus Standard Range, Repertoir and through Consultation with Euroclad.

Liner panel:

Euroclad 19/1000 0.4 mm steel, standard factory finish.

Spacers:

• 0.30 U-value: Eurobar 140 mm high.

• 0.35 U-value: Eurobar 120 mm high.

Breather membrane:

Euroclad does not recommend a breather membrane in Elite systems.

Vapour control membrane:

Euroclad recommend the use of A Proctor Procheck 500 or Monarflex VB with a minimum vapour resistance of 500 MNs/g together with Probond RG Tape or Monobond sealant with vapour resistivity equal to the vapour control layer.

Fire rating (maximum):

Sheeting rails:

• Must be supplied with slotted holes to assist thermal expansion.

• Nuts and bolts/ steel and plastic washers: 16 mm diameter.

4 hours fire resistance

Acoustic performance (120 mm Rockwool/ 0.5 mm steel):

SRi = 40dB - contact Euroclad for details.

External sheets:

• Euroclad MW5CS 0.5 mm or 0.7 mm steel.

External sheet coating:

• Steel (Corus Colorcoat): HPS200®/ Prisma® - a Corus Confidex® guarantee is given with these coatings.

System U-value:

• 0.30 W/m²°C: 150 mm Rockwool Cladding Roll (0.040 W/m²K).

• 0.35 W/m²°C: 120 mm Rockwool Cladding Roll (0.040 W/m²K).

• Alternative spacer/ insulation combinations are available to achieve greater U-values.

Accessories:

Flashings, rainwater goods, fabricated details and trims can also be provided by Euroclad who can also recommend suppliers of compatible rooflights and fall arrest systems.
