Elite System 51fr

Name: Elite System 51fr
Brand: 4YG6aBrhENAFUuhjiTfeth
SKU: 3Zg1j6thjEJDmgcUUgBT1W

Euroclad Group Ltd

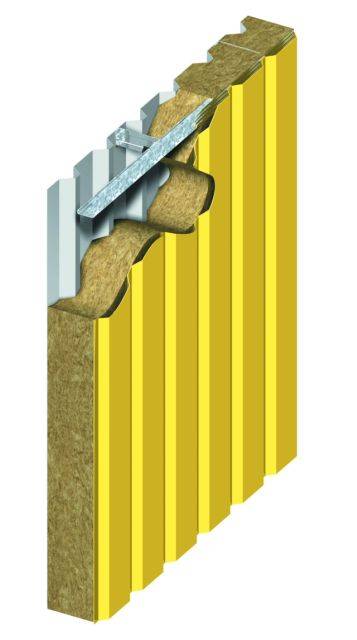

Fire rated vertical cladding wall system.

Jump to:

+44 (0)2922 010101 www.eurocladgroup.com

Description

All Euroclad products are manufactured under a Quality Management System accredited to ISO 9001 and an Environmental Management System accredited to ISO 14001. Elite systems are completely non-combustible and recyclable, with the option of a 12 or 25 year Guarantee; the system must be installed by a Euroclad Elite Systems recommended installer.

Elite System 51fr is fast and economical vertical clad walling for light industry, retail, dry sports and leisure buildings giving maximum 4 hours fire resistance.

Elite System 51 non-fire rated version is also available.

General information

CAWS	H31/10 Metal H31/120 Metal

Specification data

Product Reference	Elite System 51fr
External sheet	-
Type	32/ 1000 Reverse profile, 0.5 mm 32/ 1000 Reverse profile, 0.7 mm
Finish	Corus Colorcoat HPS200® Corus Colorcoat Prisma®
U-value	0.30 W/m²°C 0.35 W/m²°C
Vapour control membrane	Monarflex VB Procheck 500 Not required
Accessories	Flashings, finish and colour matching external sheet Not required

Standard product features

Liner panel:

Euroclad 19/1000 0.4 mm steel, standard factory finish.

Spacers:

0.30 U-value: Eurobar 140 mm high.

0.35 U-value: Eurobar 120 mm high.

Breather membrane:

Euroclad does not recommend a breather membrane in Elite systems.

Vapour control membrane:

Euroclad recommend the use of A Proctor Procheck 500 or Monarflex VB with a minimum vapour resistance of 500 MNs/g together with Probond RG Tape or Monobond sealant with vapour resistivity equal to the vapour control layer.

Fire rating (maximum):

4 hours fire resistance.

Sheeting rails

Must be supplied with slotted holes to assist thermal expansion.

Nuts and bolts/ steel and plastic washers: 16 mm diameter.

Acoustic performance (120 mm Rockwool/ 0.5 mm steel):

SRi = 40dB - contact Euroclad for details.

Product Options

External sheets:

Euroclad 32/1000R 0.5 mm or 0.7 mm steel.

External sheet coating:

Steel (Corus Colorcoat): HPS200® /Prisma® - a Corus Confidex® guarantee is given with these coatings.

System U-value:

0.30 W/m²°C: 150 mm Rockwool Cladding Roll (0.040 W/m²K).

0.35 W/m²°C: 120 mm Rockwool Cladding Roll (0.040 W/m²K).

Alternative spacer/ insulation combinations are available to achieve greater U-values.

Accessories:

Flashings, rainwater goods, fabricated details and trims can also be provided by Euroclad who can also recommend suppliers of compatible rooflights and fall arrest systems.
