Elite System 51

Name: Elite System 51
Brand: 4YG6aBrhENAFUuhjiTfeth
SKU: x9w45b26K1Vs8pNmtcVish

Euroclad Group Ltd

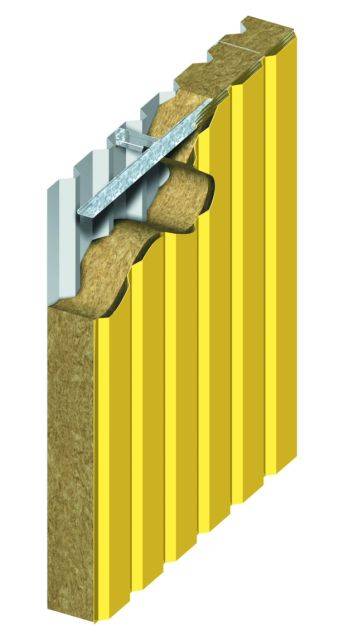

Vertical cladding wall system.

Jump to:

+44 (0)2922 010101 www.eurocladgroup.com

Description

All Euroclad products are manufactured under a Quality Management System accredited to ISO 9001 and an Environmental Management System accredited to ISO 14001. Elite systems are completely non-combustible and recyclable, with the option of a 12 or 25 year Guarantee; the system must be installed by a Euroclad Elite Systems recommended installer.

Elite System 51 is fast and economical vertical clad walling for light industry, retail, dry sports and leisure buildings.

Elite System 51fr fire rated version is also available.

General information

CAWS	H31/10 Metal H31/120 Metal

Specification data

Product Reference	Elite System 51
External sheet	-
Type	32/ 1000 Reverse profile, 0.5 mm 32/ 1000 Reverse profile, 0.7 mm
Finish	Corus Colorcoat HPS200® Corus Colorcoat Prisma®
Colour	___
Insulation	-
Type	Knauf Factory Clad Rockwool Cladding Roll
U-value	0.30 W/m²°C 0.35 W/m²°C
Vapour control membrane	Monarflex VB Procheck 500 Not required
Accessories	Flashings, finish and colour matching external sheet Not required

Standard product features

External sheet cover width:

1000 mm

External Sheet Colours:

From Corus Standard Range, Repertoir and through Consultation with Euroclad.

Liner panel:

Euroclad 19/1000 0.4 mm steel, standard factory finish.

Spacers:

0.30 U-value: Eurobar 140 mm high.

0.35 U-value: Eurobar 120 mm high.

Breather membrane:

Euroclad does not recommend a breather membrane in Elite systems.

Vapour control membrane:

Euroclad recommend the use of A Proctor Procheck 500 or Monarflex VB with a minimum vapour resistance of 500 MNs/g together with Probond RG Tape or Monobond sealant with vapour resistivity equal to the vapour control layer.

Acoustic performance (120 mm Rockwool/ 0.5 mm steel):

SRi = 40dB - contact Euroclad for details.

Product Options

External sheets:

Type:

Euroclad 32/1000R 0.5 mm or 0.7 mm steel.

Coating:

Steel (Corus Colorcoat): HPS200® /Prisma® - a Corus Confidex® guarantee is given with these coatings.

System U-value:

0.30 W/m²°C: 140 mm Knauf Factory Clad or 150 mm Rockwool Cladding Roll (both 0.040 W/m²K).

0.35 W/m²°C: 120 mm Knauf Factory Clad or Rockwool Cladding Roll (both 0.040 W/m²K).

Alternative spacer/ insulation combinations are available to achieve greater U-values.

Accessories:

Flashings, rainwater goods, fabricated details and trims can also be provided by Euroclad who can also recommend suppliers of compatible rooflights and fall arrest systems.
