QA Certificate
Certificate type
Secured By Design
Certificate type

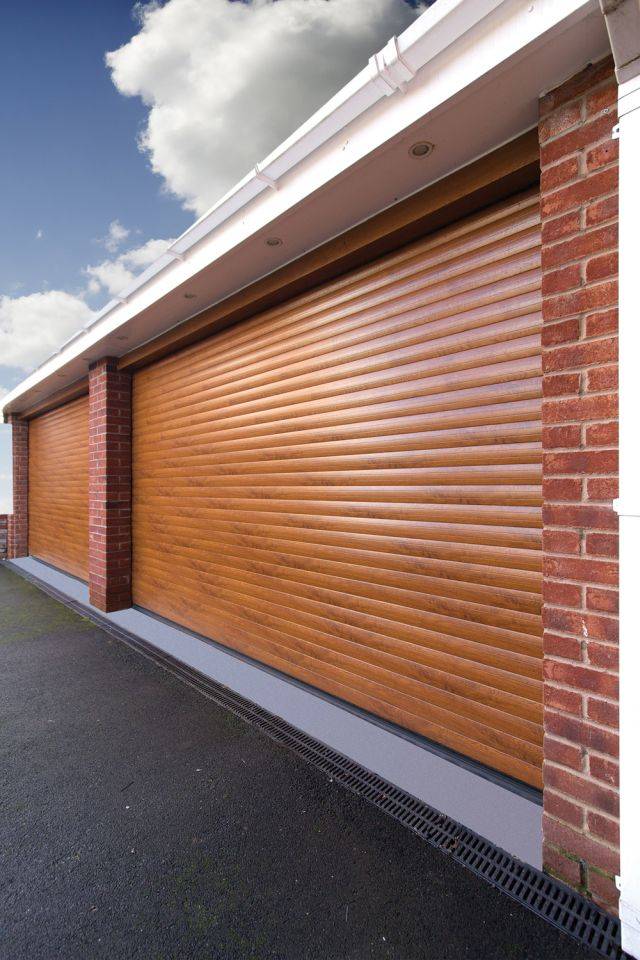

LPCB SR1 insurance approved insulated aluminium roller garage door.
High security domestic and commercial garages.
LPCB SR1 insurance approved insulated aluminium roller garage door offering a superior level of security. It is a double skinned insulated aluminium garage door with 77 mm high slats, providing warmth, security and style. It includes a Somfy motor and controls making operation effortless. Each door is made to measure and can be customized with a large selection of colours and wood laminate effect finishes. The elite can span up to 5.5 m in width and an area up to 16 m².
Applications:
High security domestic and commercial garages.
Size | As drawing Available up to 5500 x 3640 (w x h). |
Uniclass 2015 | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product Reference | Elite Roller Garage Door |
Size | As drawingAvailable up to 5500 x 3640 (w x h). |
Colour | - |
Slats | Anthracite, RAL 7016Polyester powder coated. Beige, BS 08B17Polyester powder coated. Black, RAL 9005Polyester powder coated. Brown, RAL 8019Polyester powder coated. Moss green, RAL 6005Polyester powder coated. Light grey, RAL 7038Polyester powder coated. Moss green, RAL 6005Polyester powder coated. Painted oakPolyester powder coated. Painted rosewoodPolyester powder coated. Painted teakPolyester powder coated. Red, RAL 3004Polyester powder coated. Sage green, RAL 6021Polyester powder coated. Silver, RAL 9006Polyester powder coated. Steel blue, RAL 5011Polyester powder coated. White, RAL 9016Polyester powder coated. Laminate golden oakWood laminate. Laminate Irish oakWood laminate. Laminate mahoganyWood laminate. Laminate rosewoodWood laminate. |
Enclosure | BrownStandard colour. WhiteStandard colour. BSInsert colour requirement. RALInsert colour requirement. |
Guide channels | BrownStandard colour. WhiteStandard colour. BSInsert colour requirement. RALInsert colour requirement. |
Accessories | NoneExternal override facilityVision slats |
Standard product features | Arrangement: Vertical, face fixed. Slats: 20 mm thick aluminium with foam insulating core, 77 mm in height. Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels: 150 mm deep extruded aluminium with brush seal. To comply with LPCB certification, the guide channel must be installed 30 mm from the opening, allowing 180 mm from the opening edge to the back of the guide channel. Operation: Somfy motor with manual override facility, crank handle and safety brake. Includes Somfy control panel with safety sensor, courtesy light, alarm and two key fobs. |
Product Options | Housing size: Dependent on height.
|
